Routing Coupon Printer Cables

The Coupon Printer Cables are routed from bottom to top. To route the cables, follow these steps:

1. Install the Coupon Printer on the Coupon Printer Pole Mount assembly. For more information, refer to Installing Coupon Printer Pole Mount Assembly.
2. Remove the Scanner/Scale. For more information, refer to the NCR FastLane SelfServ™ Checkout (7360) Hardware Service Guide (B005-0000-2378).
3. Depending on the unit configuration, refer to the following:
   Note

   The Coupon Printer power supply is placed inside the Bagwell for units with Bagwells. For No-Bag units, the Coupon Printer power supply is placed outside the Core Cabinet.

   • No-Bag Unit.
   • Standard Unit.
   • Convertible Unit.

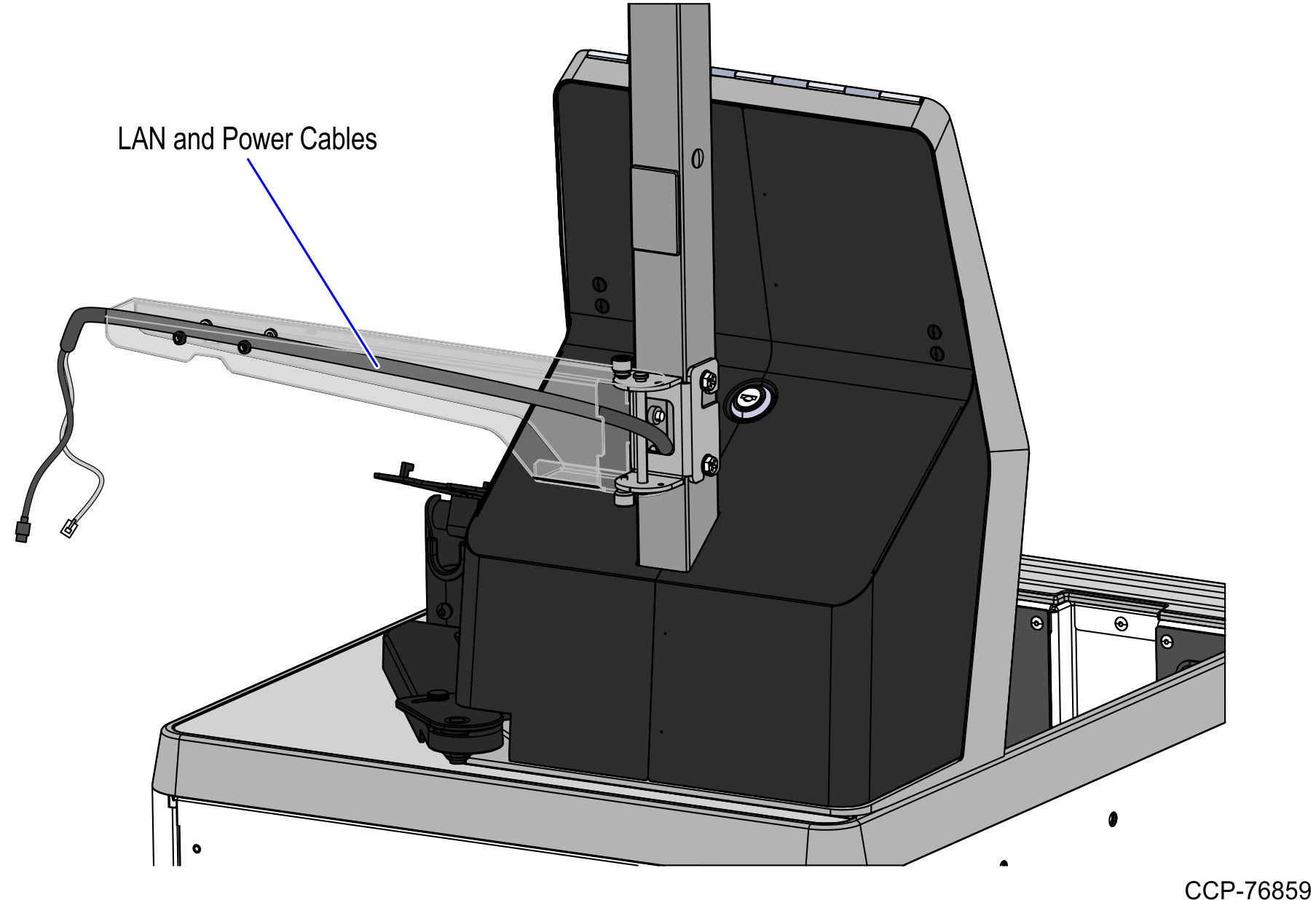

4. From the pole duct, route the cables through the Rotating Arm assembly, as shown in the image below.
   Note

   Secure the cables to a rectangular slot on the arm using a cable tie.
