No-Bag Unit

To route the Coupon Printer LAN and Power cables in a No-Bag unit, follow these steps:

Note

For No-Bag units, the Coupon Printer Power Supply is left outside the unit.

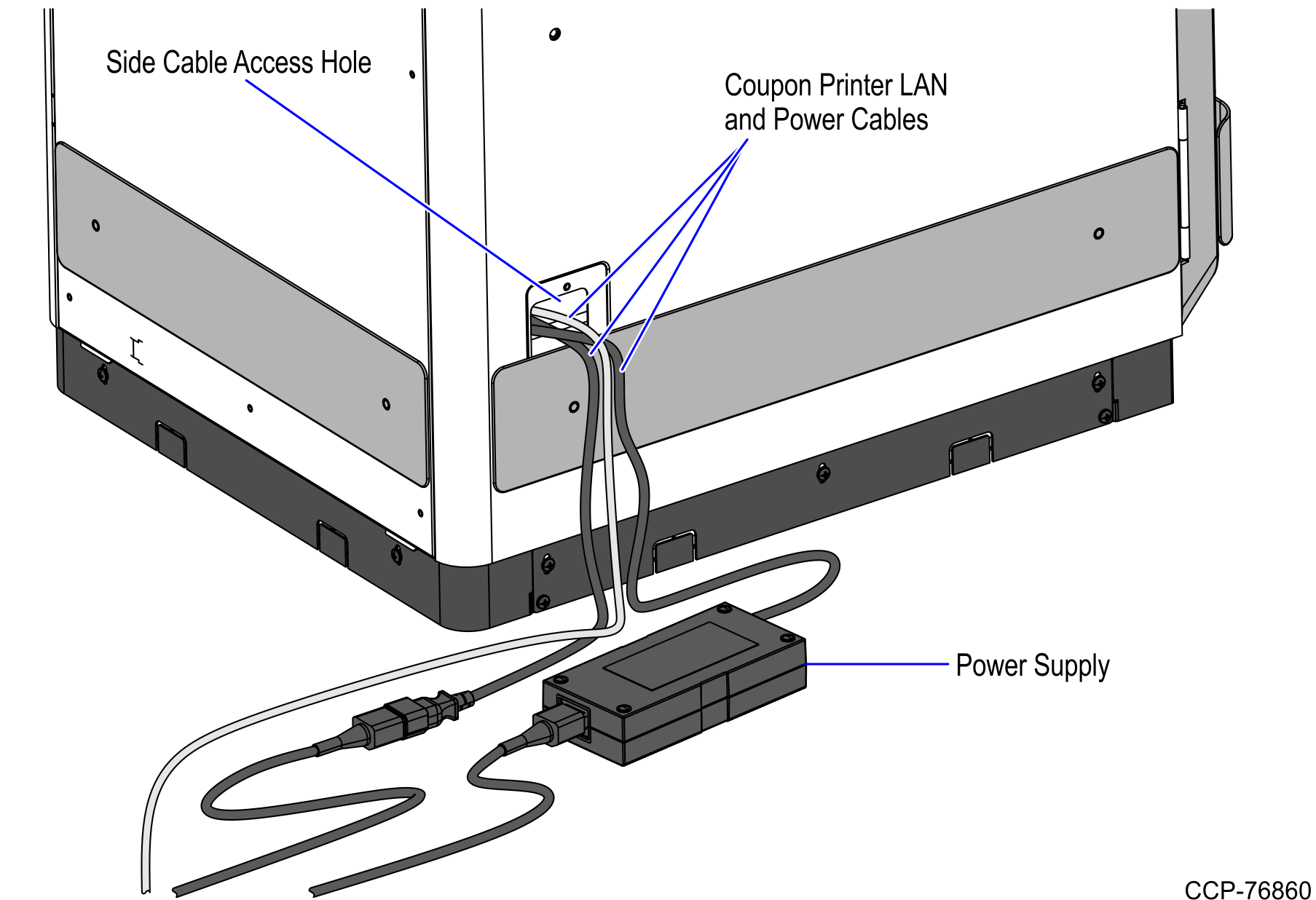

  1. From the side cable access hole, route the Coupon Printer LAN and Power cables into the Core Cabinet.

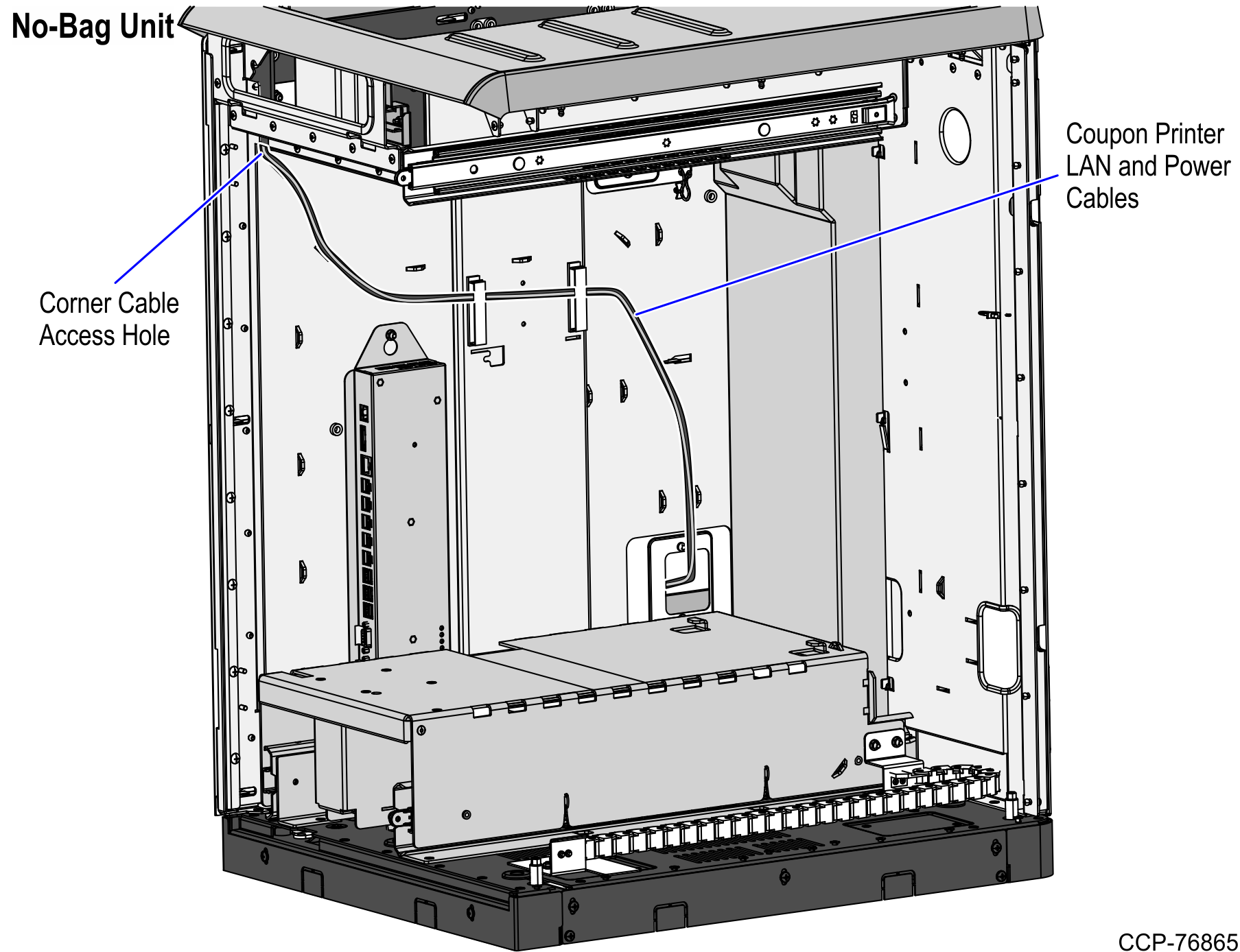

  2. Route the cables along the side wall up through the corner cable access hole along the floor of the Scanner/Scale bucket and into the pole duct.
    Note

    Use cable ties to secure the cables on corresponding lance bridges.
