Convertible Unit

To route the Coupon Printer LAN and Power cables in a Convertible unit, follow these steps:

1. From the back panel of the NCR Voyix FastLane SelfServ™ Checkout (7360) unit, lift and then pull the Conversion Handle.

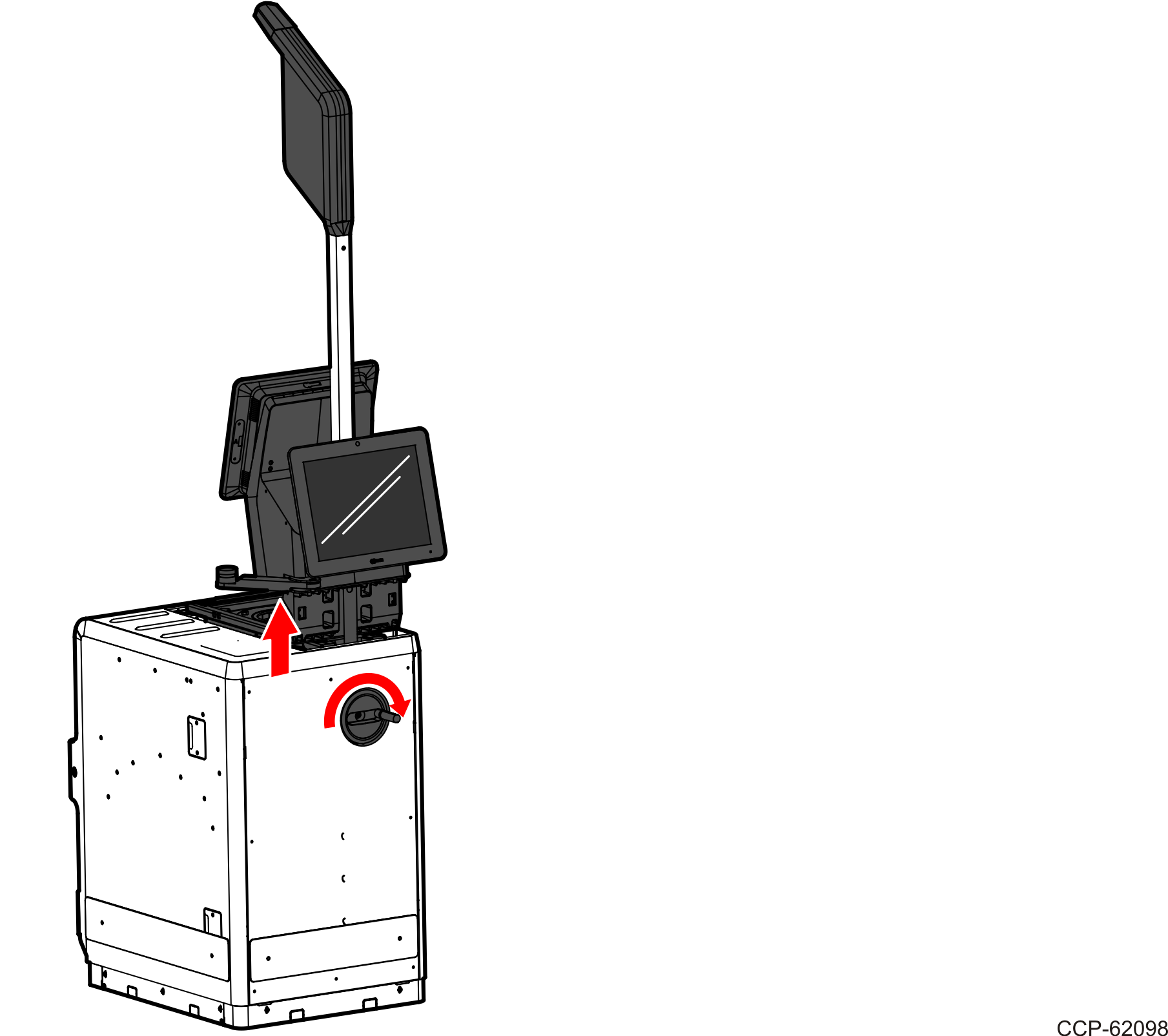

2. Rotate the Conversion Handle clockwise to raise the Tower assembly. Ensure that the Tower assembly is completely raised.



3. From the Bagwell, do the following:
   Note

   Use cable ties to secure the cables on corresponding lance bridges.

   • Route the Coupon Printer Power Supply cable out of the unit through the cable exit at the base of the Bagwell.
   • Route the Coupon Printer LAN and Power cables through the side cable access hole. Depending on the orientation of the unit, refer to the images below.

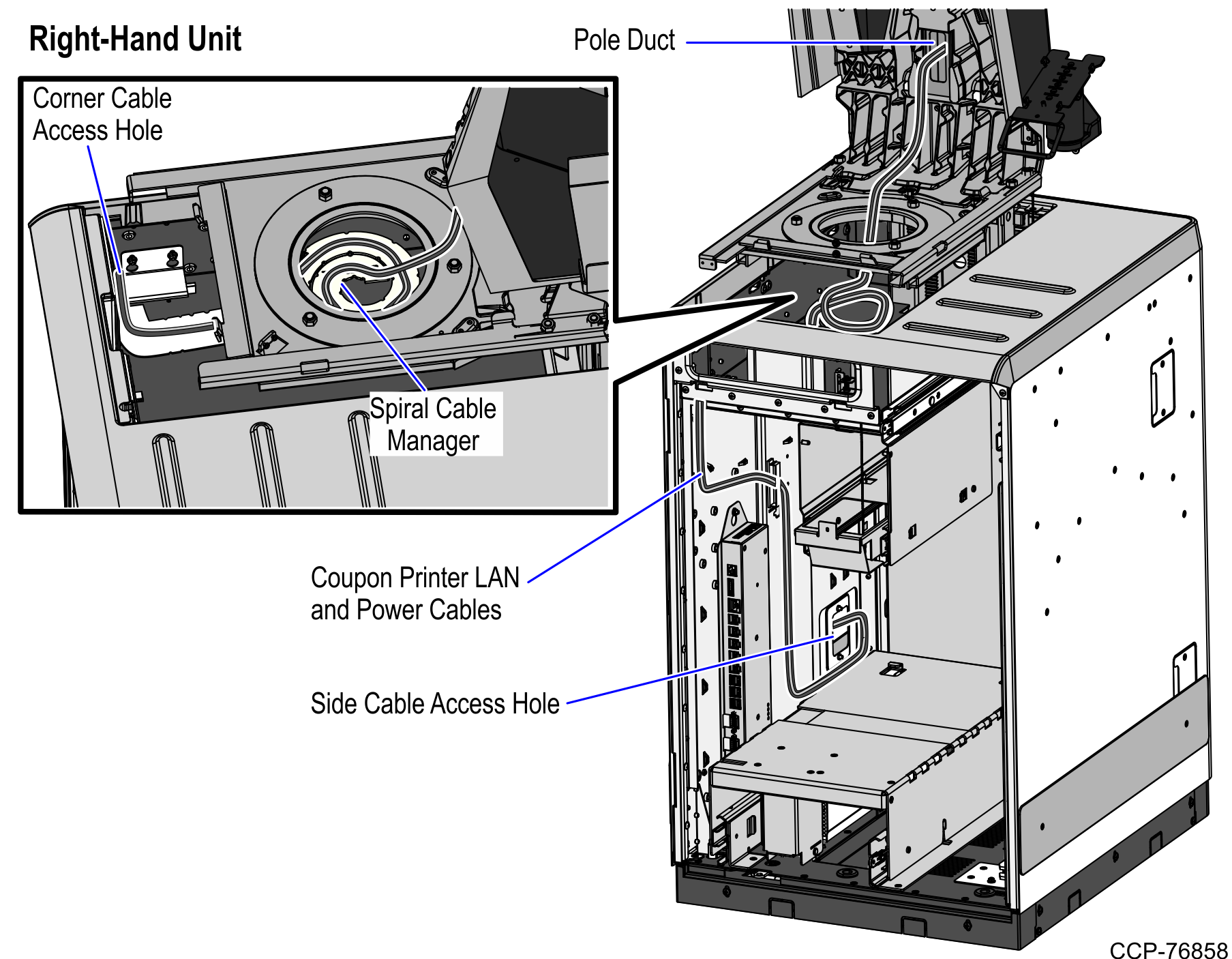

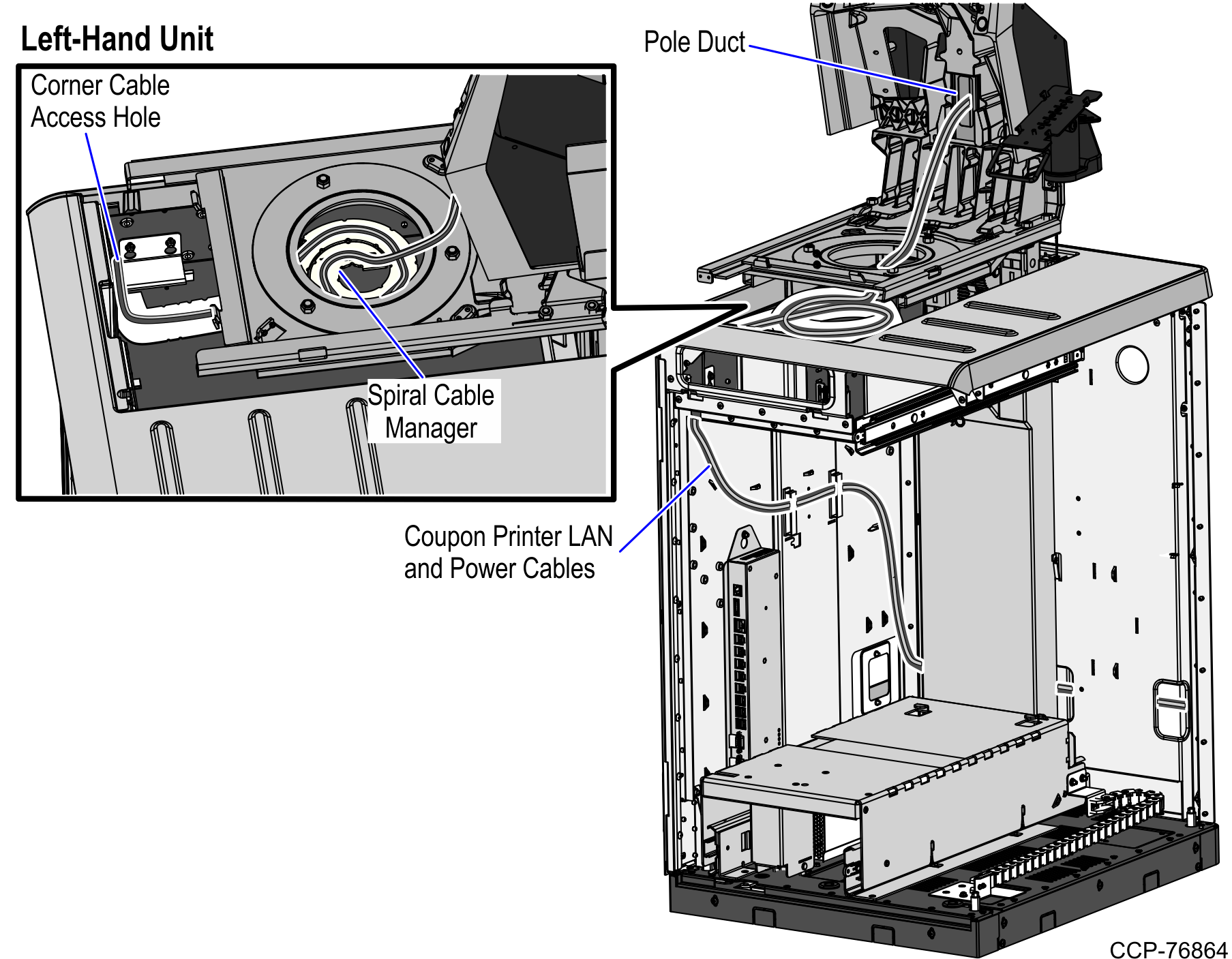

4. From the side cable access hole, route the cables along the side wall up through corner cable access hole along the spiral cable manager and into the pole duct. Depending on the orientation of the unit, refer to the images below:
   Note

   Use cable ties to secure the cables on corresponding lance bridges.
