Standard Unit
To route the Coupon Printer LAN and Power cables in a Standard unit, follow these steps:
Note
Use cable ties to secure the cables on corresponding lance bridges.
- From the Bagwell, do the following:
- Route the Coupon Printer Power Supply cable out of the unit through the cable exit at the base of the Bagwell.

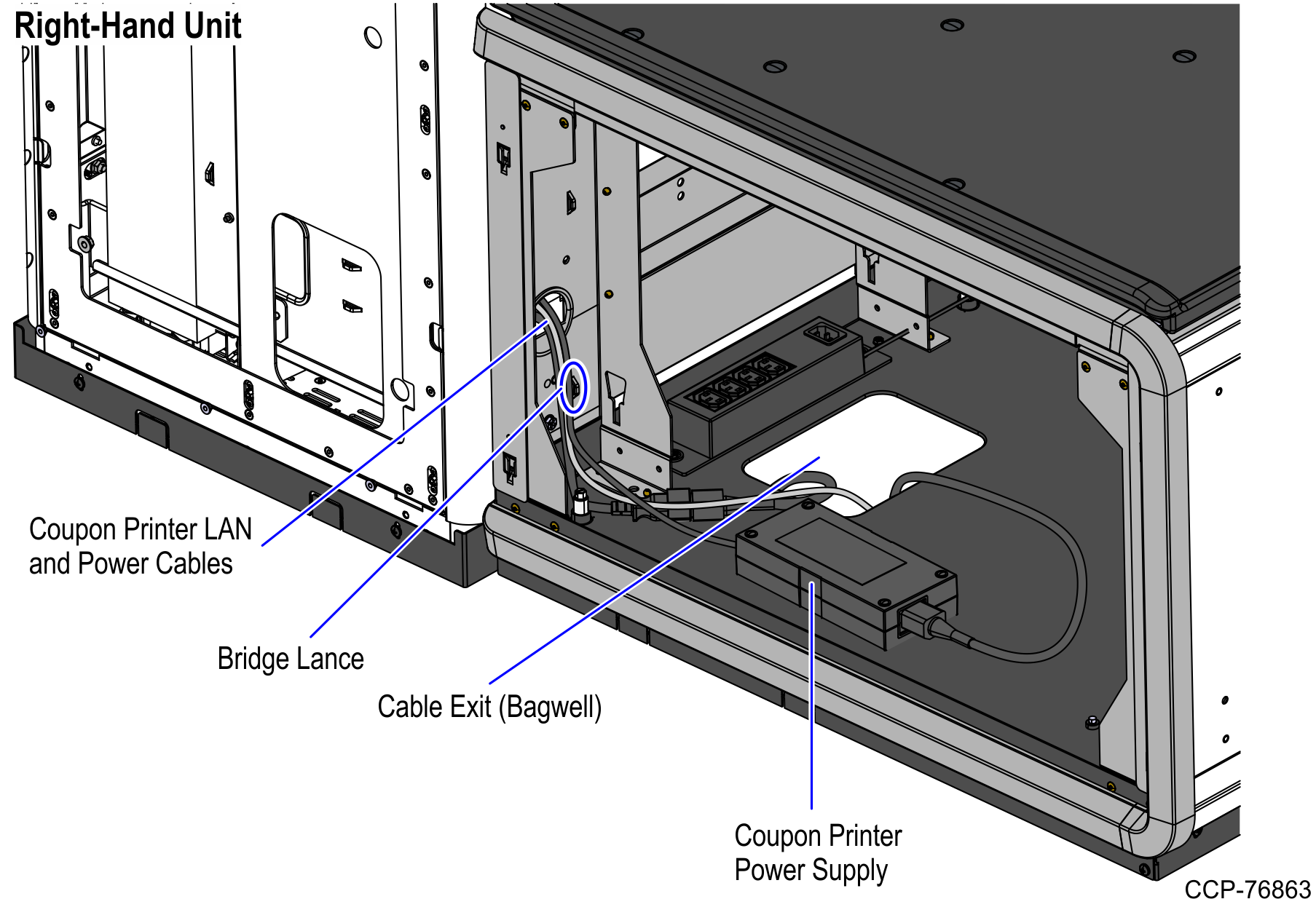

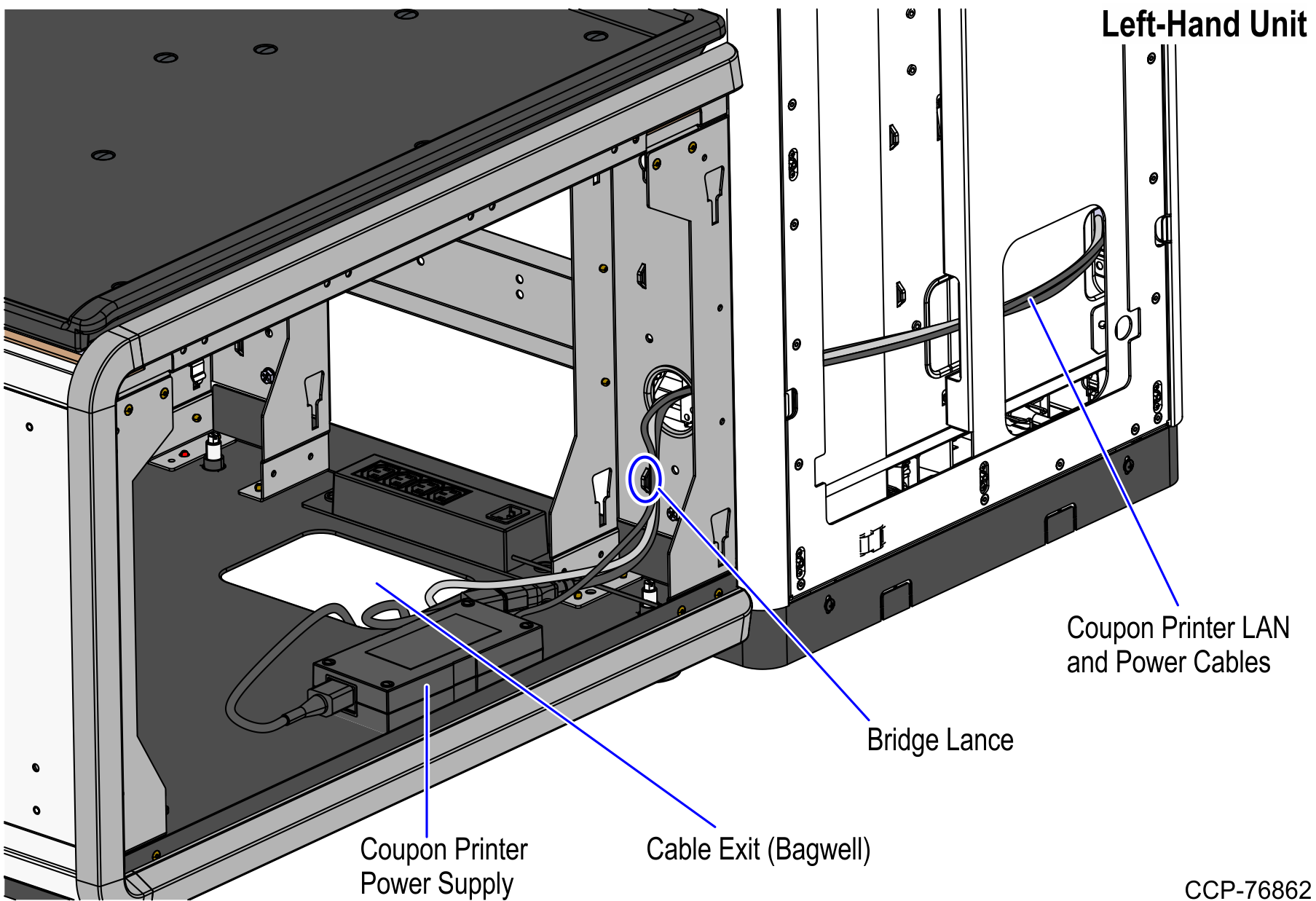

- Route the Coupon Printer LAN and Power cables through the side cable access hole. Depending on the orientation of the unit, refer to the images below.

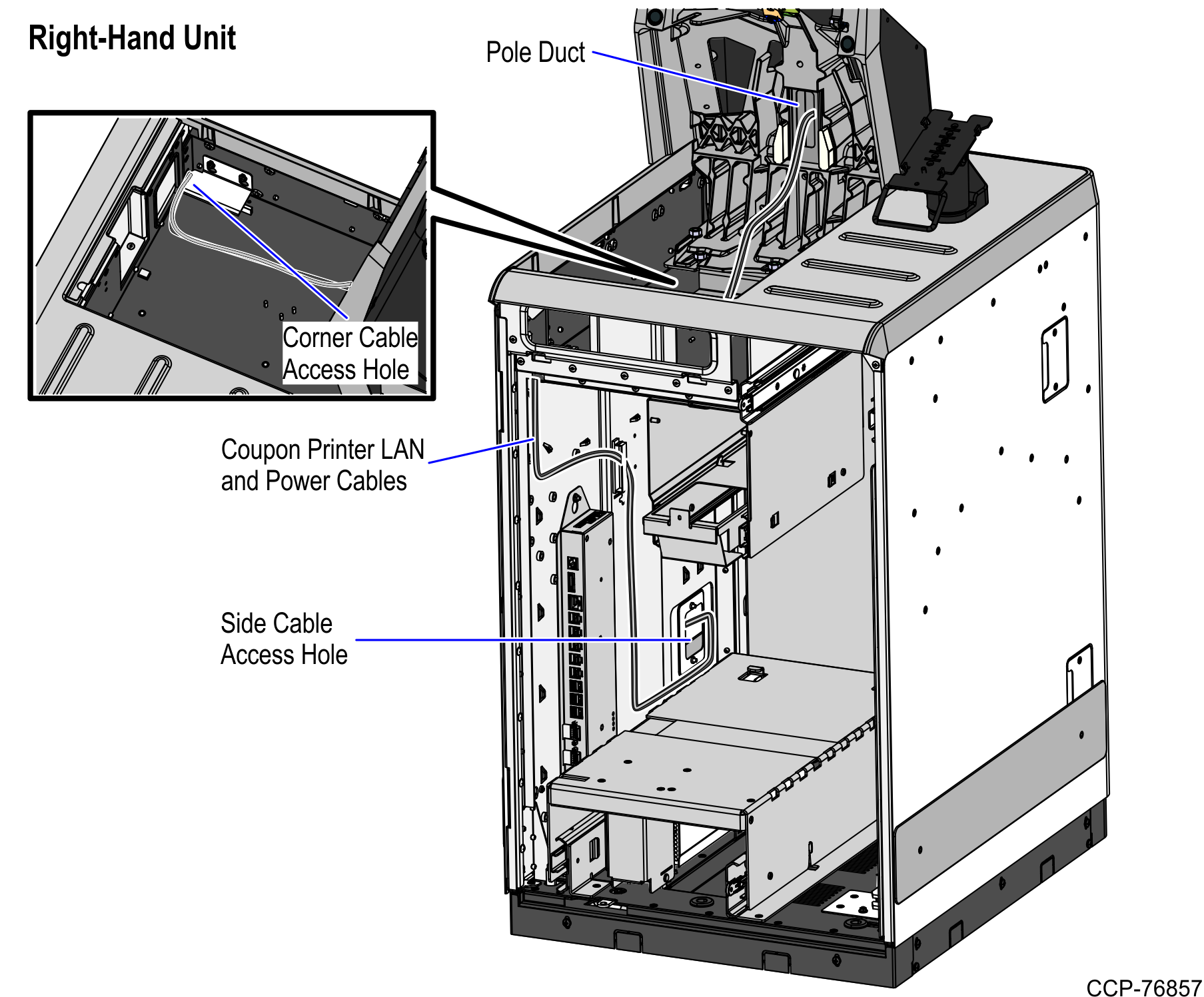

From the side cable access hole, route the cables along the side wall up through corner cable access hole along the floor of the Scanner/Scale bucket and into the pole duct. Depending on the orientation of the unit, refer to the images below.
