Installing the Tabletop Turntable Adapter Plate (With uNAV Base)

To install the Tabletop Turntable Adapter Plate, follow these steps:

1. Install the Adapter Plate on the 7709 Turntable using four (4) M8 flathead screws, as shown in the image below.



2. Open the Tower Cabinet. For more information, refer to Opening the Tower Cabinet.
3. Mount the 7372 Tabletop unit on the Adapter Plate by doing the following:
   1. Align the holes of the Tabletop unit to the studs on the Adapter Plate.

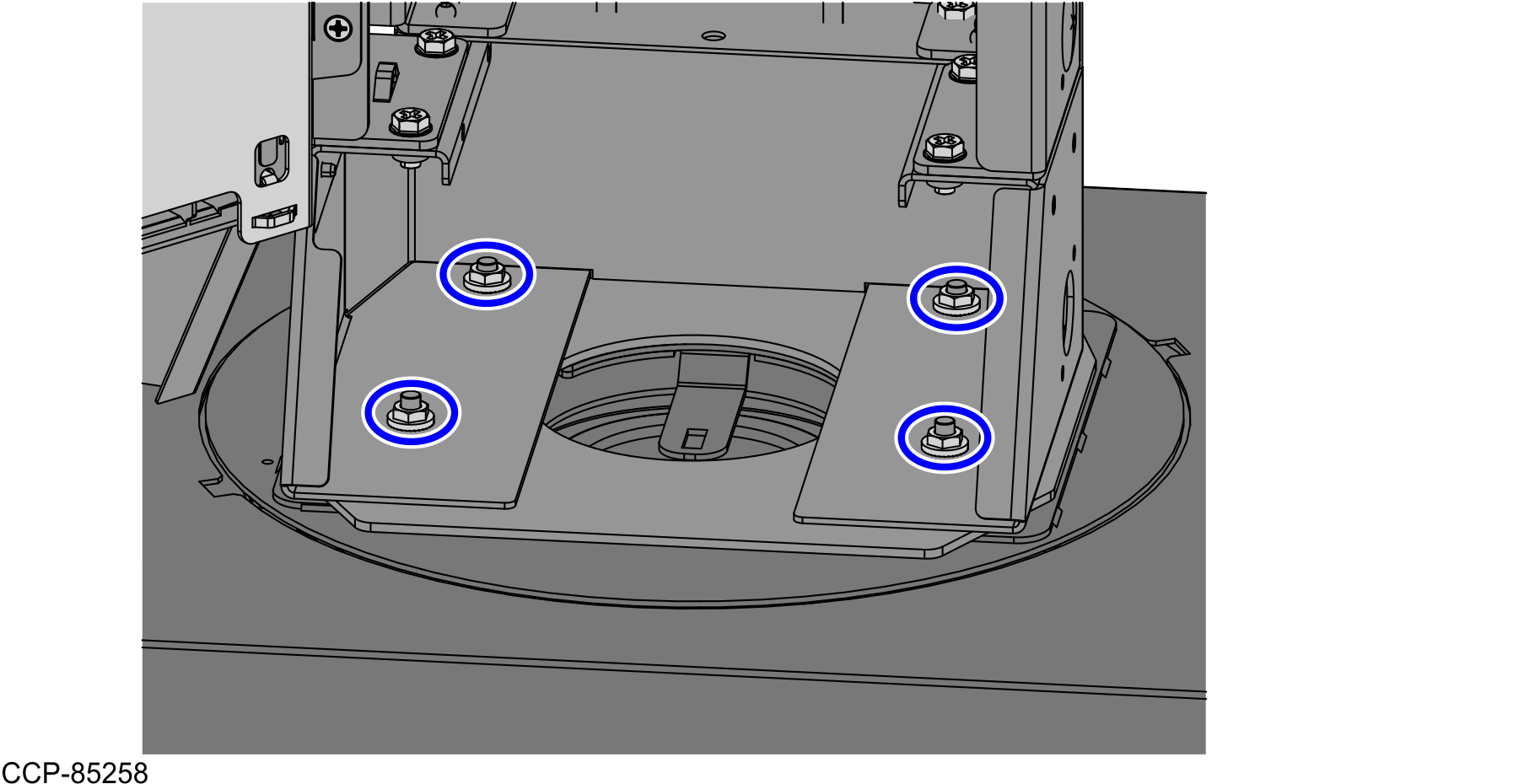

   2. Secure the unit together using four (4) M6 nuts, as shown in the image below.



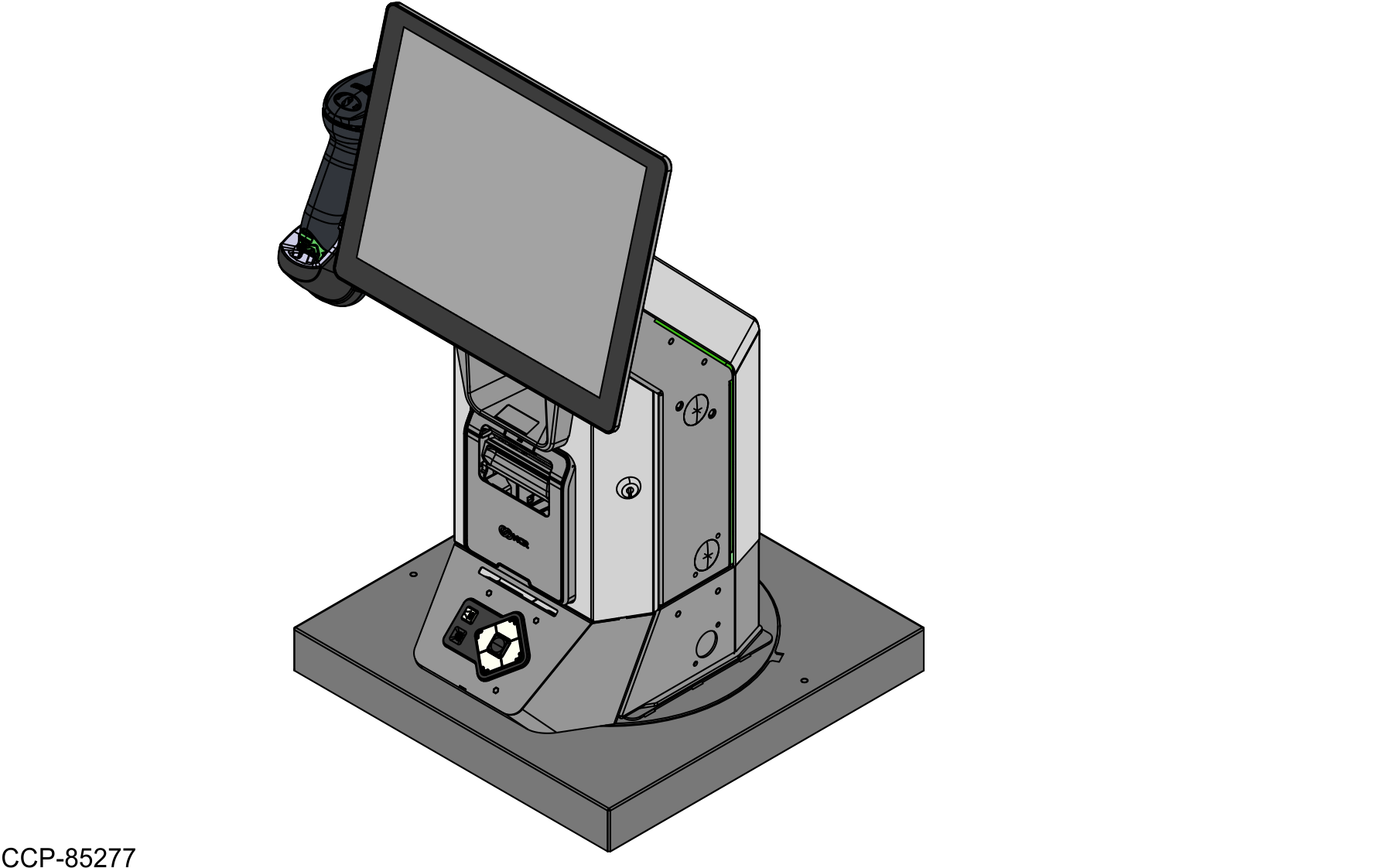

4. Install the Rear Cosmetic Cover. For more information, refer to Installing the Rear Cosmetic Cover.
5. Close the Tower Cabinet. For more information, refer to Closing the Tower Cabinet.
