Opening the Tower Cabinet

To open the Tower Cabinet, follow these steps:

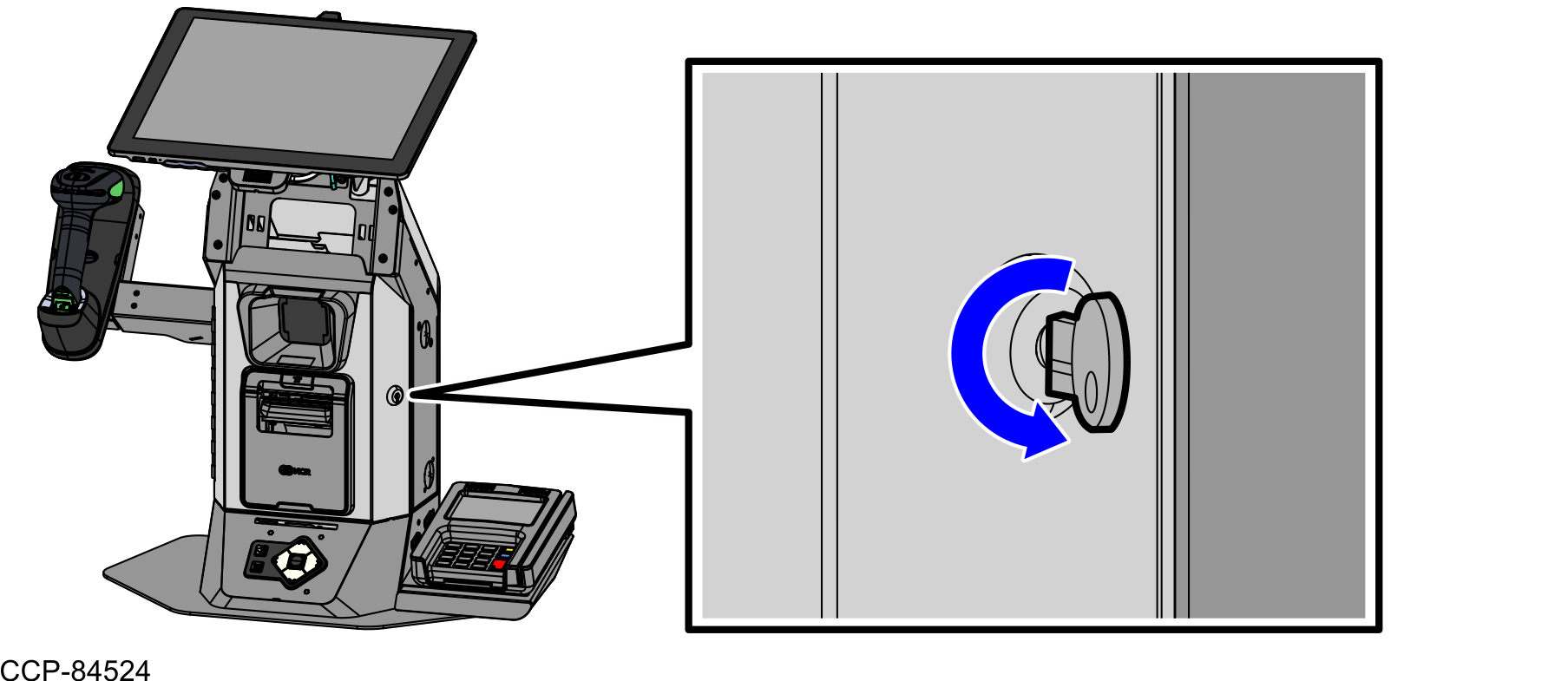

1. Unlock the Rear Cover of the Tower Frame using a key.

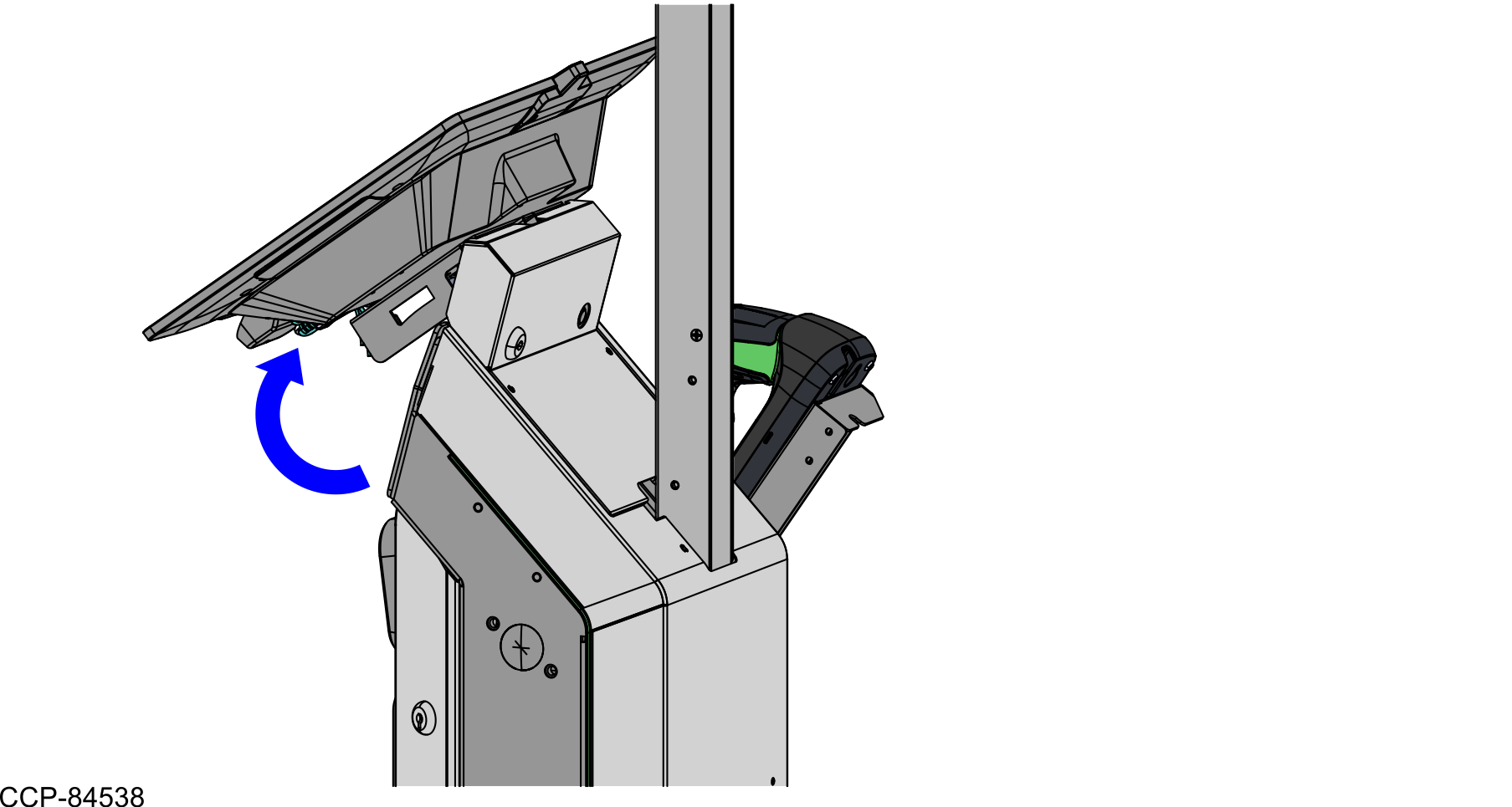

2. Lift the Terminal Display, as shown in the image below.

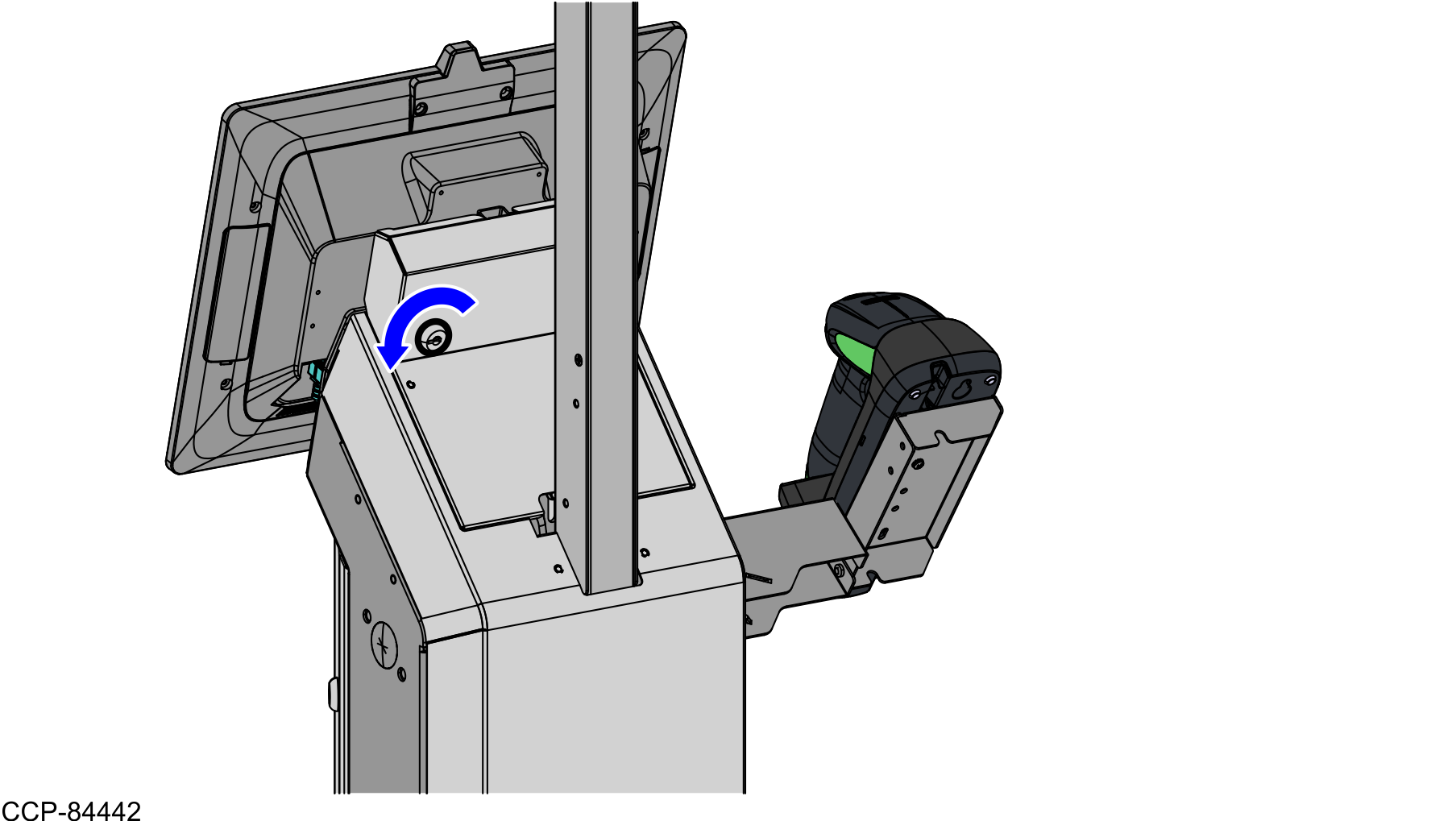

3. Open the Tower Cabinet door using a key.
   Note

   For the purpose of illustration only, the image below shows a Tabletop with a uNAV Base configuration.
