Installing the Rear Cosmetic Cover

To install the Rear Cosmetic Cover, follow these steps:

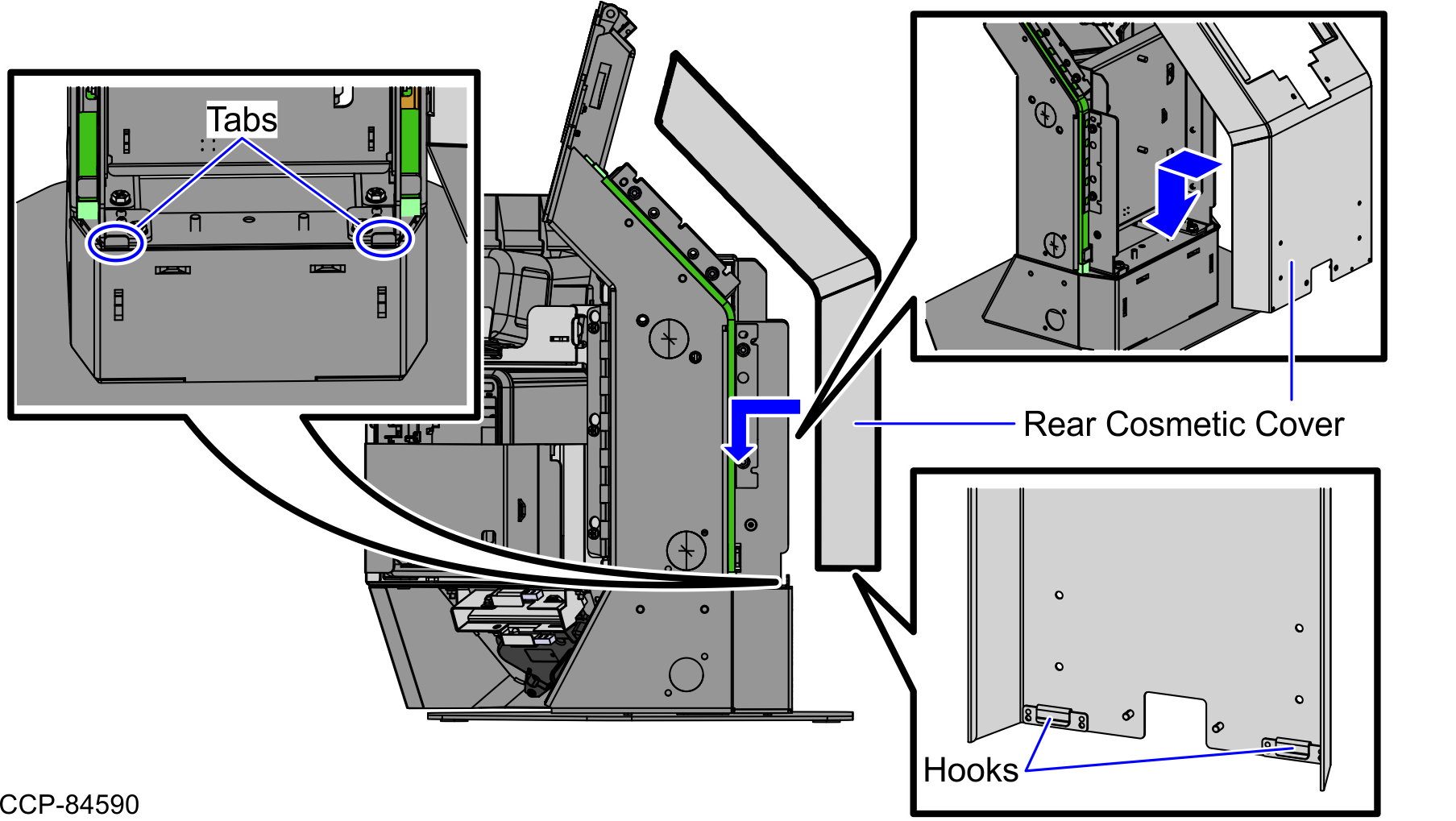

1. Attach the Rear Cosmetic Cover to the Tower Frame by engaging two (2) hooks to the tabs on the Tower Frame, as shown in the image below.
   Note

   Ensure that all four (4) hooks are engaged to the tabs.

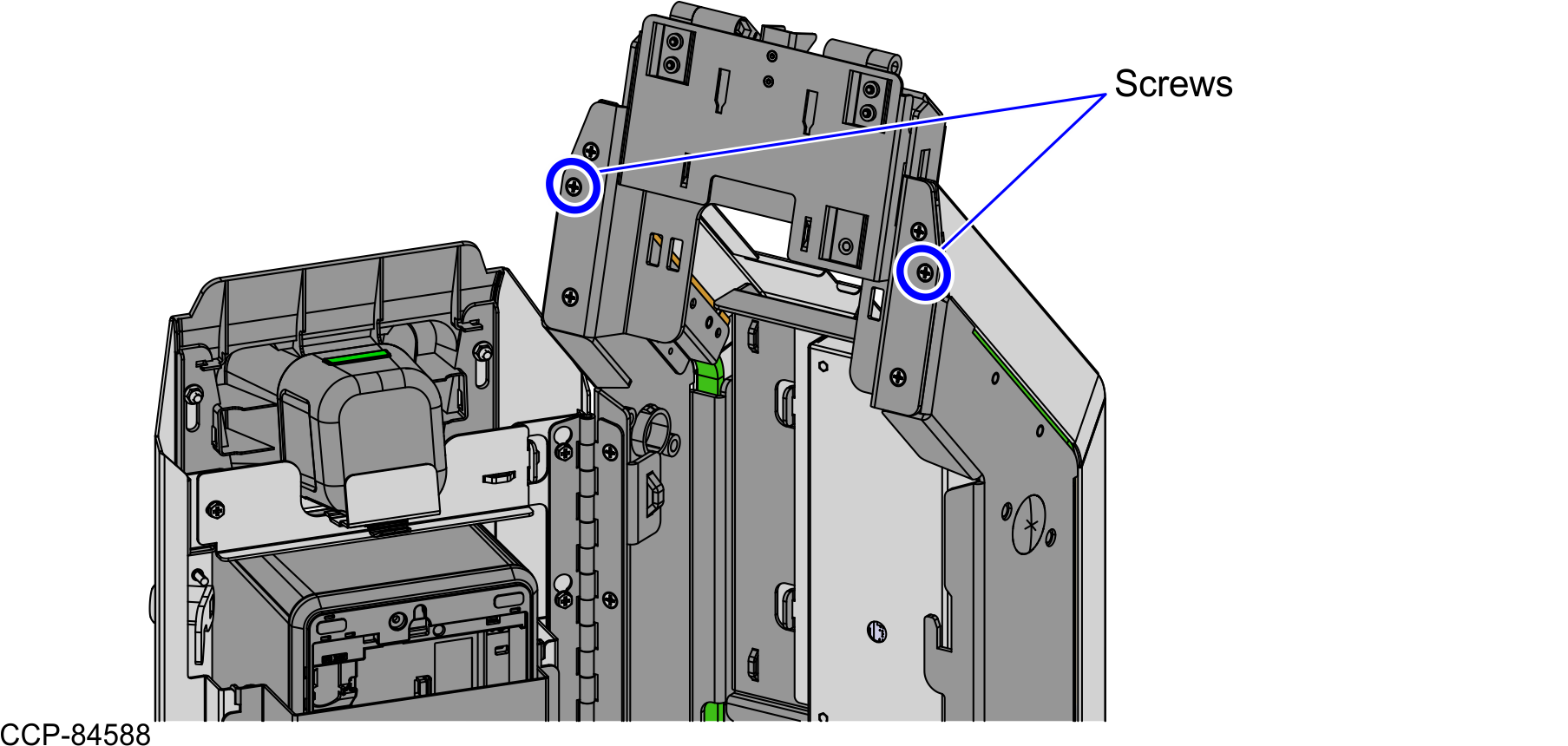

2. Secure the the Rear Cosmetic Cover to the Tower Frame using two (2) screws.
