Installing the Tower Frame

To install the tower bracket to the unit, follow these steps:

1.Remove the existing 7350 Narrow Core Tower Frame. For more information, refer to Removing the Tower Frame.

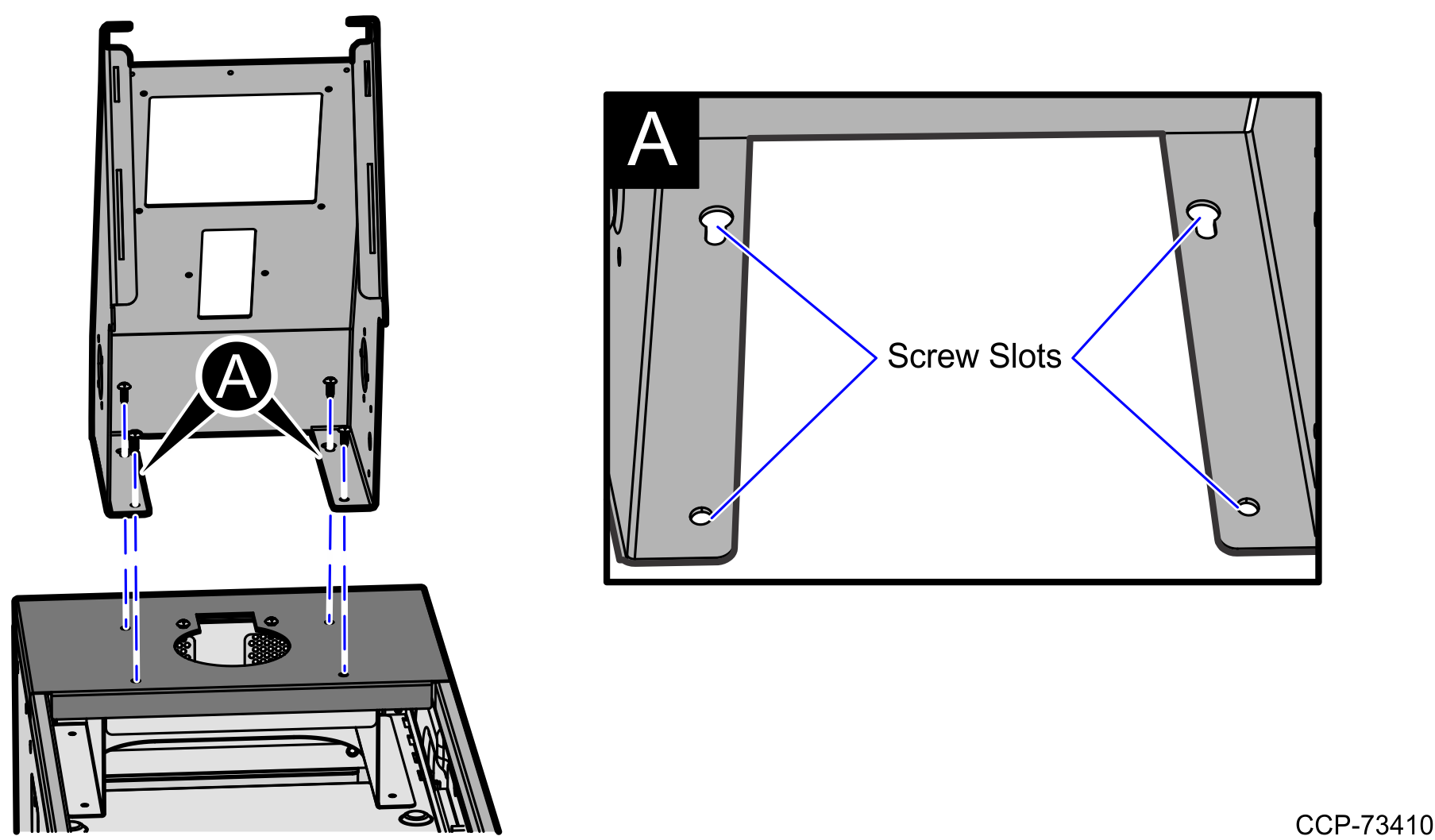

2.Attach the tower frame to the display base mount using four screws, as shown below.

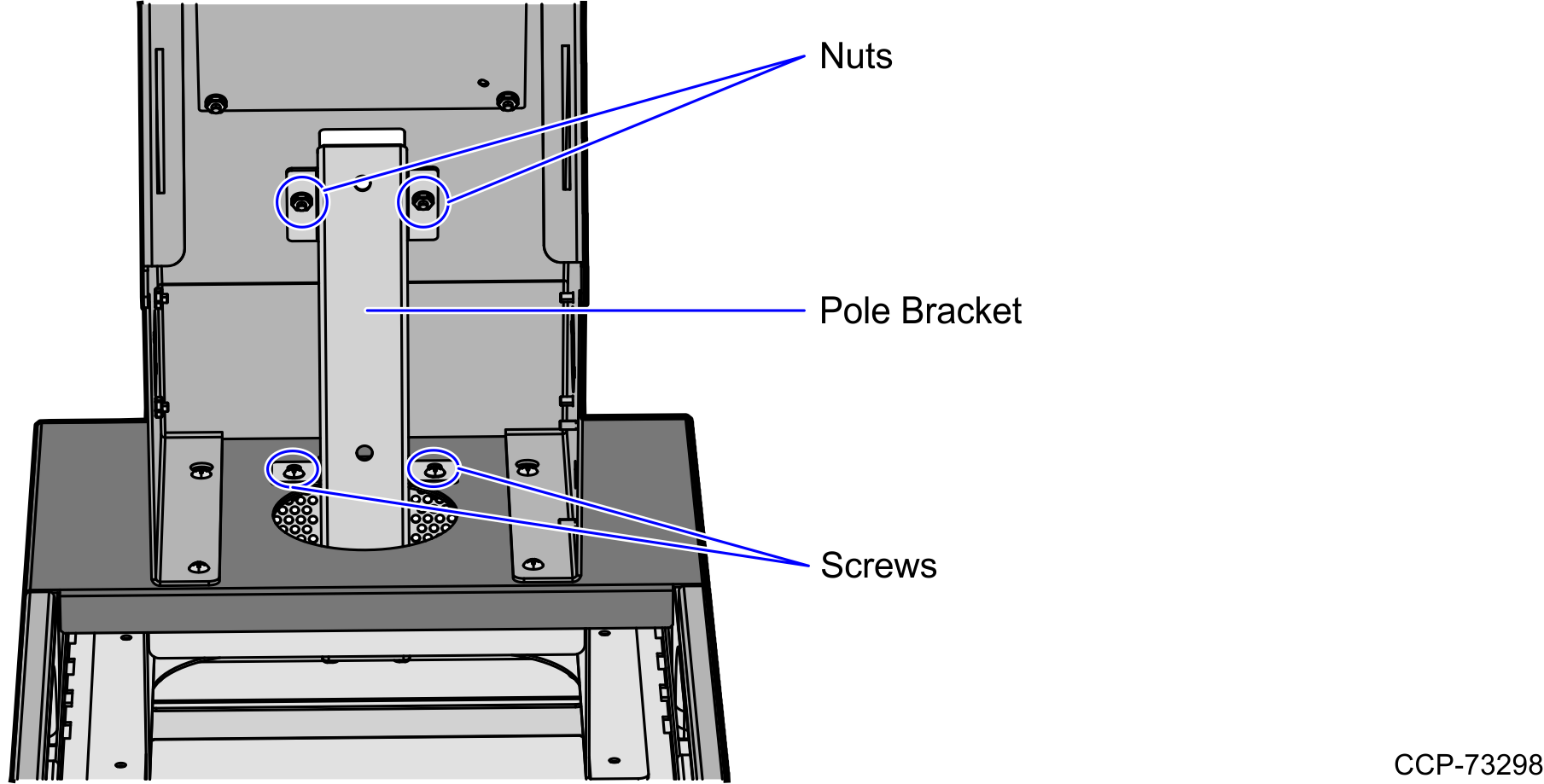

3.Secure the pole bracket to the base mount and the tower frame using two screws and two nuts.

4.Install the 7879e Scanner / Scale. For more information, refer to Installing the (7879e) Scanner/Scale.
