Installing R6L Tri-Light/Lane Light Pole

To install the R6L Tri-Light/Lane Light pole, follow these steps:

1. Remove the existing R5 Tri-Light/Lane Light assembly, if necessary. For more information, refer to Removing R5 Tri-Light/Lane Light Assembly and Pole.

2.Insert the Tri-Light/Lane Light cable extender through the R6L Tri-Light/Lane Light pole.

Tip:  To make routing the cable extender through the pole easier, first attach a weight (for example, a large bolt) to a long piece of string and drop the weighted end of the string through the Tri-Light/Lane Light pole (starting at the top-end). Once the string is threaded through the pole, tie the non-weighted end of the string around the cable connector and then pull the cable extender through the pole.

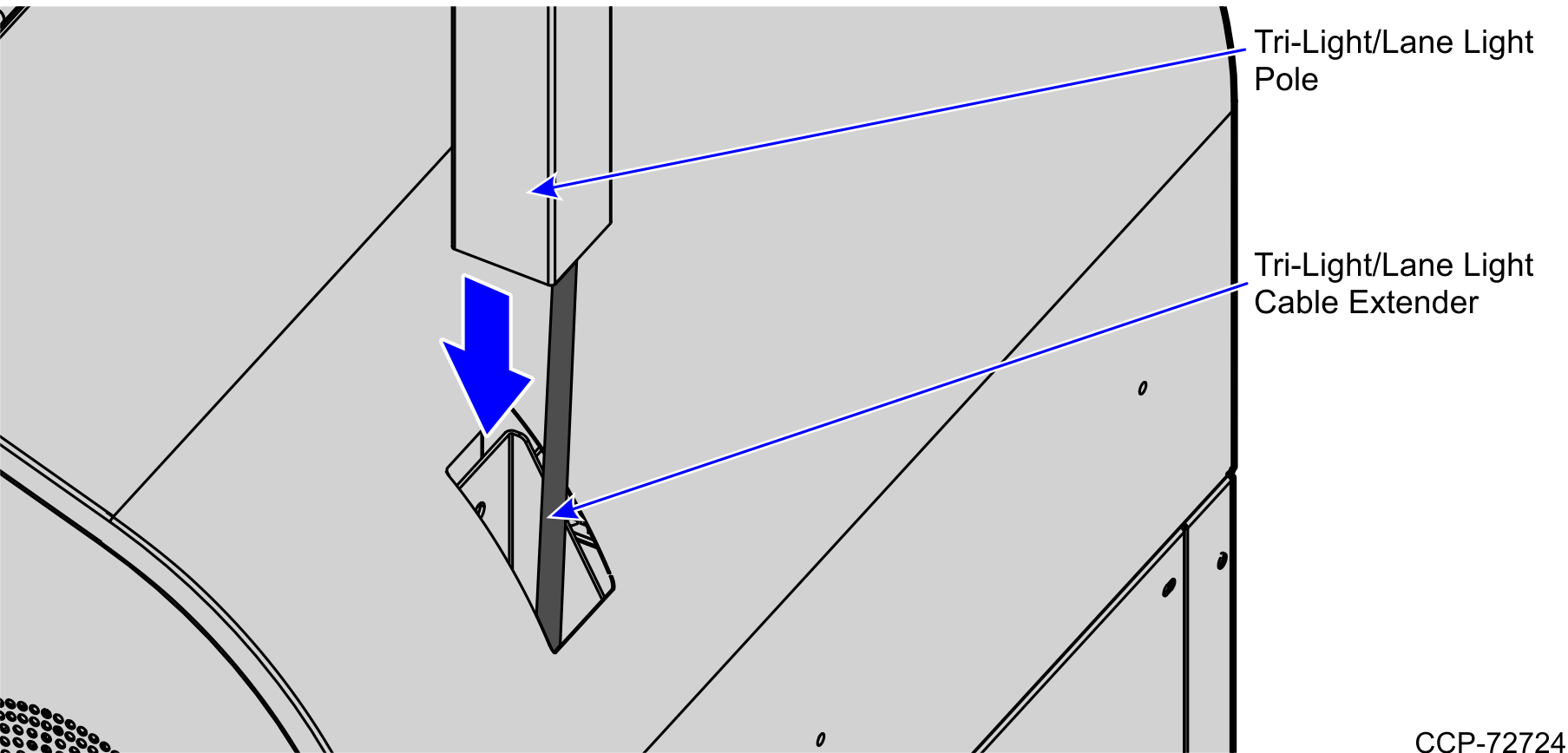

3.Carefully insert the pole into the Upper Cabinet.

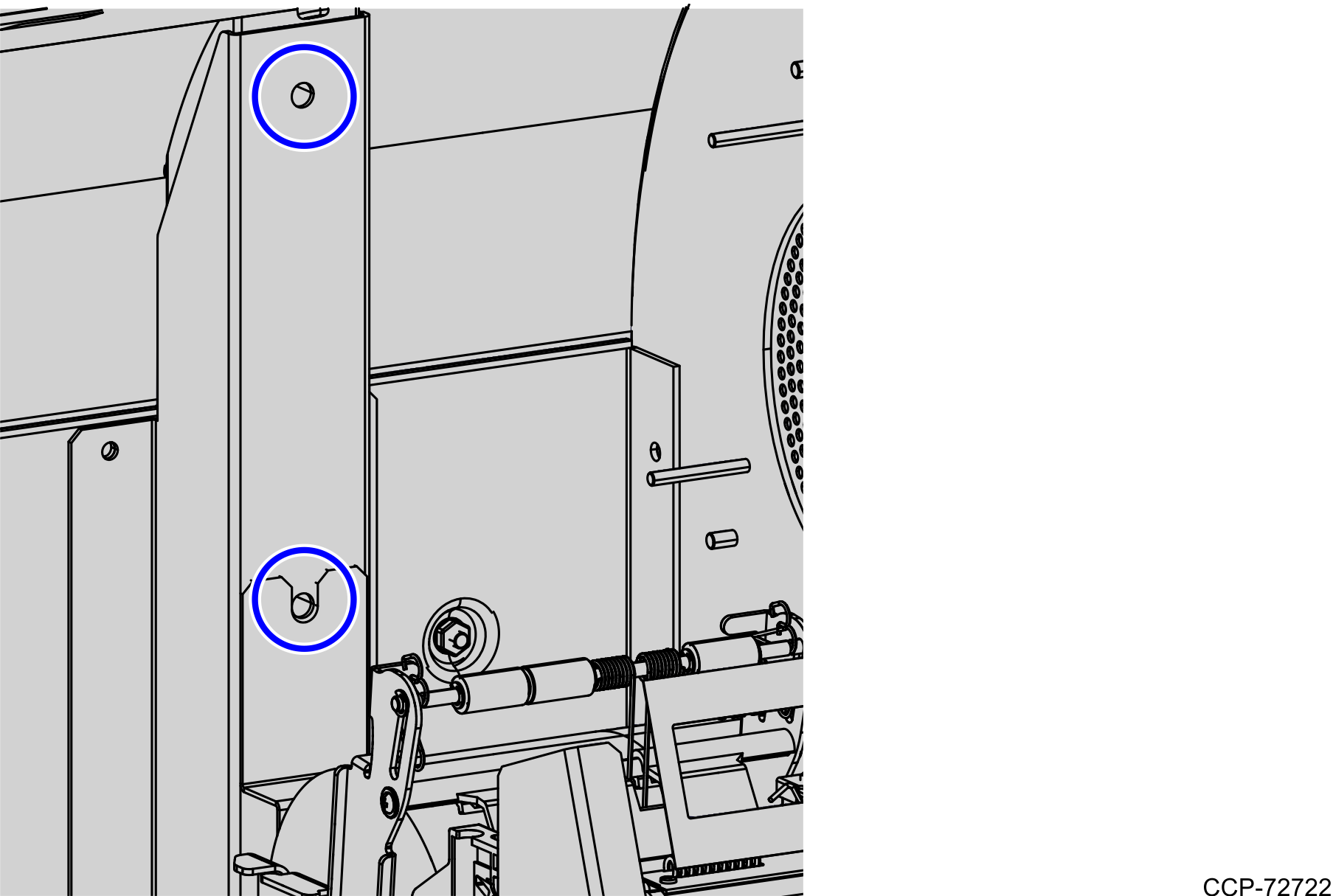

4.Secure the pole to the Upper Cabinet using two screws.

5.Install the Tri-Light/Lane Light assembly. For more information, refer to Installing R6 Tri-Light/Lane Light Assembly.
