Installing R6 Tri-Light/Lane Light Assembly

To install the 7360 (R6) Tri-Light/Lane Light assembly, follow these steps:

Note:  The R6 Tri-Light/Lane Light is powered by +24Vdc through the 7360 I/O Box. Ensure that the jumper settings are set to Pin 5-6. For more information, refer to Adjusting Tri-Light/Lane Light Jumper Settings to +24V.

1.Install the R6L Tri-Light/Lane Light pole. For more information, refer to Installing R6L Tri-Light/Lane Light Pole.

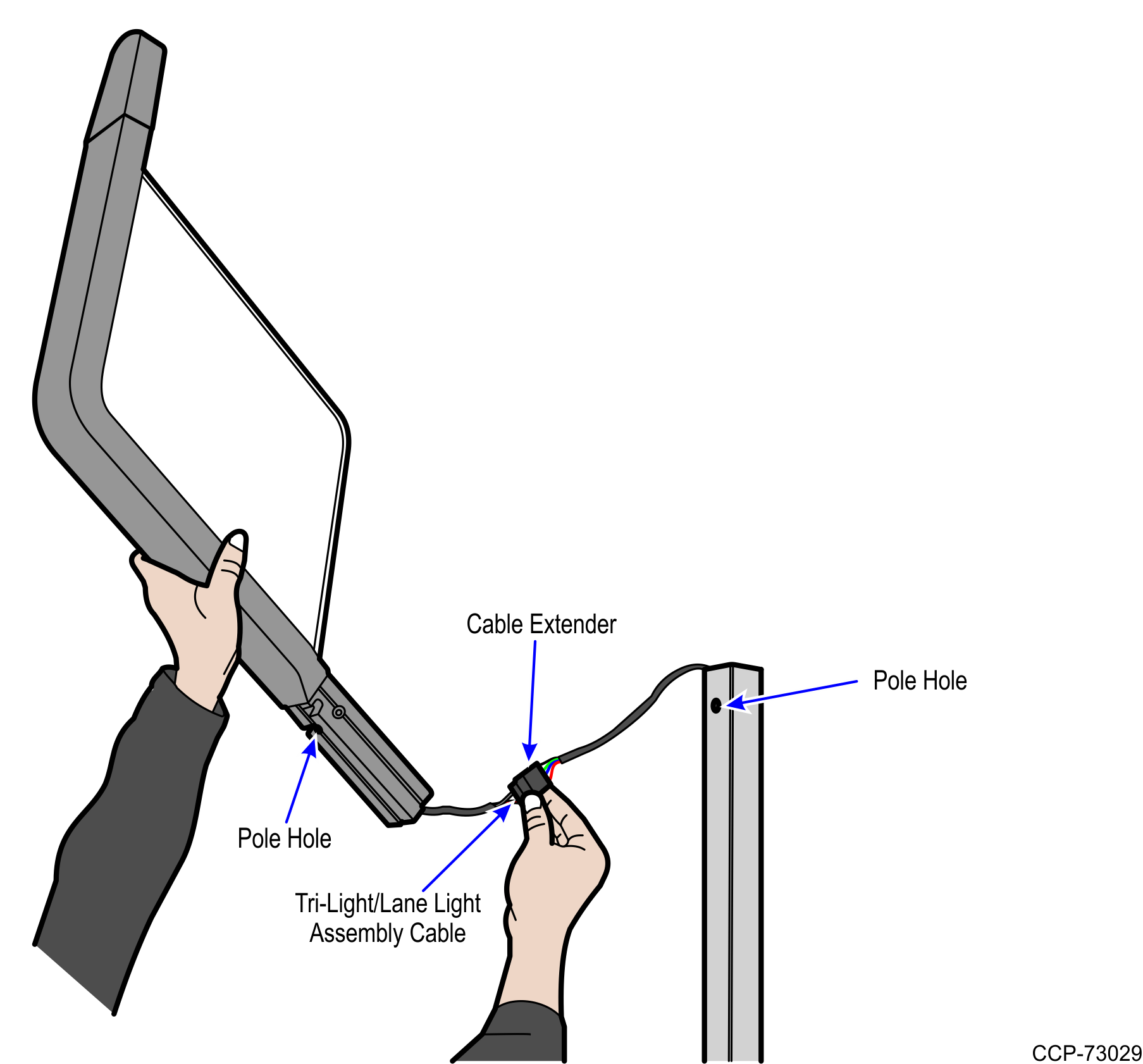

2.Connect the the Tri-Light/Lane Light assembly cable with the cable extender in the pole.

3.Orient the Trilight/Lane Light assembly so that the Lane Light faces the front of the unit.

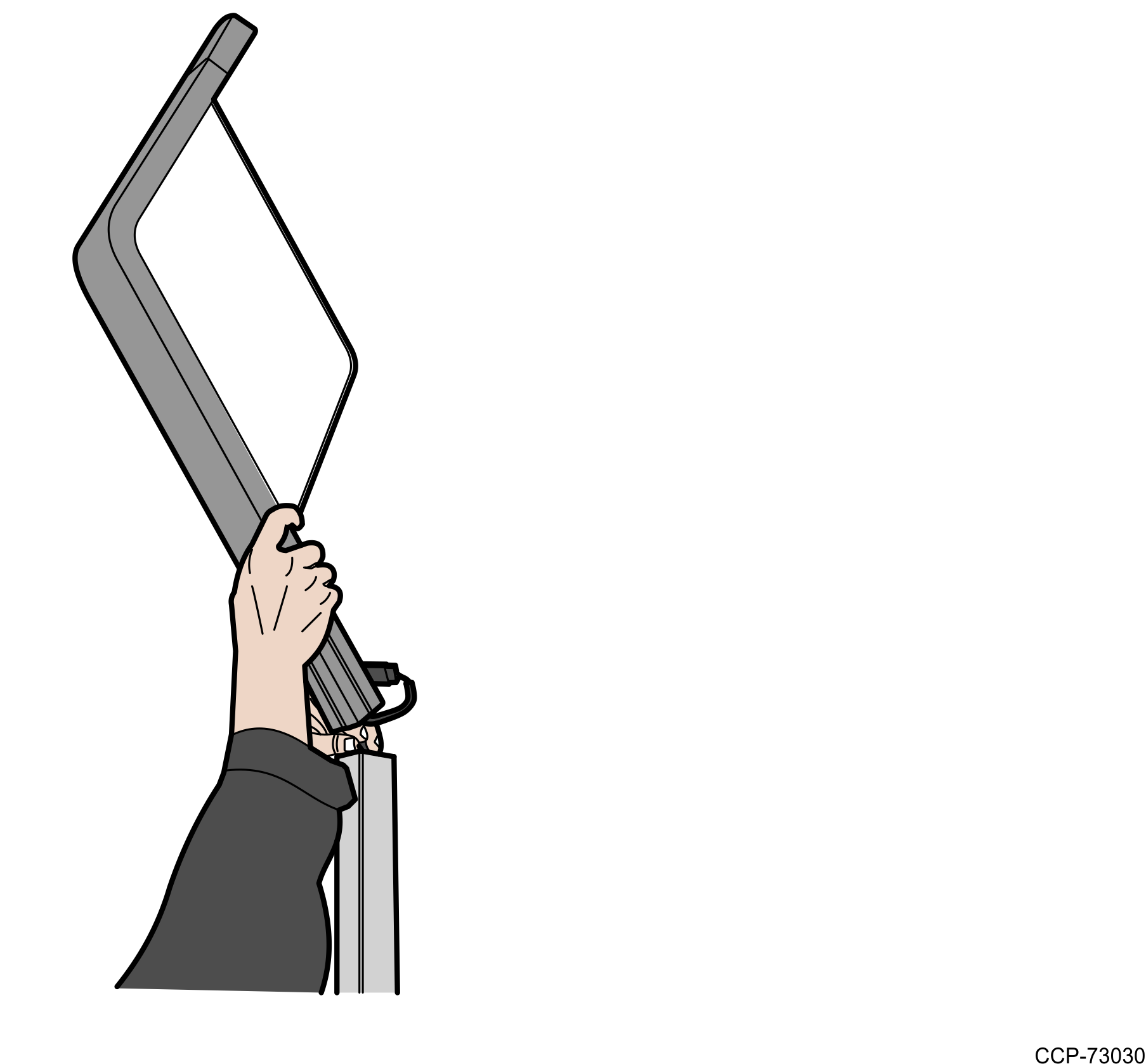

4.Insert the Tri-Light/Lane Light assembly into the pole. Ensure that the pole holes are aligned.

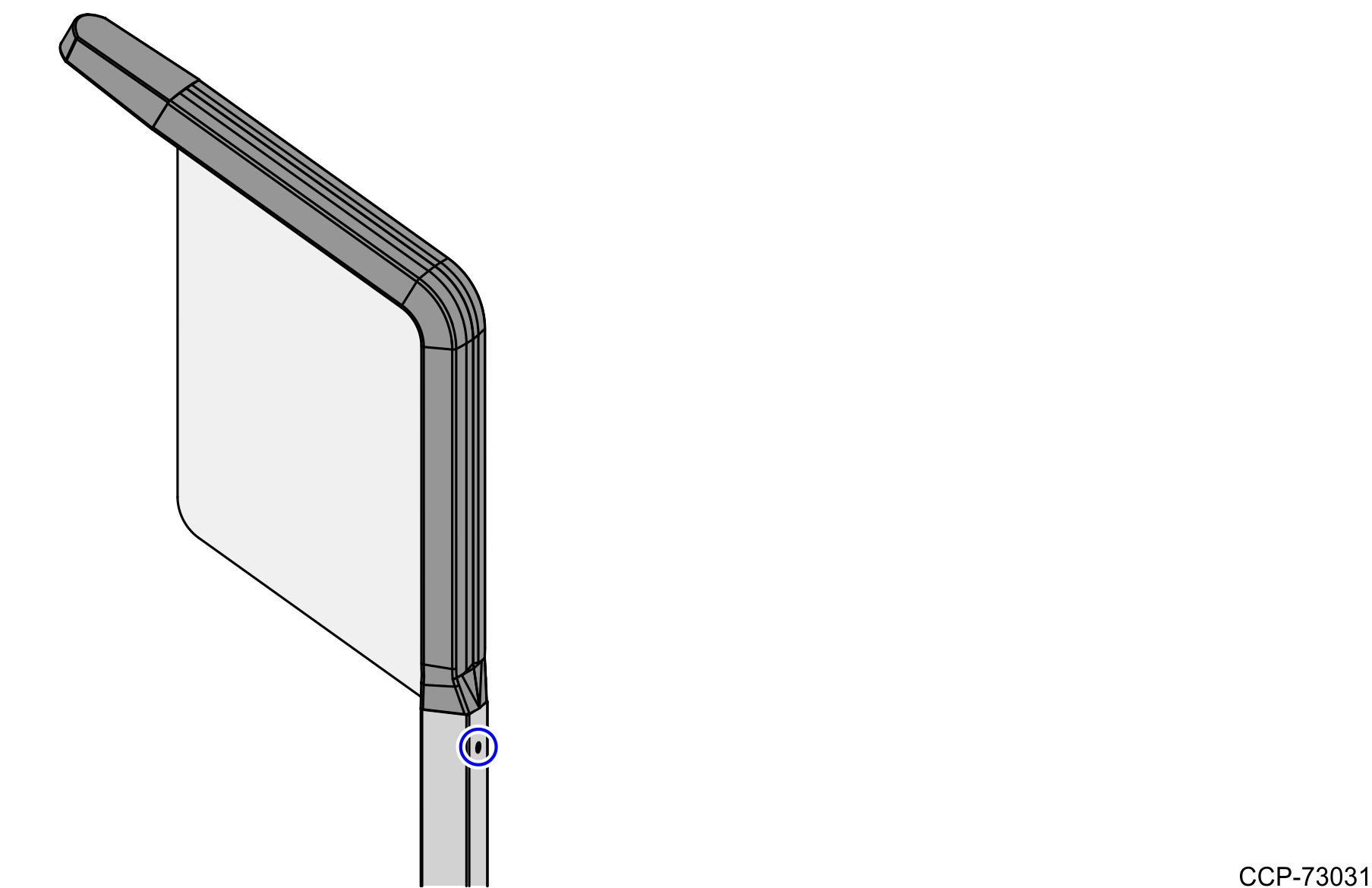

5.Secure the Tri-Light/Lane Light assembly to the pole with a screw.

6.Connect the Tri-Light/Lane Light cable extender to the I/O Box.

Note:  The R6 Tri-Light/Lane Light does not require a power cable.
