7736-K322 CX8 I/O Security Cover

This kit provides an I/O Security Cover for the NCR CX8 POS (7736).

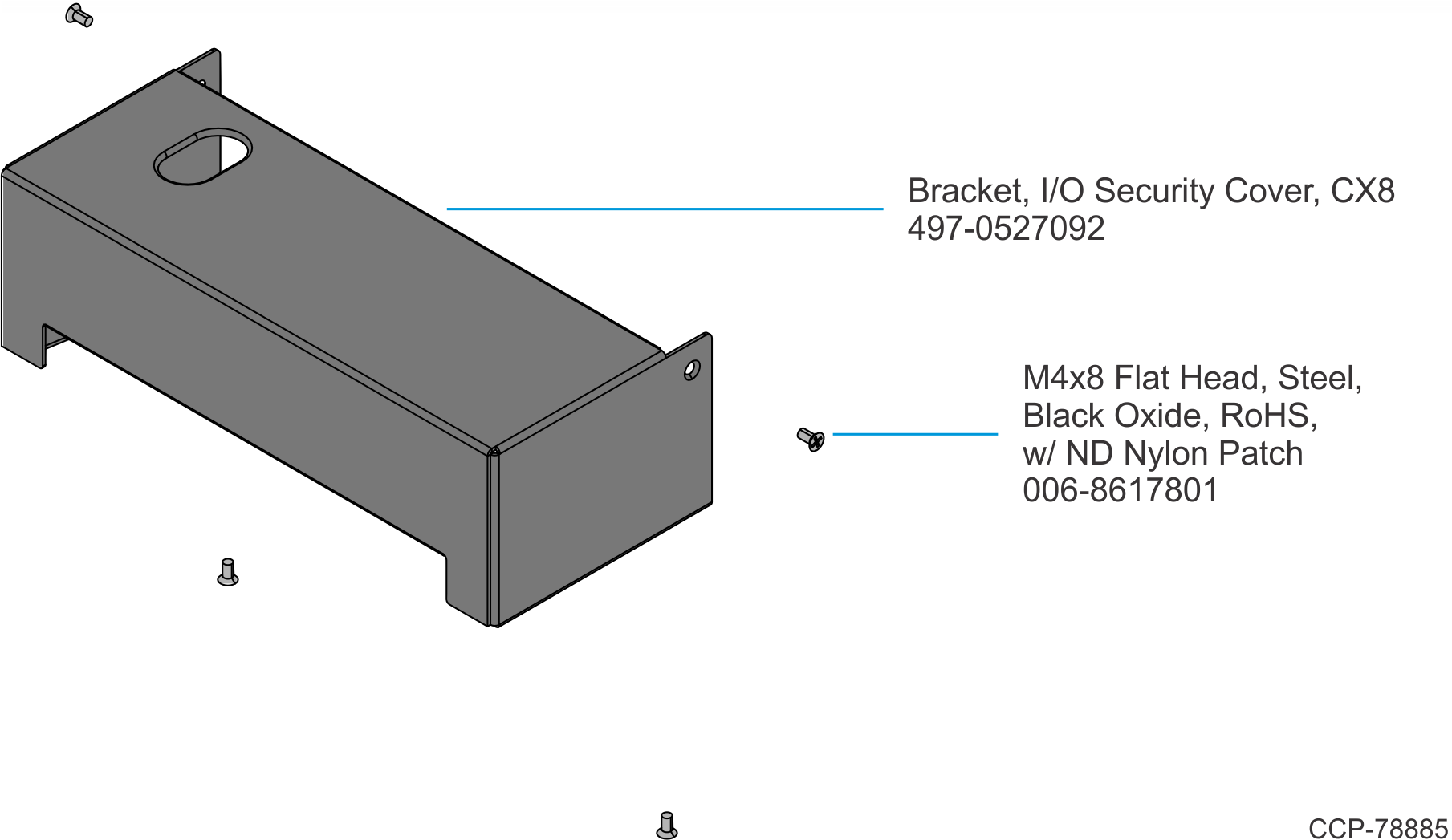

Kit Contents

Installation Procedure

1. Connect the cables to the terminal.

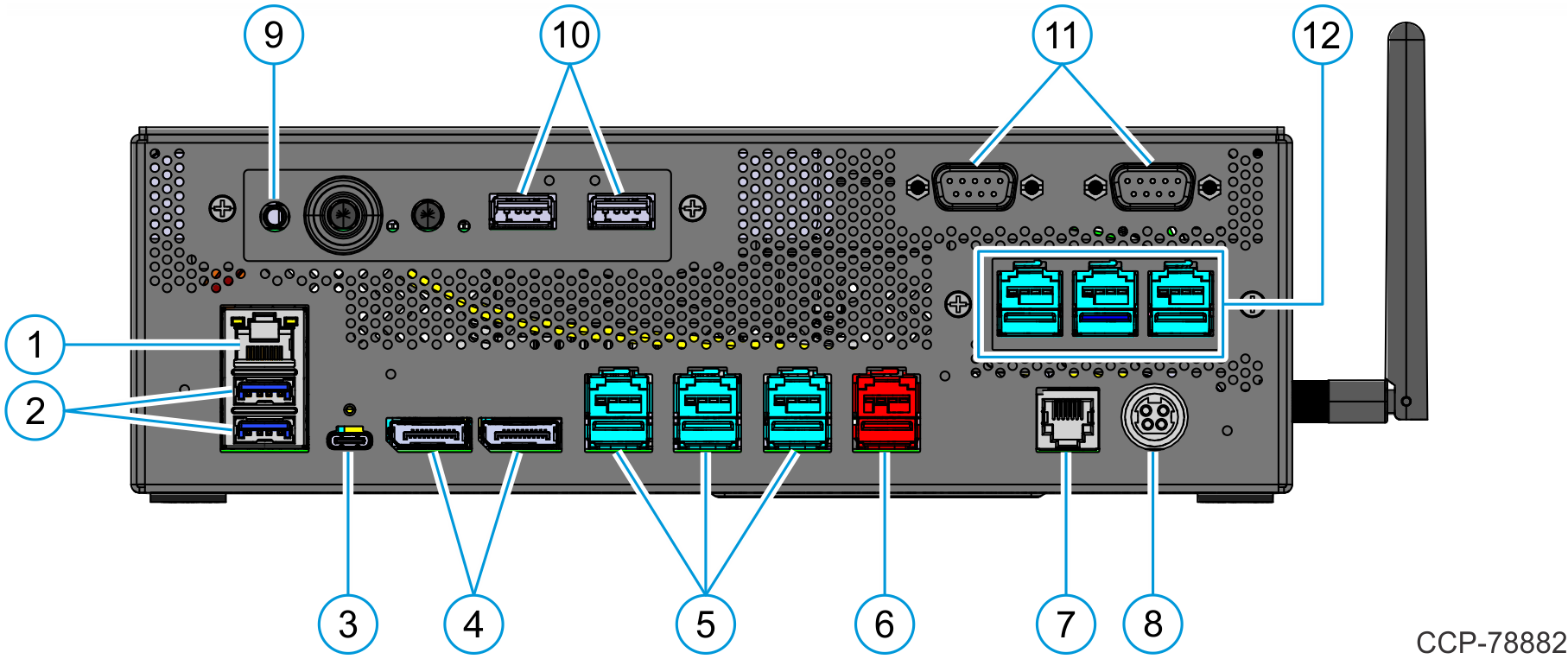

   Note The illustration below shows a Rear Facing I/O.



   Callout	Port
   1	LAN 10/100/1000
   2	USB 3.0 (5V)
   3	USB Display
   4	DisplayPort++
   5	12V Powered USB
   6	24V Powered USB
   7	Cash Drawer (12V/24V) Dual Port
   8	24V Power In
   9	Amplified Audio
   10	USB 2.0 (5V)
   11	DB9 Serial
   12	12V Powered USB (Expansion Option)

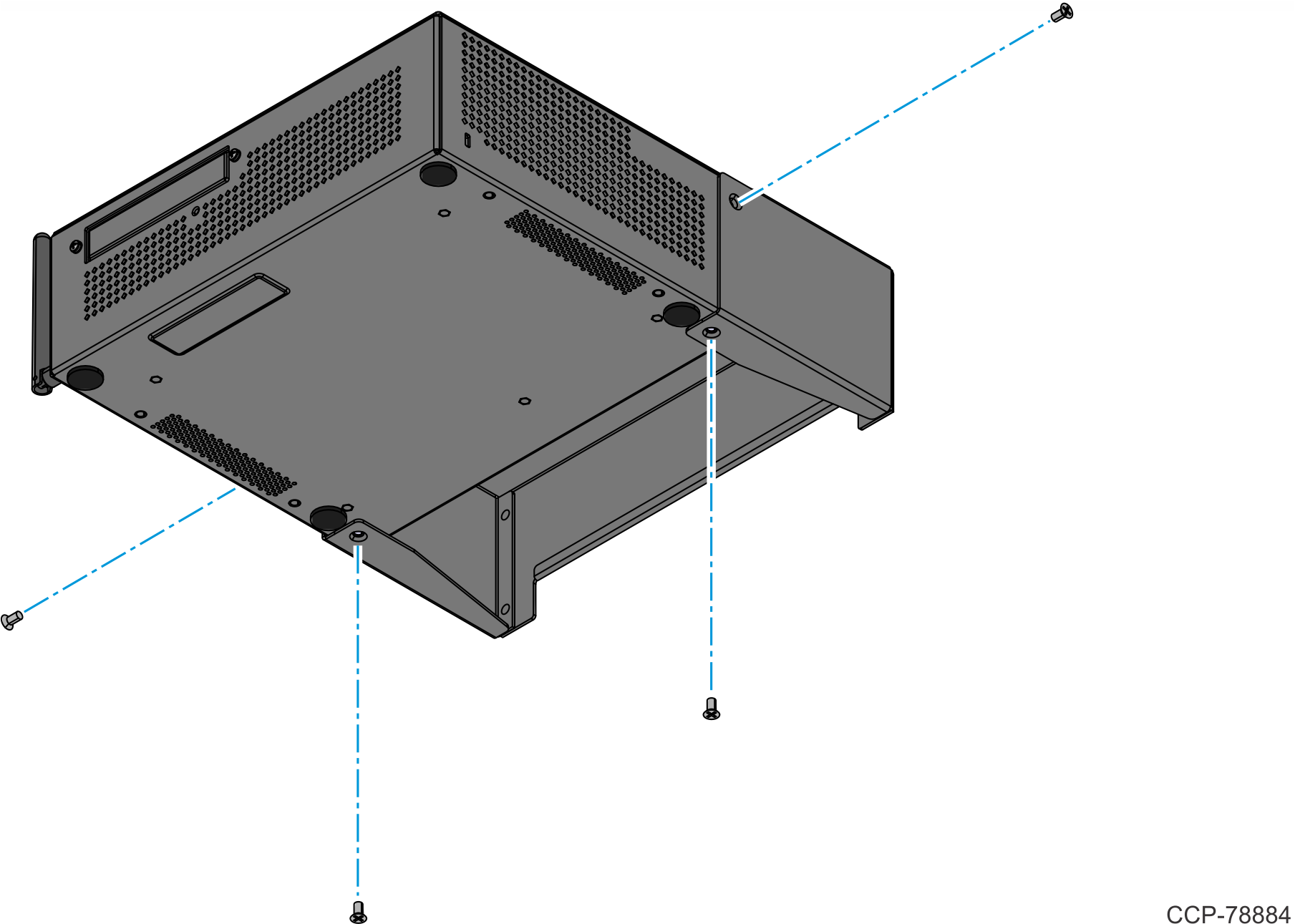

2. Align the screw holes of the I/O Security Cover with the screw holes of the chassis.



3. Install the Security Cover on the chassis with four (4) screws.
