Removing the Sidecar Coupon Bin (Right-hand (RH) orientation)

To remove the Sidecar Coupon Bin from a Right-hand (RH) orientation unit, follow these steps:

1. Open the Tower Cabinet. For more information, refer to Opening the Tower Cabinet.

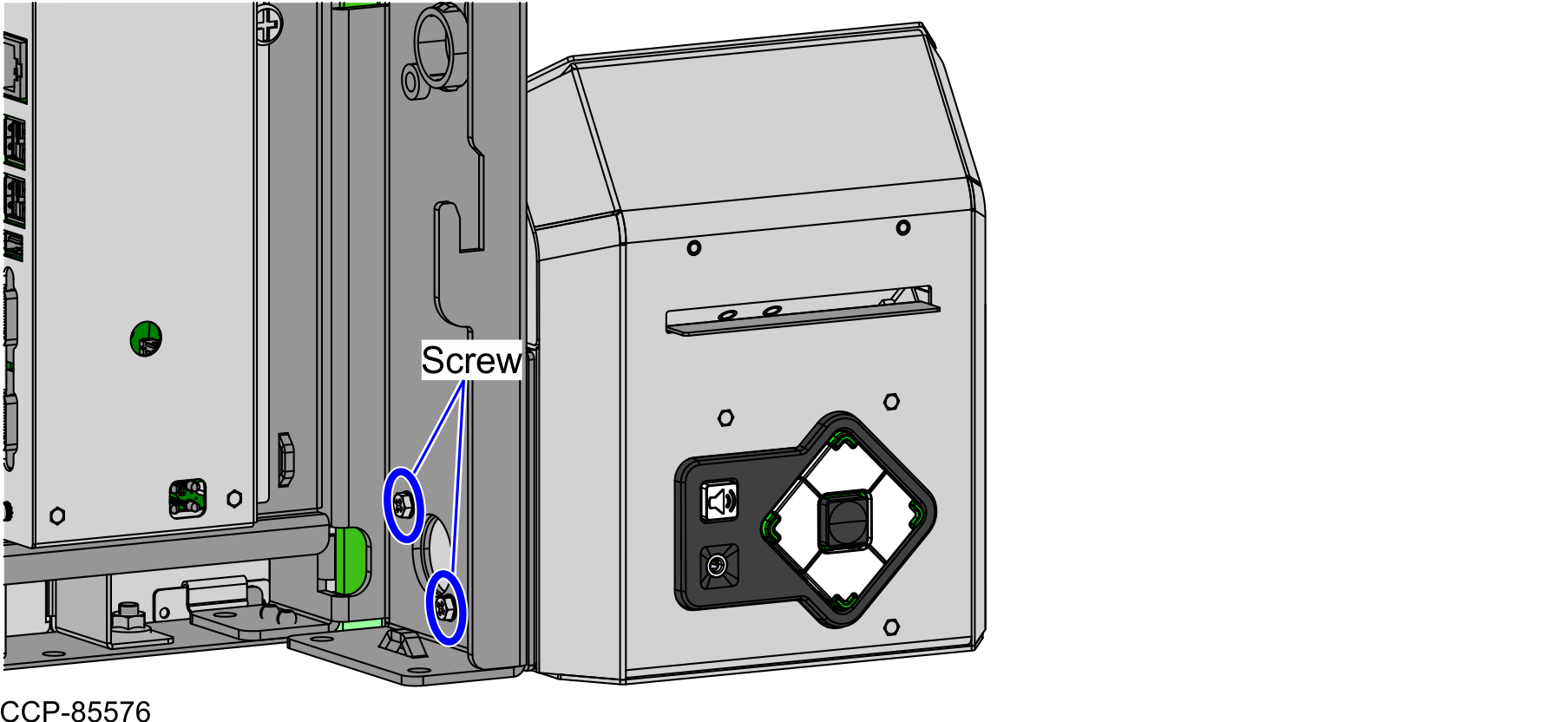

2. From inside the Tower Cabinet, remove two (2) screws to detach the Sidecar Coupon Bin from the Tower Cabinet.



3. Remove the Sidecar Coupon Bin away from the Tower Cabinet.
