7371 NCR Voyix SCO Full Function Fixed: Coupon Printer Shelf on left side

To install the Coupon Printer Shelf on the left side of the unit, follow these steps:

Note

For mounting restrictions on the Coupon Printer Shelf, refer to Mounting Restrictions.

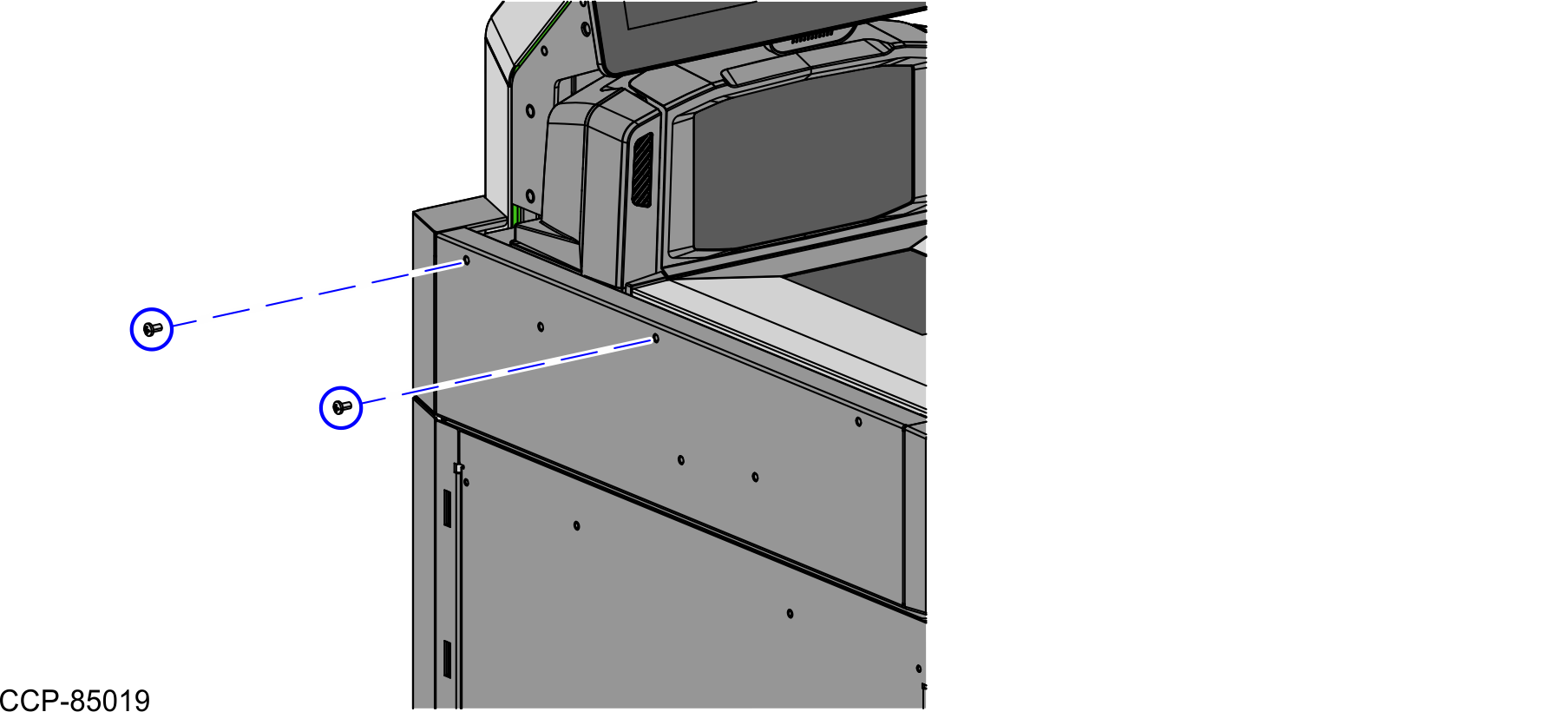

  1. Insert two (2) screws into the side of the Core (Cabinet) as an alignment guide.

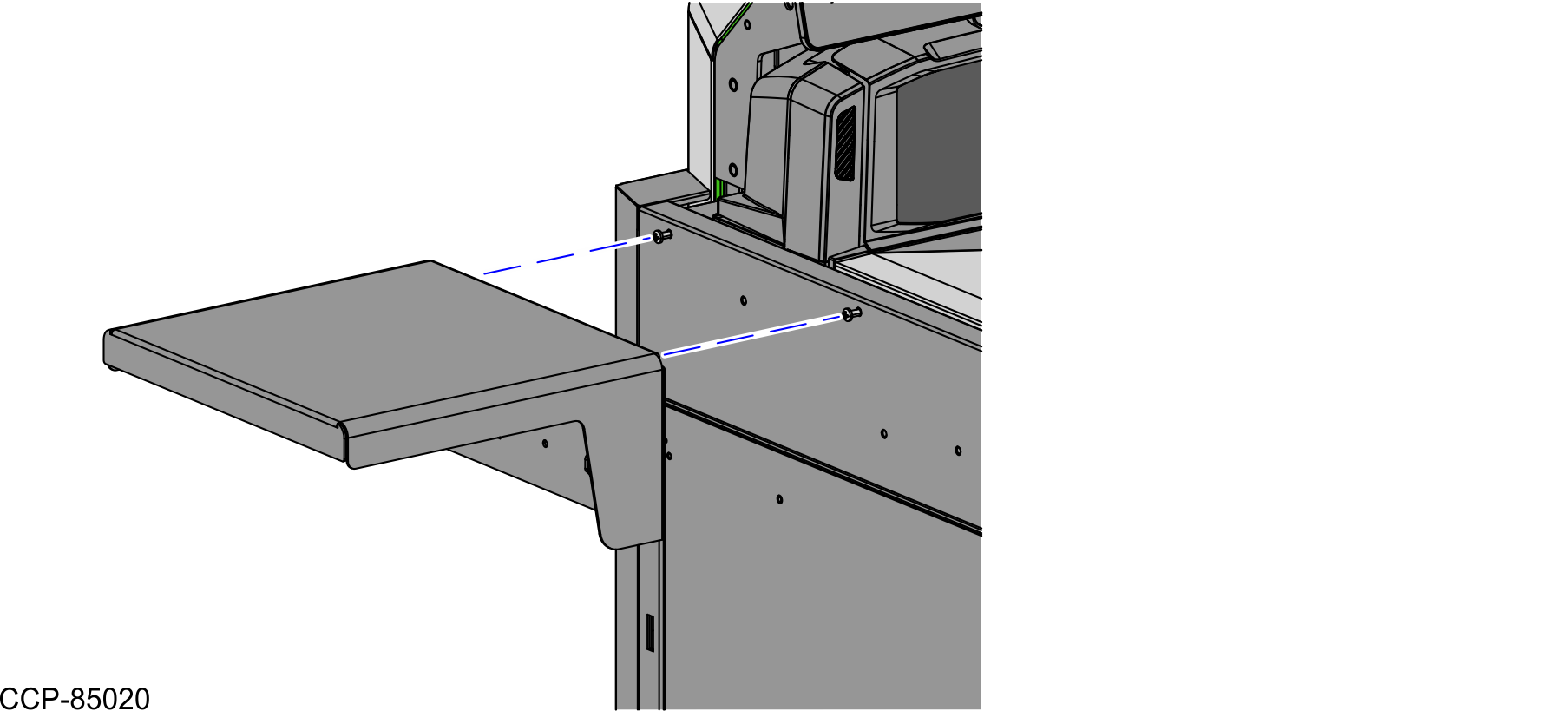

  2. Mount the Coupon Printer Shelf onto the alignment screws.

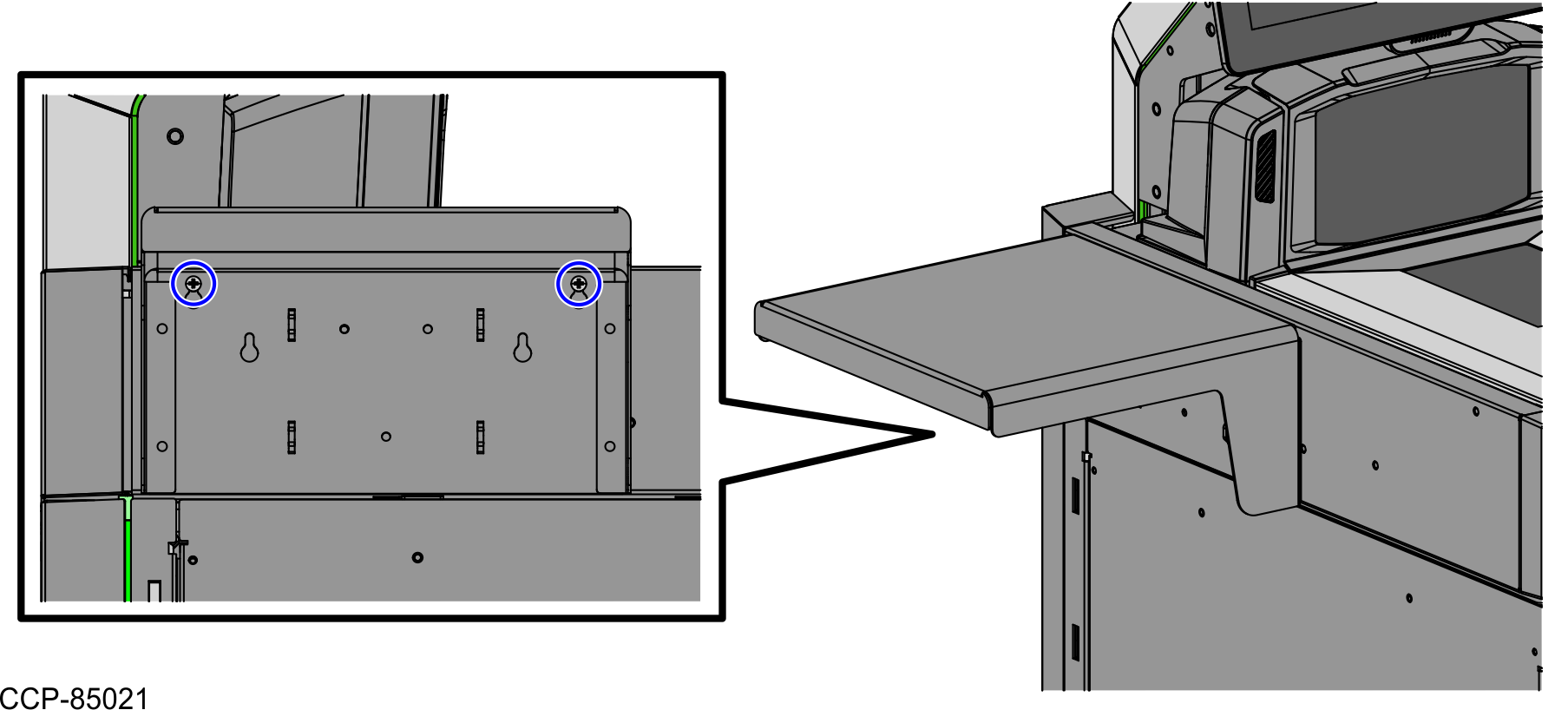

  3. Tighten the alignment screws.

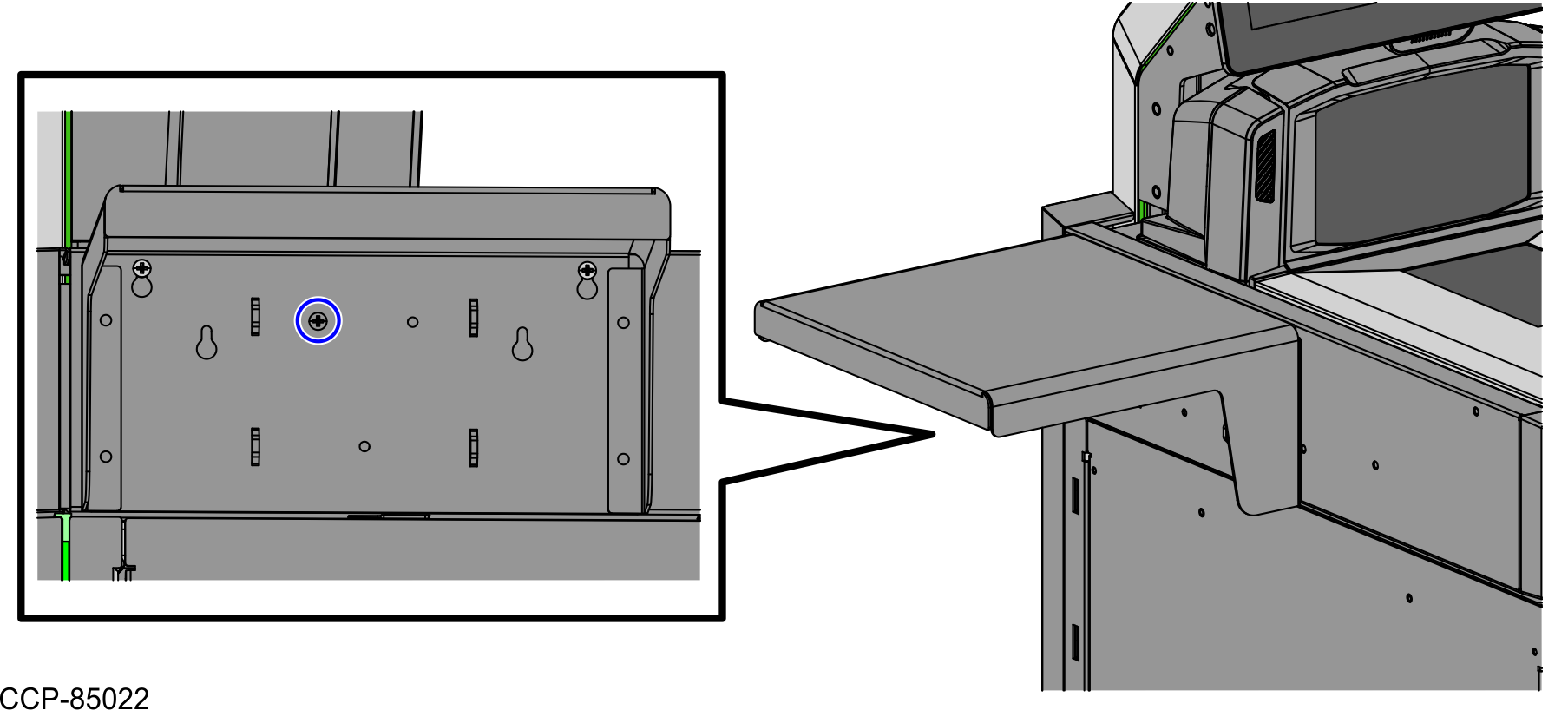

  4. Secure the Coupon Printer Shelf to the unit using one (1) screw, as shown in the image below.
