7371-K330 Coupon Printer Shelf
This publication provides procedures for installing 7371-K330 Coupon Printer Shelf to the following NCR Voyix SCO Hardware units:
- 7371 NCR Voyix SCO Full Function
- 7372 NCR Voyix SCO Card Only
Mounting Restrictions
| Device/Component on the unit | Recommended Coupon Printer Shelf Mounting Location |
|---|---|
| Handheld Scanner | Not compatible |
| Input Shelf Note
Input Shelf must be on the lowest position if it is on the same side with the Coupon Shelf. | Either side of the unit. |
| PIN Pad Arm | Opposite side of the unit |
| Bagwell | Opposite side of the unit |
The NCR Voyix Self-Checkout units with a Bagging Area (Bagwell) Module can be configured for either Left-hand (LH) orientation or Right-hand (RH) orientation, which refers to the direction customers scan and bag items.
- Left-hand (LH) orientation—Customers scan from left to right.
- Right-hand (RH) orientation—Customers scan from right to left.
The orientation of the unit is determined by the position of the Lower Core (Cabinet) Module in relation to the Bagging Area (Bagwell) Module.
The Left-hand (LH) orientation has the unit positioned on the left side of the Bagwell.

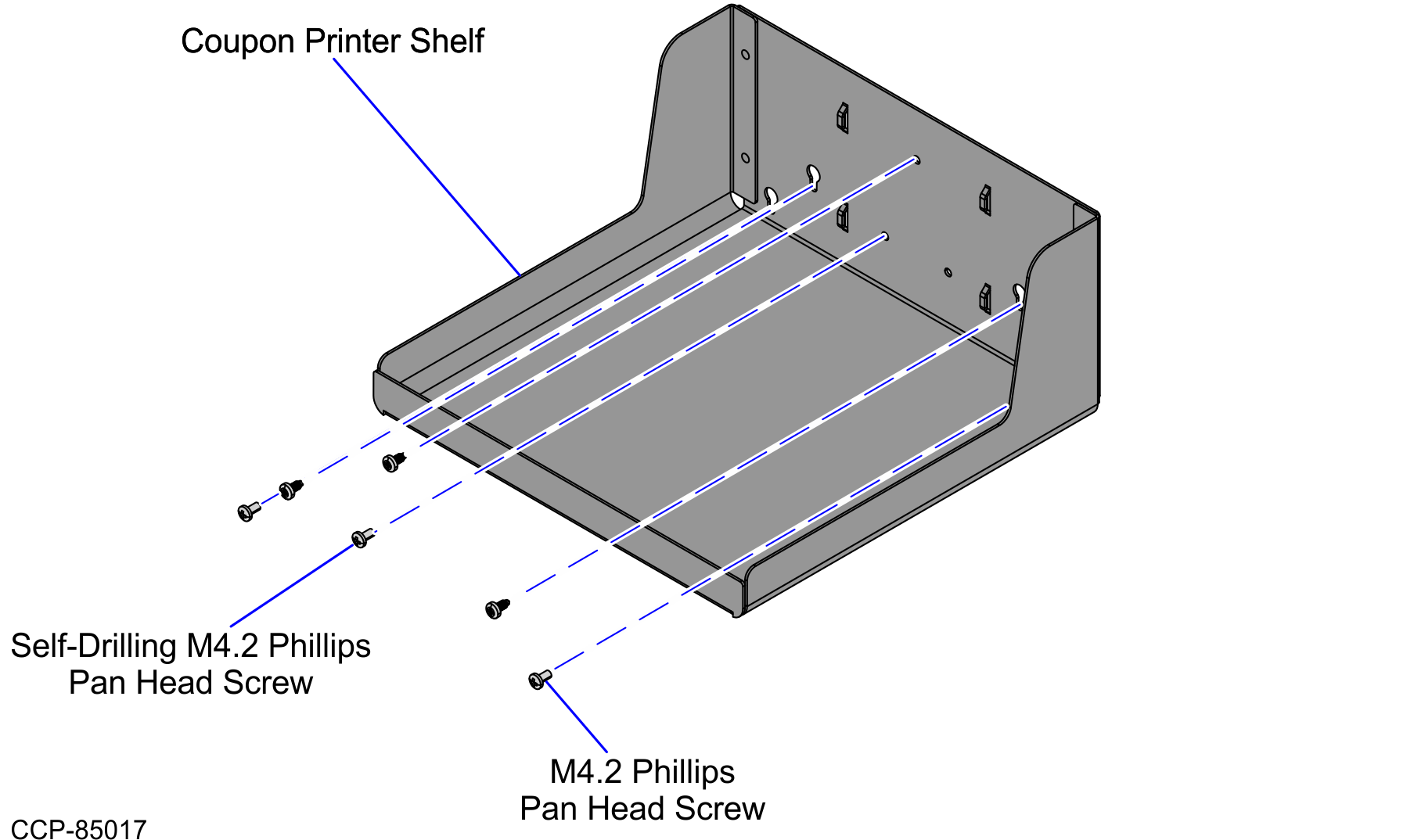

Kit Contents
| Part Number | Description |
|---|---|
| 497-0537967 | 7371-K330 Coupon Printer Shelf |
| 497-0537378 | Coupon Printer Shelf |
| 006-8611462 | Screw - M4X8 Phillips Panhead Machine (3 pcs) |
| 006-8624917 | Screw - M4.2 X 13 Phillips Pan Head Self - Drilling (3 pcs) |
| * 497-0537954 | Coupon Printer Mounting Template |
* Items marked with an asterisk are not called out on the image.
