Installing Custom Bag Rack on Scale Tray

To install the Custom Bag Rack on the Scale Tray, follow these steps:

1. Assemble the Custom Bag Rack. For more information refer to Assembling Custom Bag Rack.

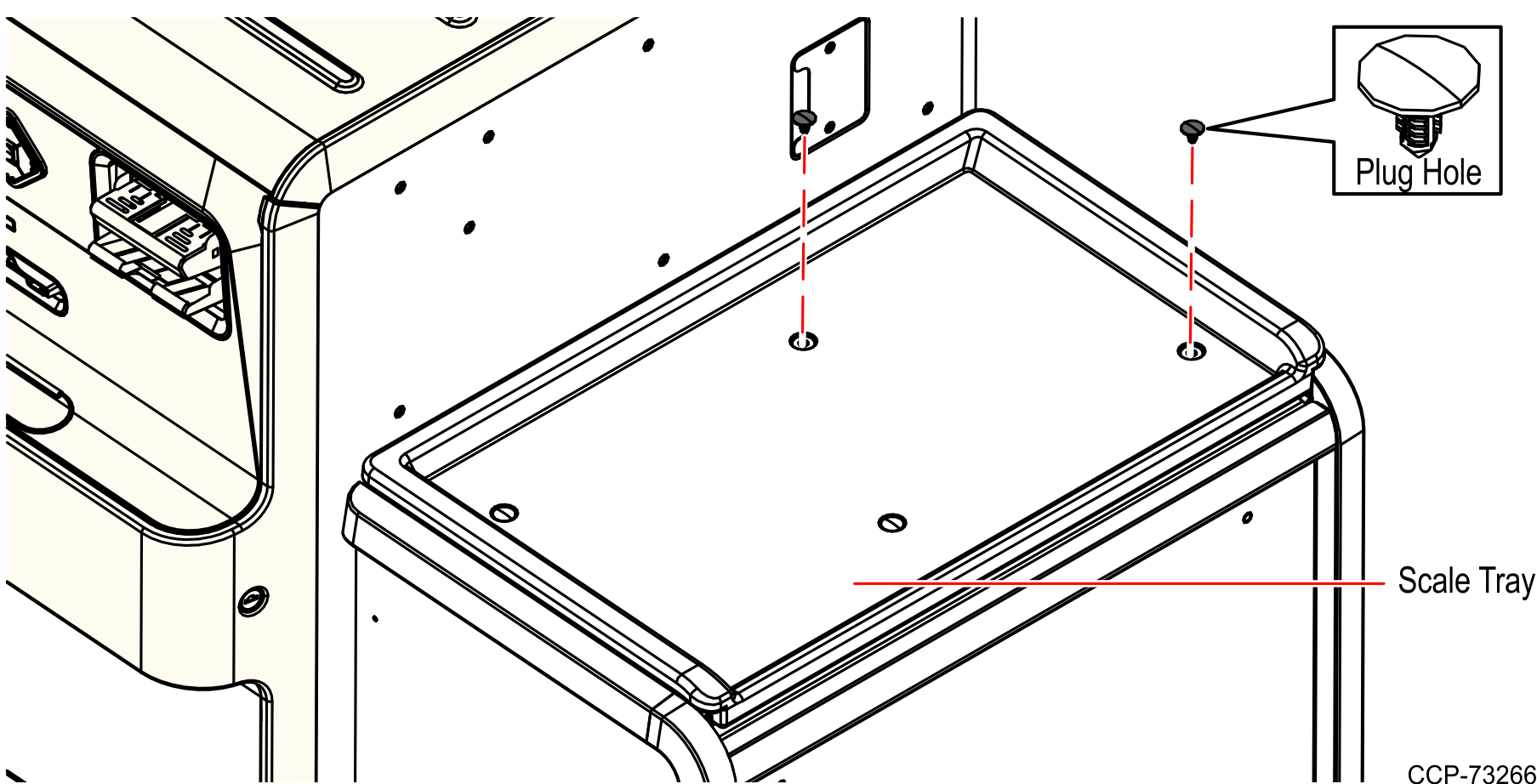

2. Remove plug holes from the Scale Tray, if necessary.

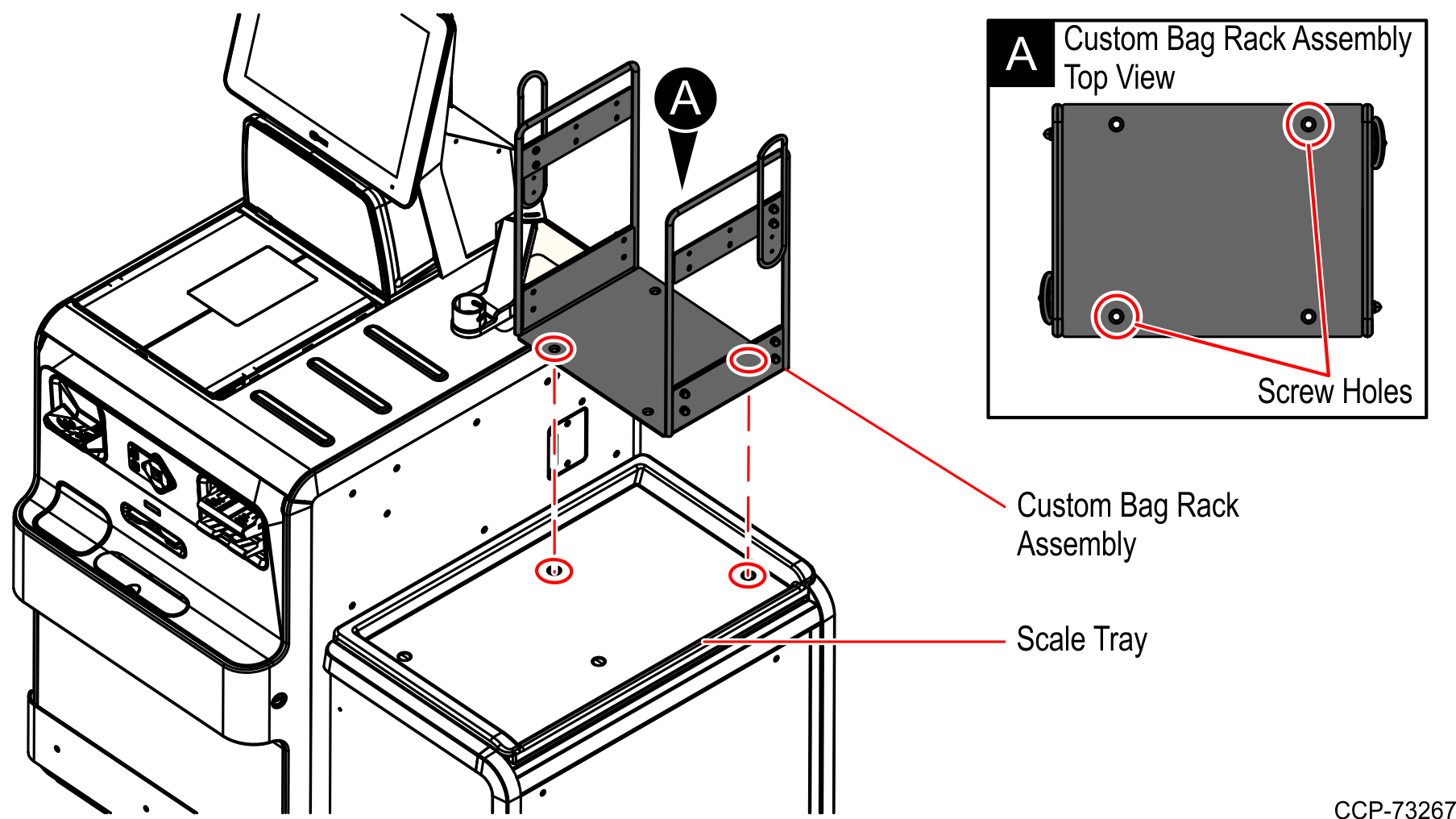

3. Align the Custom Bag Rack assembly with the two (2) screw holes on the Scale Tray.

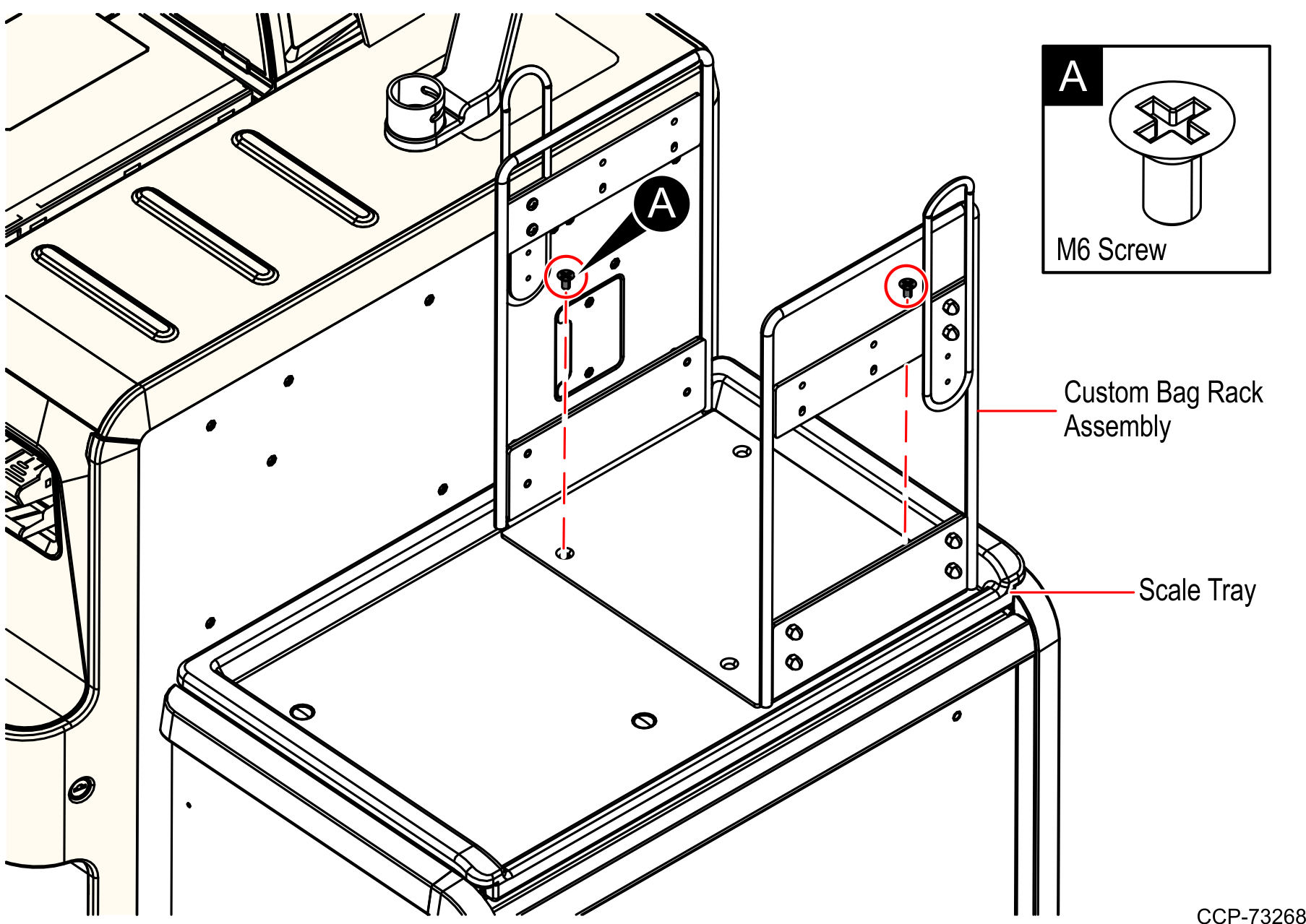

4. Secure the Custom Bag Rack to the Scale Tray using two (2) M6 screws.
   Note

   Set the screw driver torque limiter to 22 in–lbs.
