Installing Coupon Printer Tray

To install the Coupon Printer Tray, follow these steps:

1. Install Coupon Printer Pole Mount Assembly on the SelfServ Checkout unit. For more information, refer to Installing Coupon Printer Pole Mount Assembly.

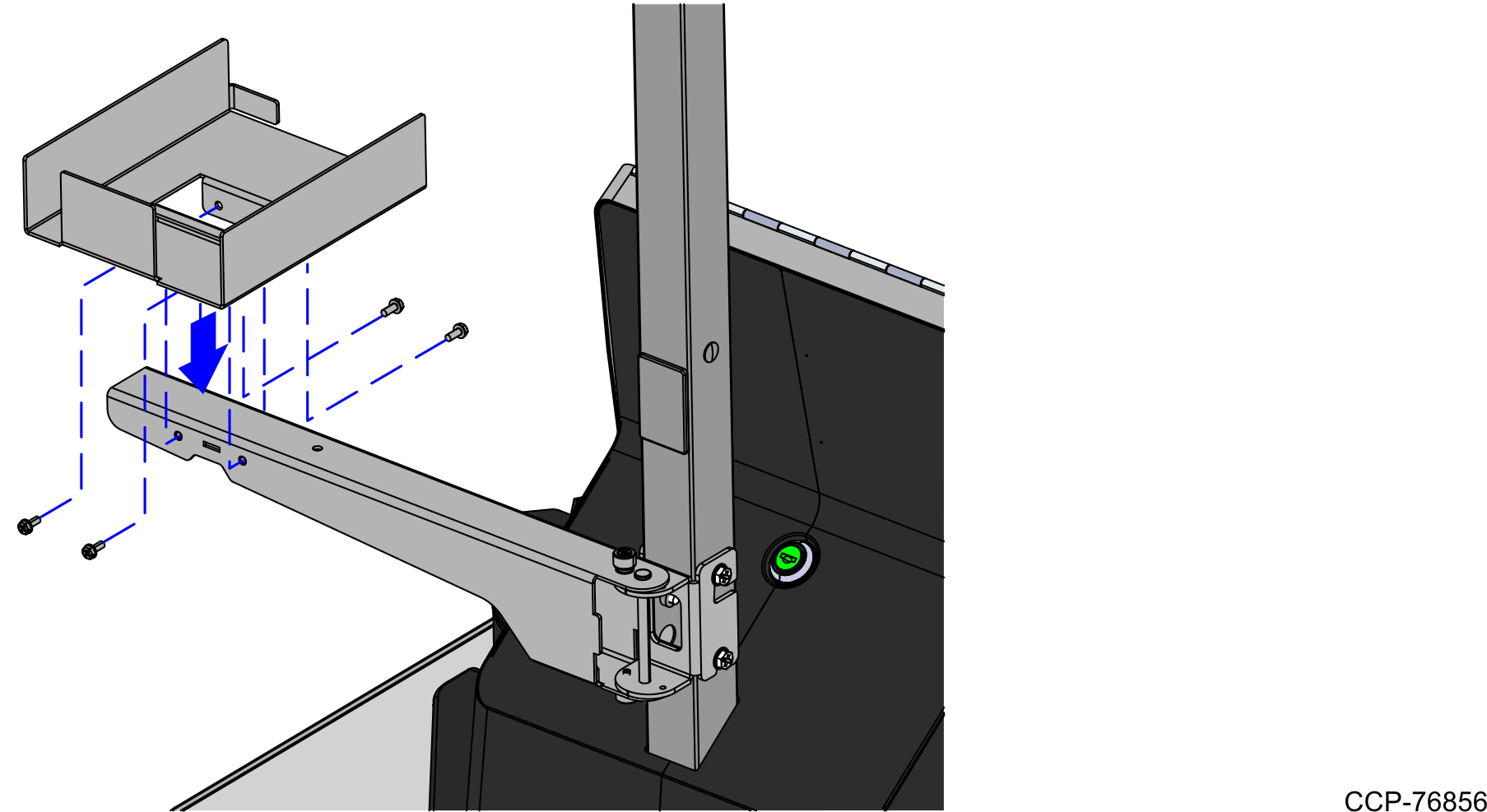

2. Align the Coupon Printer Tray over the corresponding screw holes on the Rotating Arm assembly and then secure using two (2) screws on each side.
