Removing Memory Module

To remove the existing Memory Module from the E-Box, follow these steps:

1.Access the Memory Module by doing the following, if necessary:

a.Remove the E-Box. For more information, refer to Removing the E-Box.

b.Remove the Top Cover of the E-Box. For more information, refer to Removing the Top Cover.

2.Locate the Memory Module sockets.

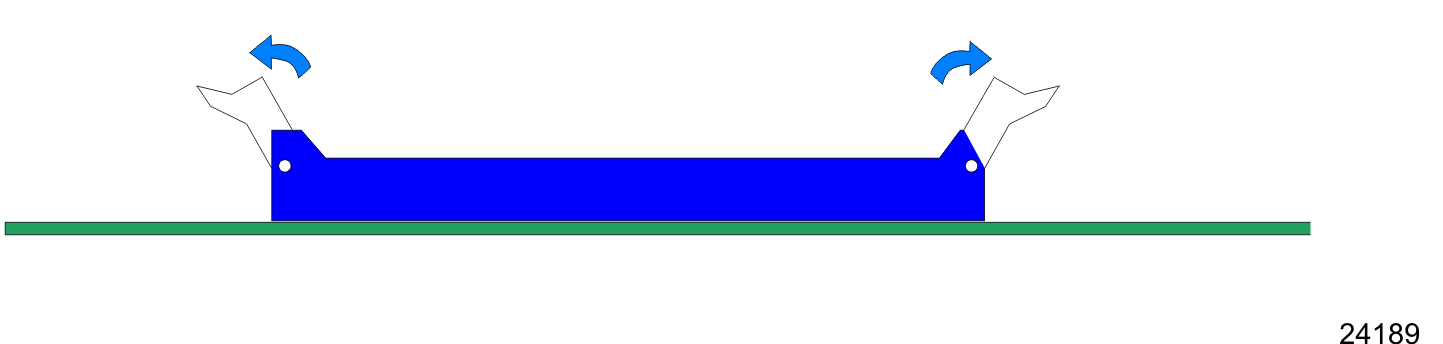

3.Open the latches at the ends of the sockets and remove the Memory Module.
