Base

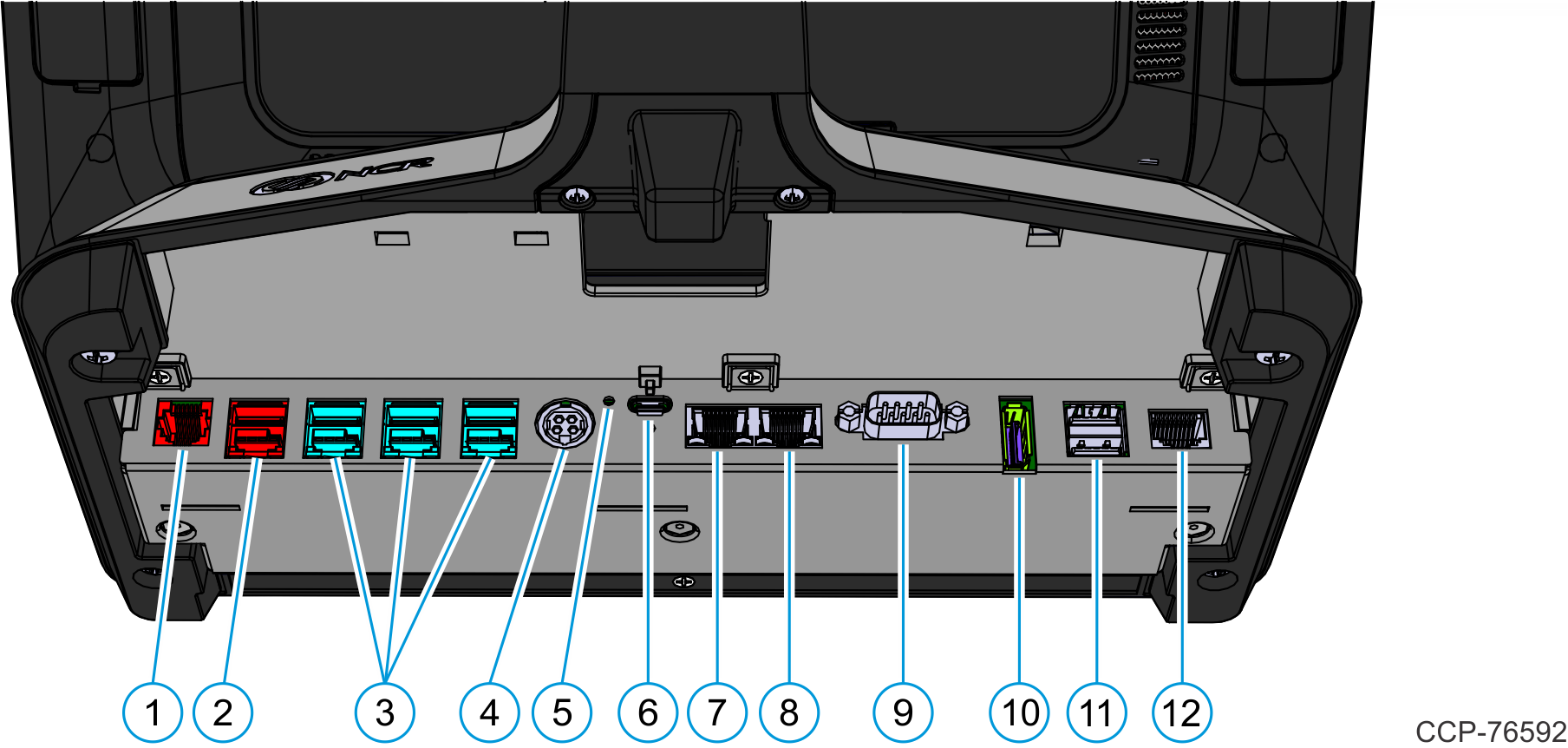

The following are the default I/O ports for the NCR Voyix CX7 All-in-One POS (7772) with a USB Centric I/O (Retail) Base.
| Callout | Port Name |
|---|---|
| 1 | Cash Drawer |
| 2 | USB 24V |
| 3 | USB 12V |
| 4 | 24V Power In |
| 5 | Status LED |
| 6 | USB-C |
| 7 | LAN Out Note
Connect to the CX Head |
| 8 | LAN In Note
Connect to Ethernet Network |
| 9 | DB9 Serial (Standard UART) |
| 10 | DisplayPort |
| 11 | Dual USB 3.0 |
| 12 | RJ50 Serial (Enhanced UART) |
