Installing the Remote I/O Board (Plastic Chassis)

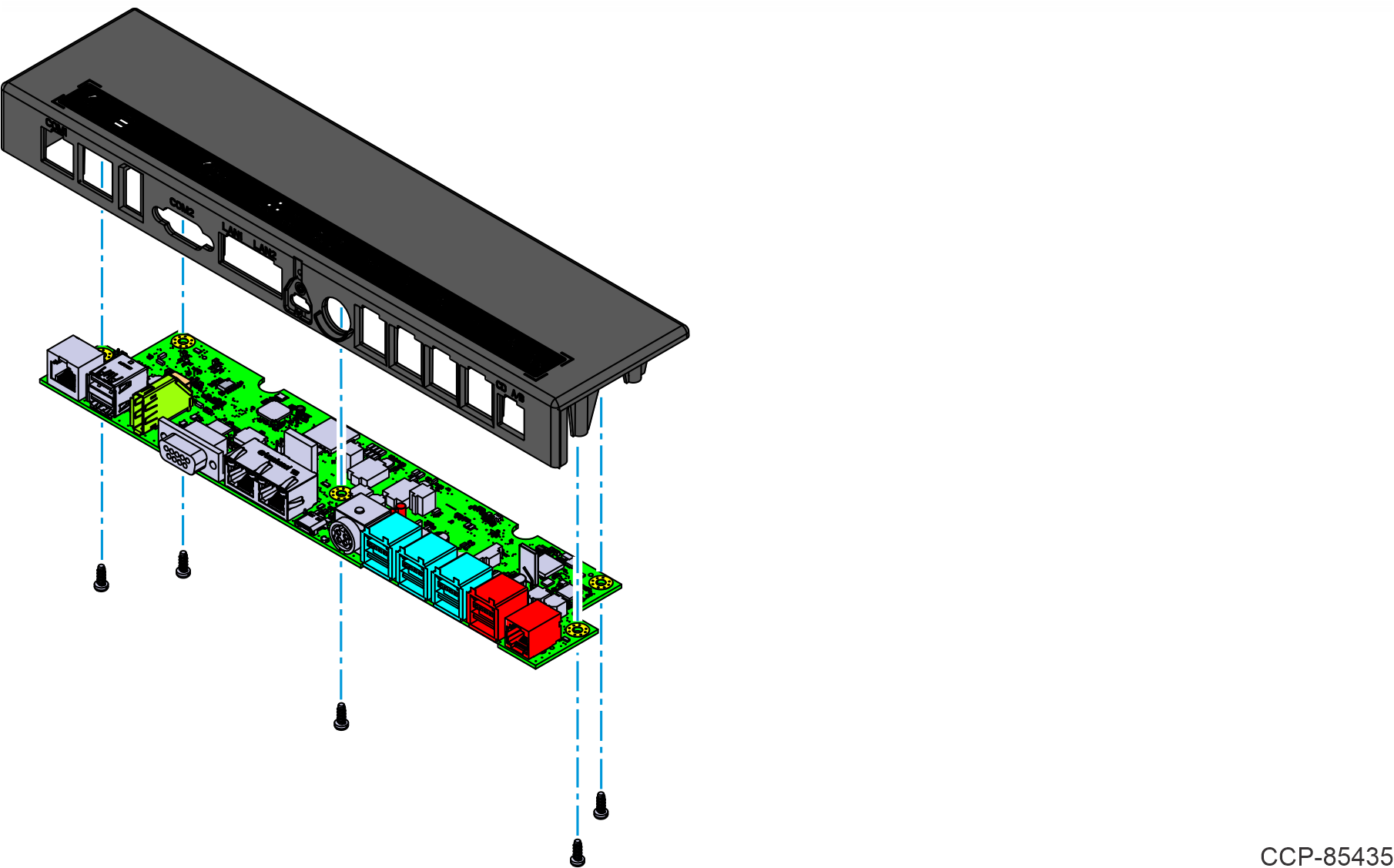

1. Install the I/O Board on the Plastic Chassis with five (5) T10 Torx screws.

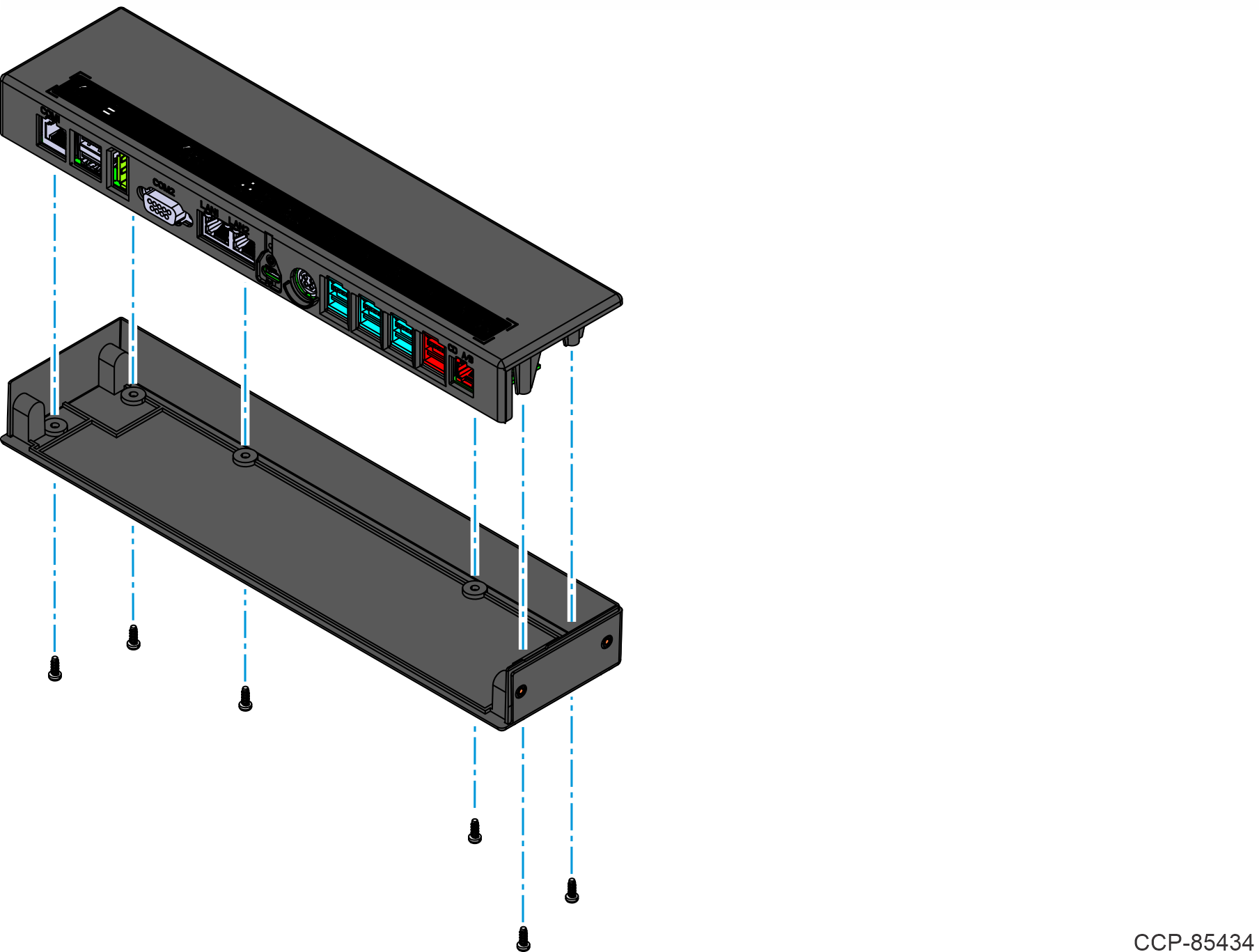

2. Install the Bottom Plate on the Plastic Chassis with six (6) T10 Torx screws.

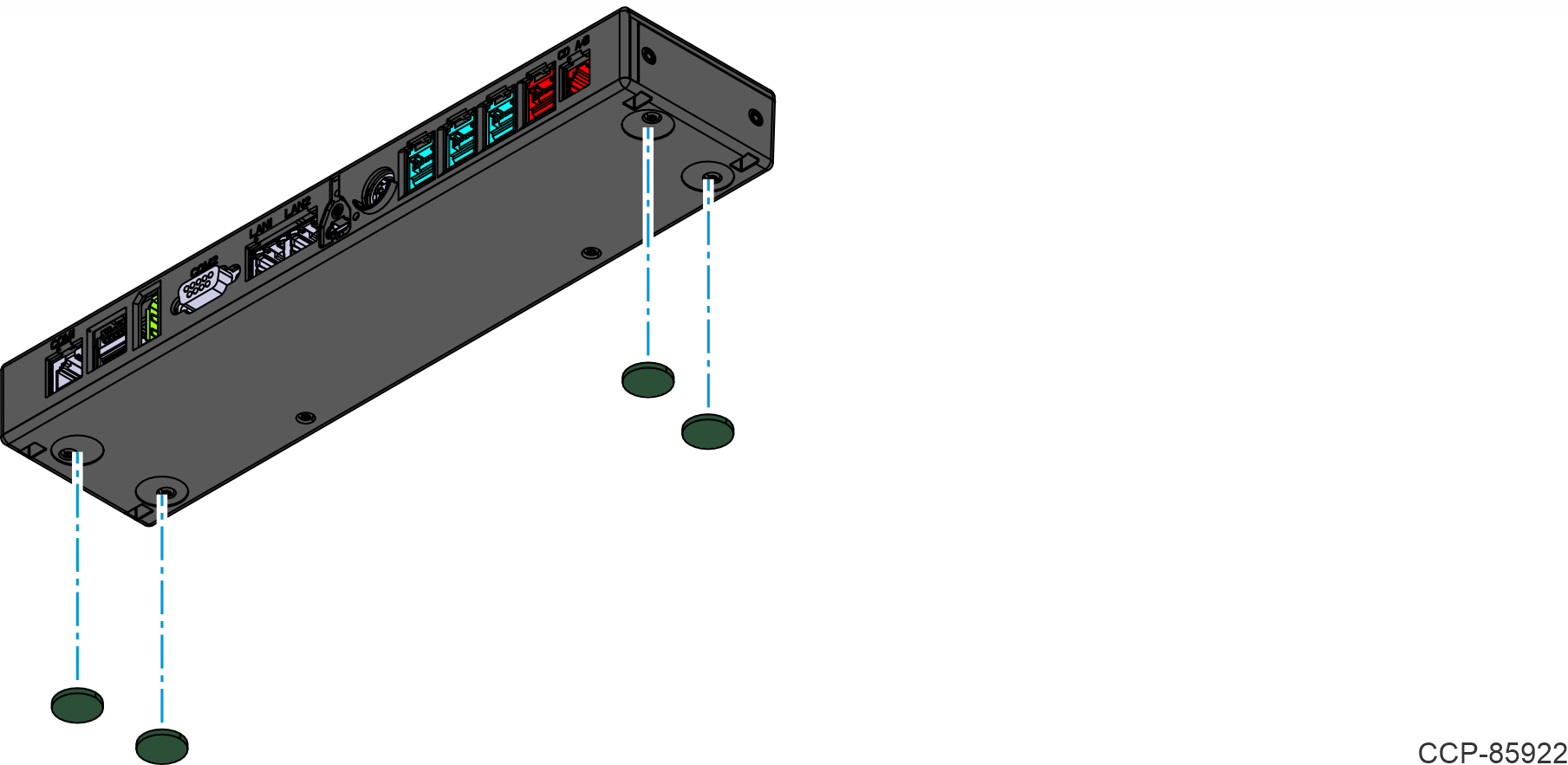

3. Carefully reinstall the four (4) rubber feet on the bottom of the Remote I/O Box. Use the aligning recesses to properly position the rubber feet on the bottom of the Remote I/O Box.
