Power In

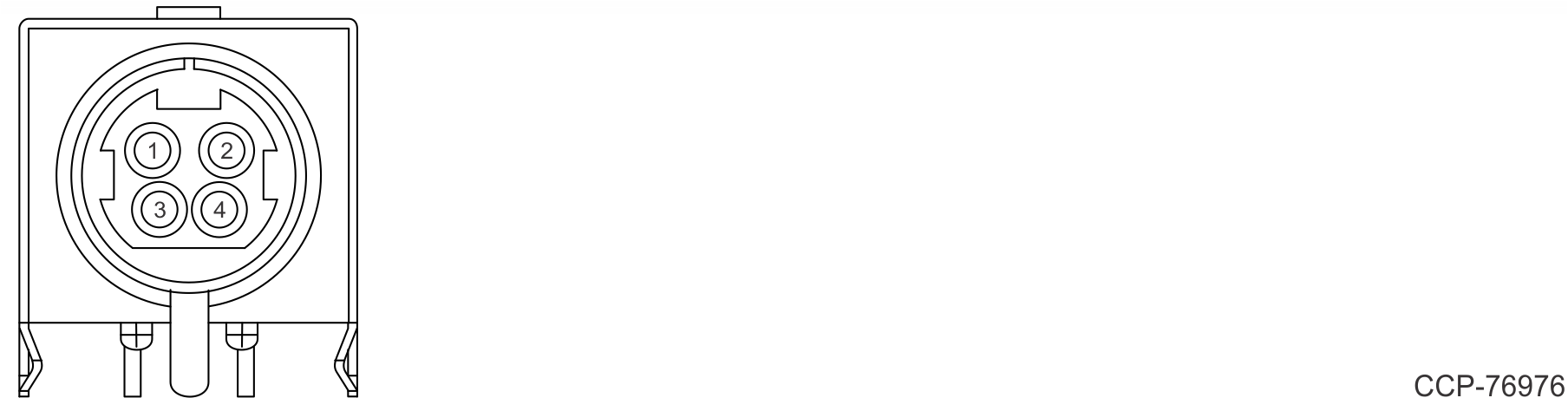

Both USB Centric and Serial Centric I/O Boards accept +24V DC voltage input from an external power supply. The Power In connector is a 4-pin DIN - CUI PD-40S or equivalent.

PinSignal Name
1GND
224V
3GND
424V
