Cash Drawer
Cash Drawer Connector for USB Centric I/O

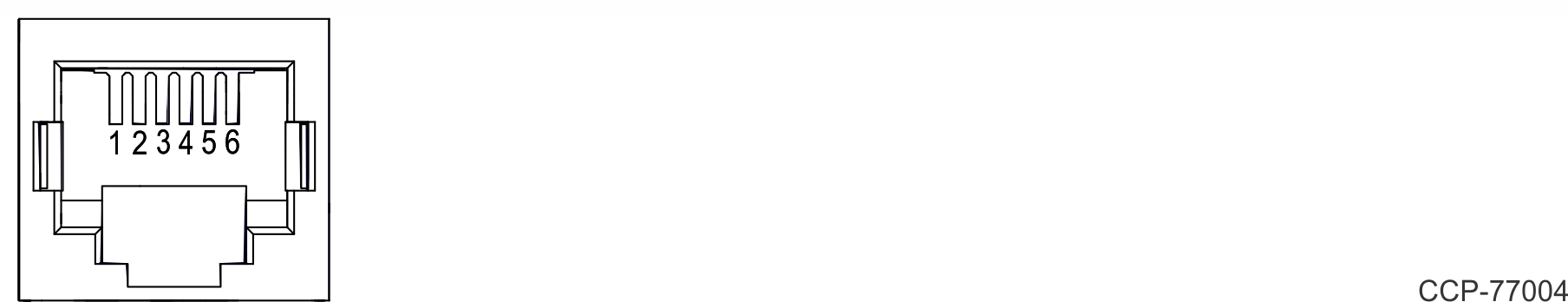

The USB Centric I/O Board provides a single 6-position RJ12 connector (Molex 44248-0065 or NCR Voyix approved equivalent).
| Pin | Signal Name |
|---|---|
| 1 | Frame Gnd |
| 2 | Solenoid A |
| 3 | Drawer A/B |
| 4 | +24V/12V |
| 5 | Solenoid B |
| 6 | Logic Gnd |
Cash Drawer Connector for Serial Centric I/O
The Serial Centric I/O Board provides a dual package RJ12 connector. The color of the connector is red.
| Pin | Signal Name |
|---|---|
| 1 | Frame Gnd |
| 2 | Solenoid A |
| 3 | Drawer A/B |
| 4 | +24V/12V |
| 5 | NC |
| 6 | Logic Gnd |
