Motherboard Connector Pinouts

LAN and USB 3.1

The Motherboard provides 10/100/Gb LAN support using Intel I219 “Jacksonville” with Wake on LAN support. Intel vPro support is available when an appropriate processor is installed.

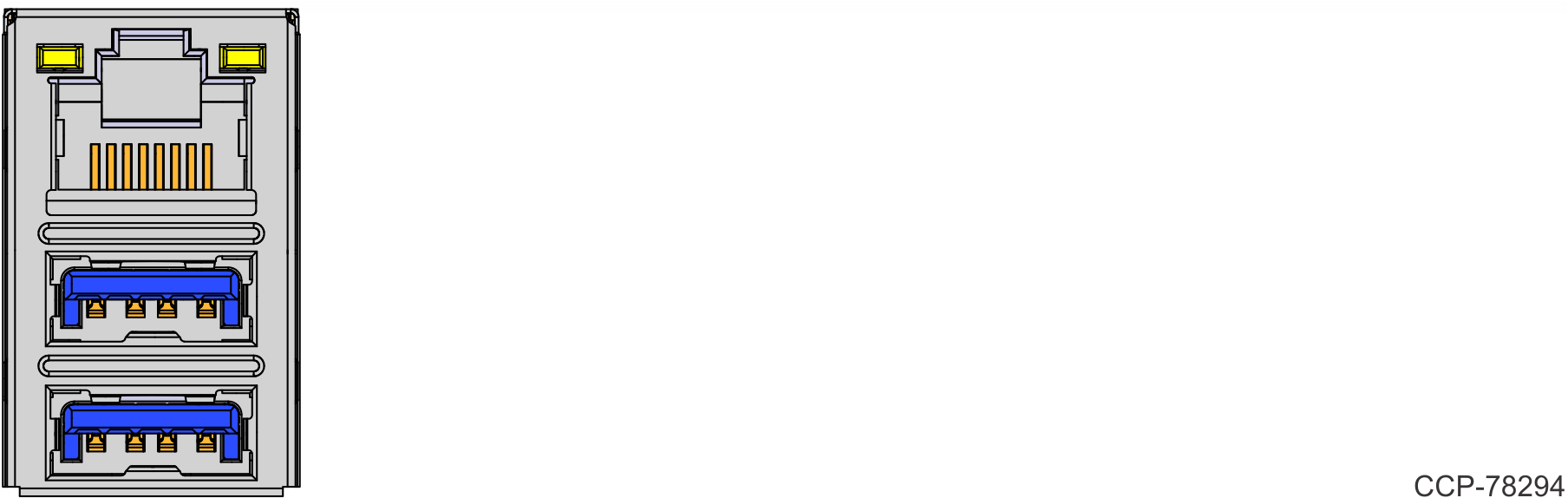

An Amphenol RJMG241156670ER-B combo LAN plus dual USB 3.1 through-hole connector supports both Ethernet and USB 3.1 connectivity.

The connector features an integrated magnetic module and two LEDs. The LED on the right is yellow and indicates Link/Activity when lit/flashing. The LED on the left is bi-color and indicates the following when the yellow LED on the right side is lit.
