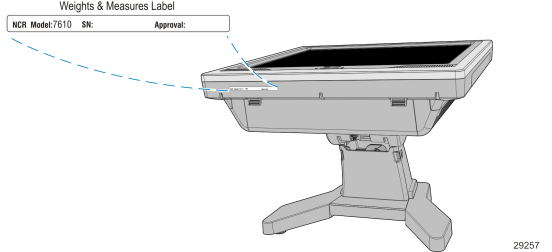

Label Locations

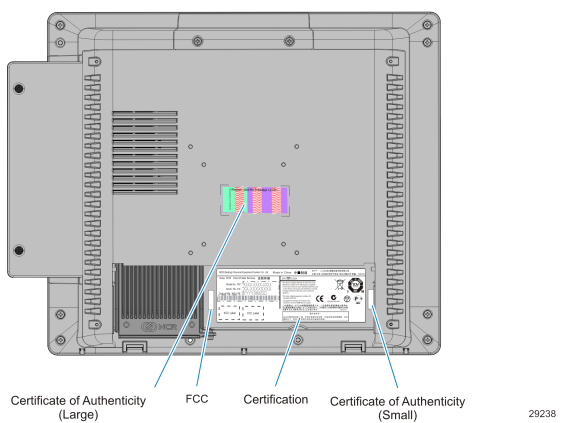

The serial number and model number are included on the Certification Label located under the Cable Cover of the terminal. A Microsoft Certificate of Authenticity (COA) label is included if the terminal is ordered and shipped with a pre-installed Microsoft Operating System. There are two types of Microsoft COA stickers. Depending on the Microsoft Operating System ordered the label is located on either the Back Cover for XP Professional and Windows 7 OR next to the Certification Label under the Cable Cover for XP Embedded, WEPOS, POSReady 2009, and POSReady 7.
