Printing receipt images

The POS application can be configured to print a bitmap image or a QR code with its corresponding URL on the header of the receipt. Bitmap images and QR codes can be printed on receipts for sale, receipted retrun, non-receipted return, and exchange transactions.

Using EOM parameters, retailers can configure the position of the image on the receipt header, the image location or associated URL, and the specific type of transaction receipt where the image is printed.

Configurable features

The POS application can be configured with the following features.

• Specify the bitmap or QR code to print on the receipt. Refer to the following option:
  •  Receipt Images > Sequence Number

Sample receipts

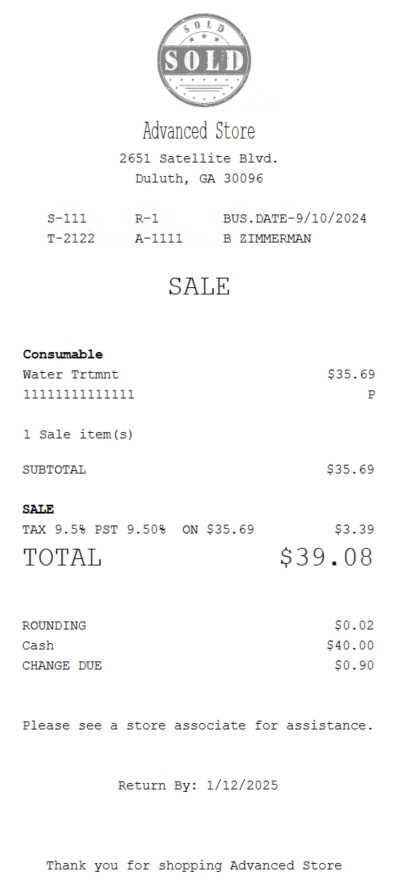

The following image displays a bitmap image before the header on a Sale receipt.

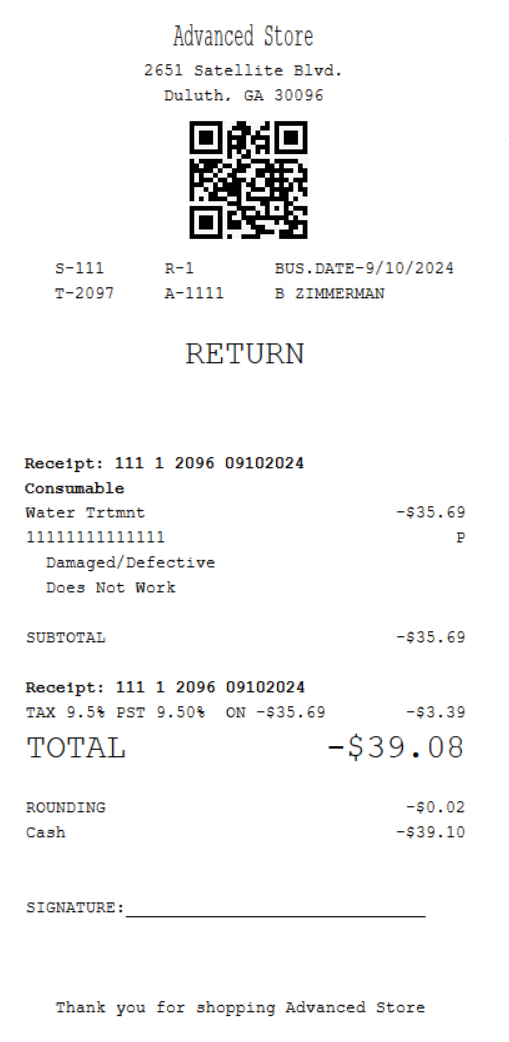

The following image displays a QR code after the header on a Return receipt.
