TCP/IP Setting
This section provides information on configuration parameters and default values for the TCP/IP setting.

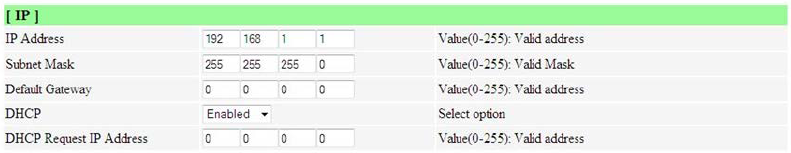

IP setting
| Items | Default value | Detail |
|---|---|---|
| IP Address | 192.168.1.1 | Set Printer IP Address. This IP Address is effective when Get IP Address is Manual. |
| Subnet Mask | 255.255.255.0 | Set Printer Subnet Mask. This Subnet Mask Address is effective when Get IP Address is Manual. |
| Default Gateway | 0.0.0.0 | Set Printer Default Gateway. This Subnet Mask Address is effective when Get IP Address is Manual. |
| Get IP Address | Manual | Select method of acquiring IP Address. Selectable method is Manual or DHCP base on the Printer Dip Switch Setting. If Printer Dip Switch 1 OFF and Dip Switch 2 OFF, Manual mode is selected. If Printer Dip Switch 1 ON and Dip Switch 2 ON, DHCP mode is selected. |
| DHCP IP Address | 0.0.0.0 | Set requesting specific IP address to DHCP server. If set 0.0.0.0, DHCP sever allocates printer IP address automatically. |
Note
IP addresses that cannot be set with Ethernet model printer are the following:
- 255.255.255.255 (Broad cast address)
- Local loopback address
- 127.***.***.***—this is the IP Address to send to oneself and *** is any value from 0 to 255.
