Diagnostic Modes

This function enables the user to put the printer into the following diagnostic modes:

•OFF, Normal Mode—sets the normal operating mode of the printer.

•Datascope Mode—sets the receipt printer to print incoming commands and data in hexadecimal format.

•Slip test Mode—sets the slip printer to print two code pages.

•Receipt Test Mode—sets the receipt printer to print two code pages.

•MICR Test Mode—sets the receipt printer to print all characters recognized by the MICR.

•Check Flip Test Mode—sets the check flip mechanism to flip an inserted check.

•Print Head Test Mode Mode—sets the slip printer to print several lines of rolling ASCII even if the receipt cover is open.

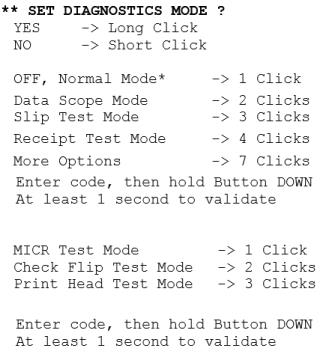

The diagnostic modes are enabled or disabled by using the Configuration Menu. For more information about how to enter the Configuration Menu, refer to Configuring the Printer.

Note:  To select a diagnostic mode, press the Paper Feed button.
