9700-0092-7772 Remote I/O Chassis (Hospitality)
This publication provides instructions for installing the Remote I/O Chassis (Hospitality) for the NCR CX7 All-in-One POS (7772) or NCR CX5 All-in-One POS (7773).

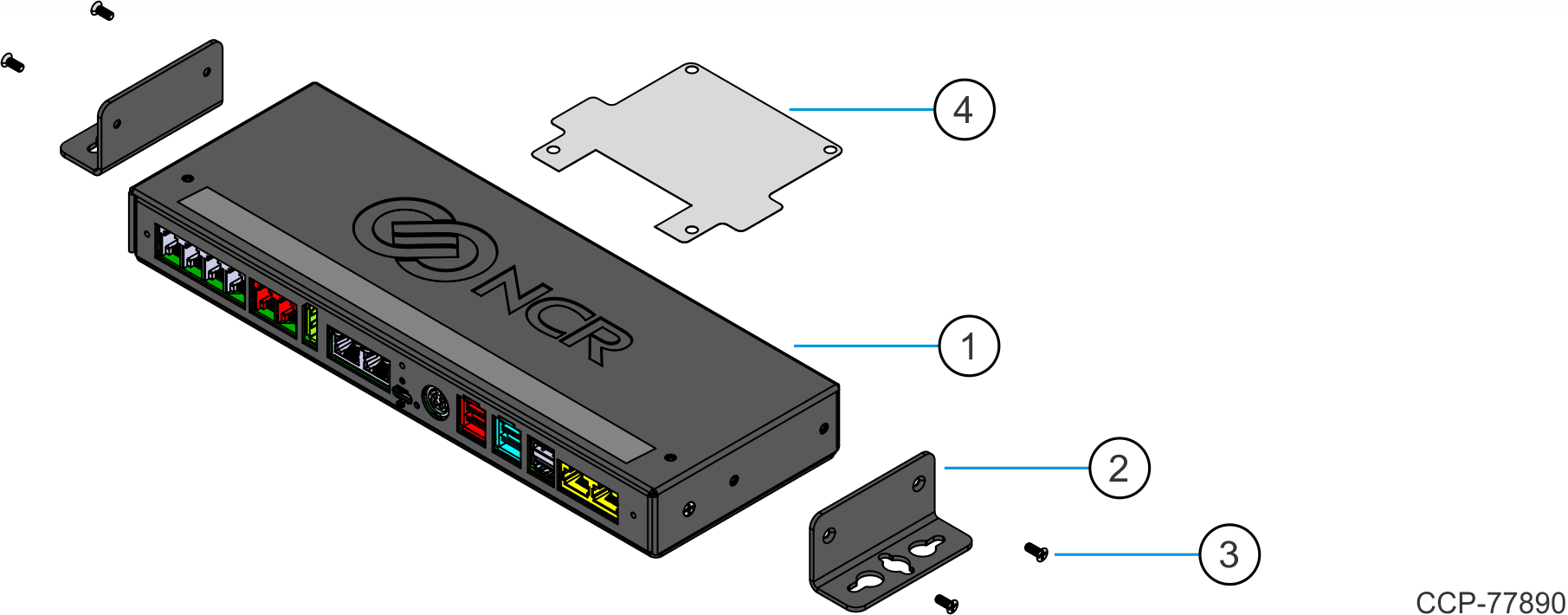

| Item | Part Number | Description |
|---|---|---|
| 1 | Remote Serial Centric I/O (Hospitality) Chassis Assembly | |
| 497-0526508 | Bottom Plate, Remote I/O, CX7 | |
| 497-0526509 | Casing, Remote I/O, CX7 | |
| 497-0526510 | Remote I/O Plate and Shield, HSR, CX7 | |
| 497-0467780 | Foot, Rubber, 7600 | |
| 497-0525263 | PCB Assembly – CX7 I/O Board, HSR | |
| 006-8617798 | Screw, M3 x 8mm Machine, Phillips, Flat, Black | |
| 006-8613167 | Screw, M3 x 6mm, SEMS, Pan Head, Phillips, Machine Screw External Tooth Washer, Zinc Plate | |
| 497-0527119 | Label, CX7 Remote I/O, Hospitality | |
| 2 | 497-0526512 | L-Shaped Bracket, CX7 |
| 3 | 006-8617798 | M3 x 8mm Machine, Phillips, Flat, Black |
| 4 | 497-0527274 | Label, Vesa Flame Retardant, Black |
