Installing the Sensormatic Antenna

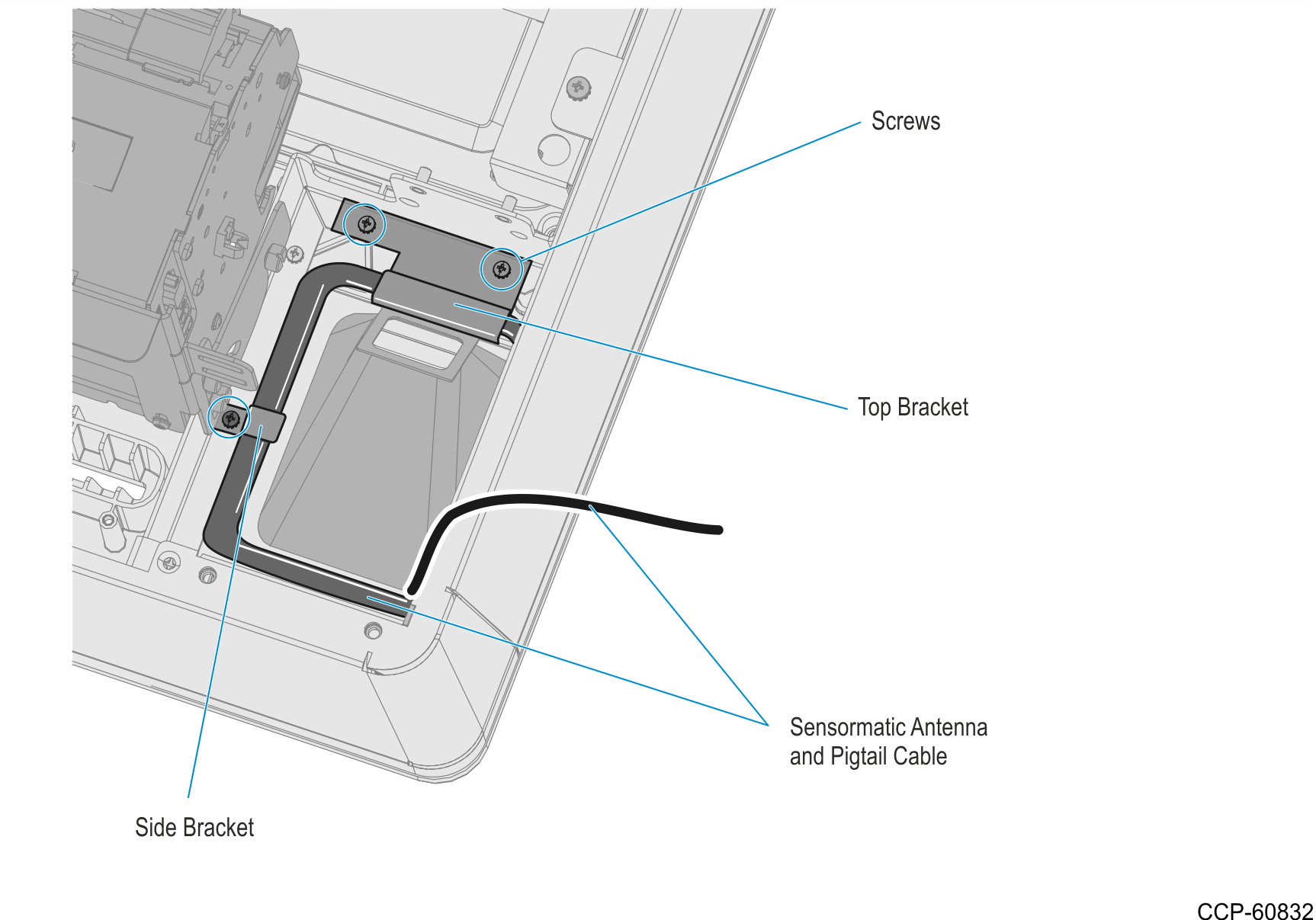

1. Place the Sensormatic antenna over the imager funnel with its pigtail cable sticking out at the lower-right hand corner of the Display Head Assembly. Secure the antenna with the top and side brackets.

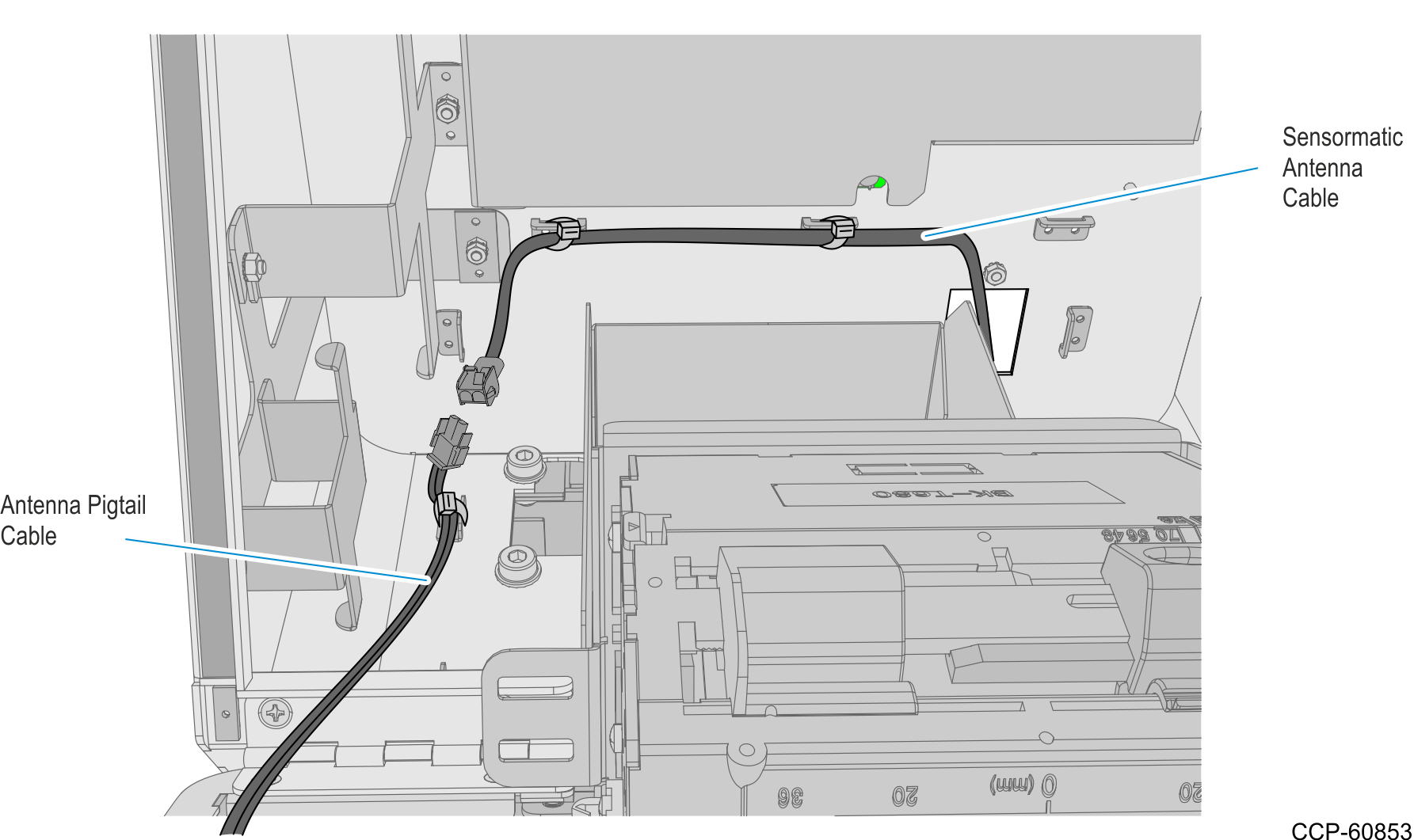

2. Route the antenna Pigtail Cable into the cabinet at the space on the left-hand side of the coupon bin and plug the Pigtail Cable to the Sensormatic Antenna Cable. Cable tie the pig tail cable as shown below.
