Installing the Rear Display Enclosure

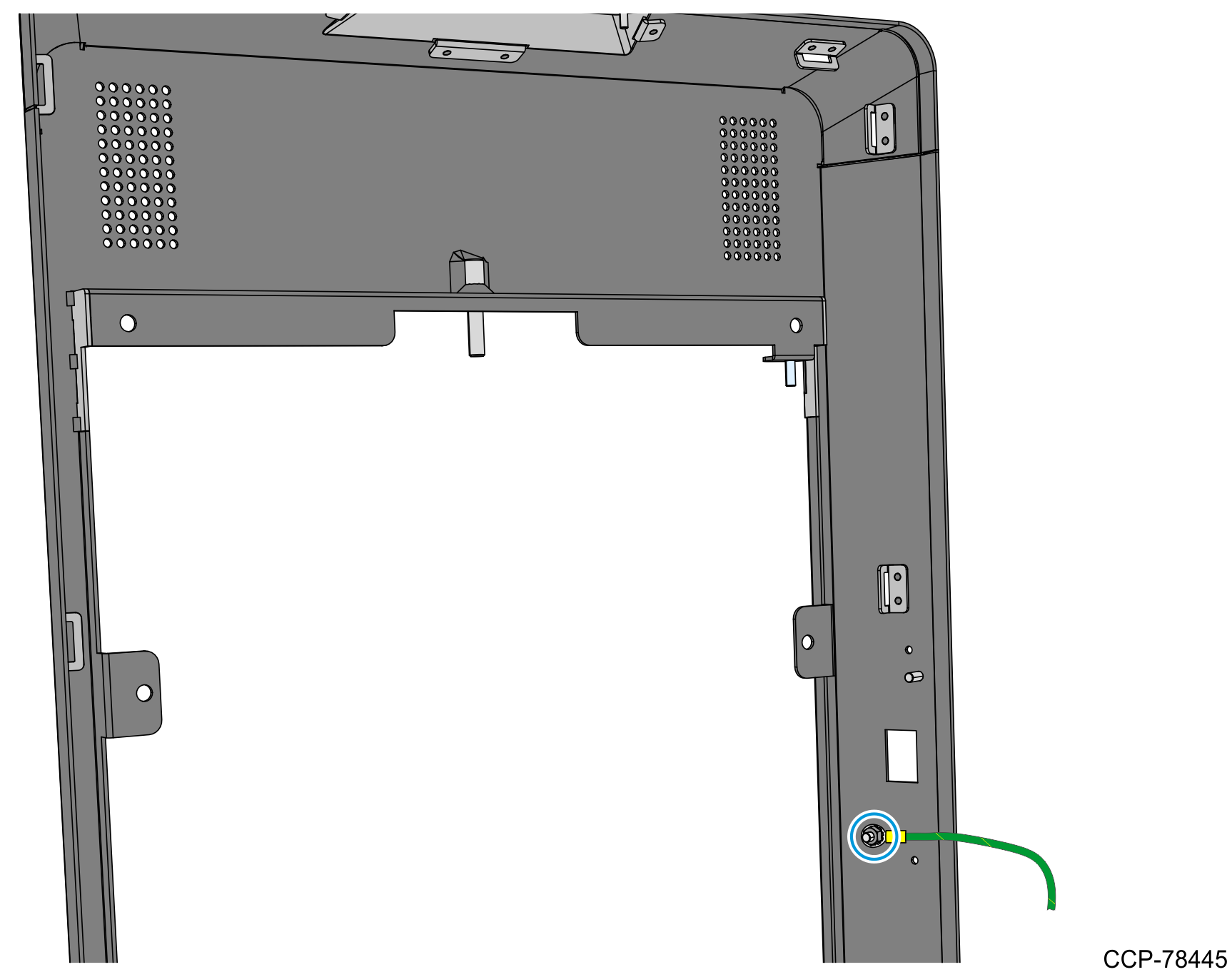

1. Using a new M4 nut, mount a 12-inch grounding cable on the inner right side of the Display enclosure as shown in the following image.
   Note

   Units with PID 7709-2200-8090, 7709-2300-8090, 7709-8600-0001, 7709-8600-0002 do not need to perform this procedure. Skip to the next step.



2. Lower the Rear Display Enclosure onto the Display Head and secure it with four screws and two nuts.
   Caution

   Be careful not to pinch the Grounding Cable.



3. Using the four screws, attach the hinge to the Rear Display Enclosure.



4. If the kiosk has an MSR, connect the MSR Cable to the MSR Extension Cable.

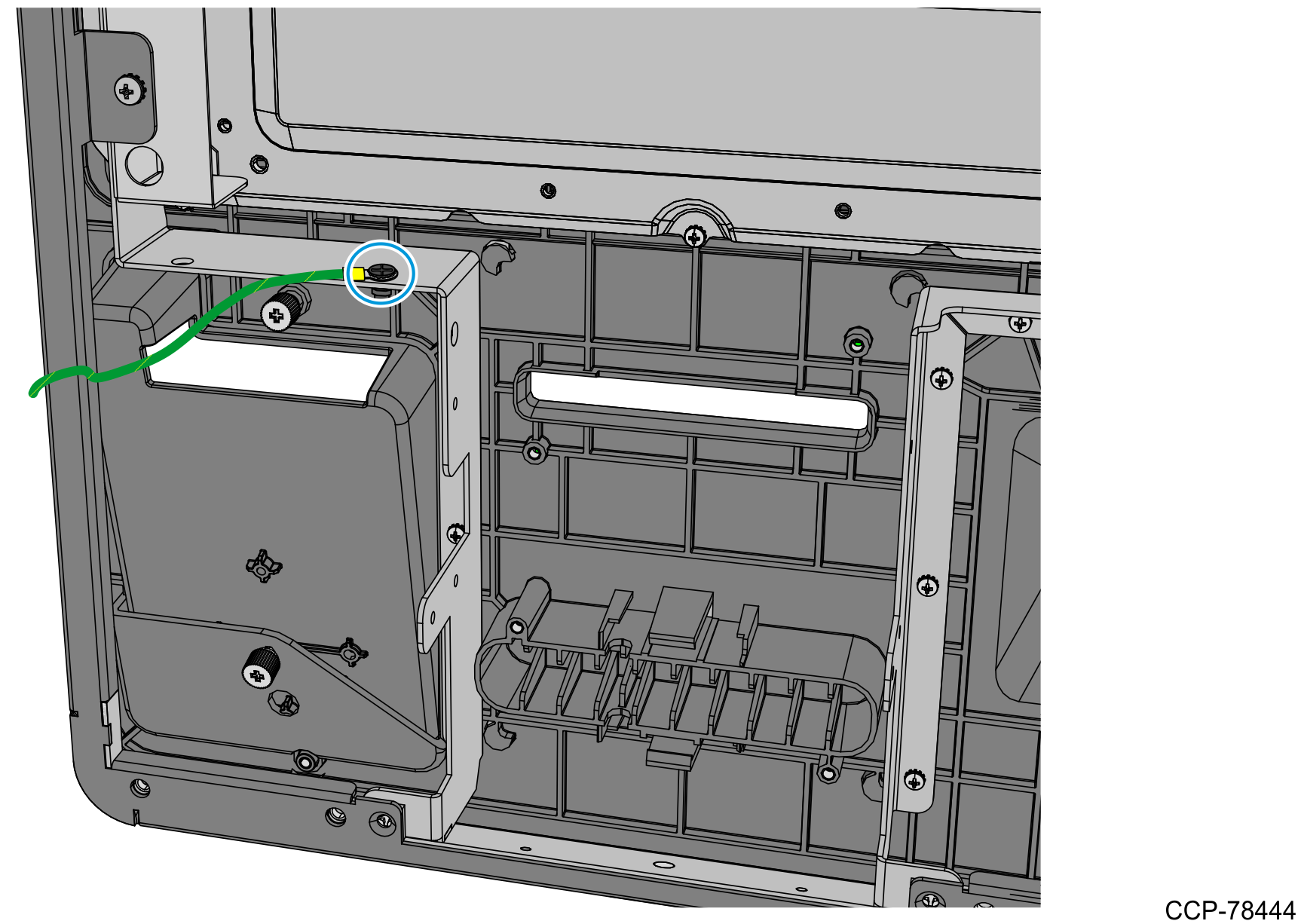

5. Using an 8-mm long M4 screw and nut found inside the accessories bag, attach a 12-inch grounding cable to right bracket hole on the left Z-bracket.



   Note

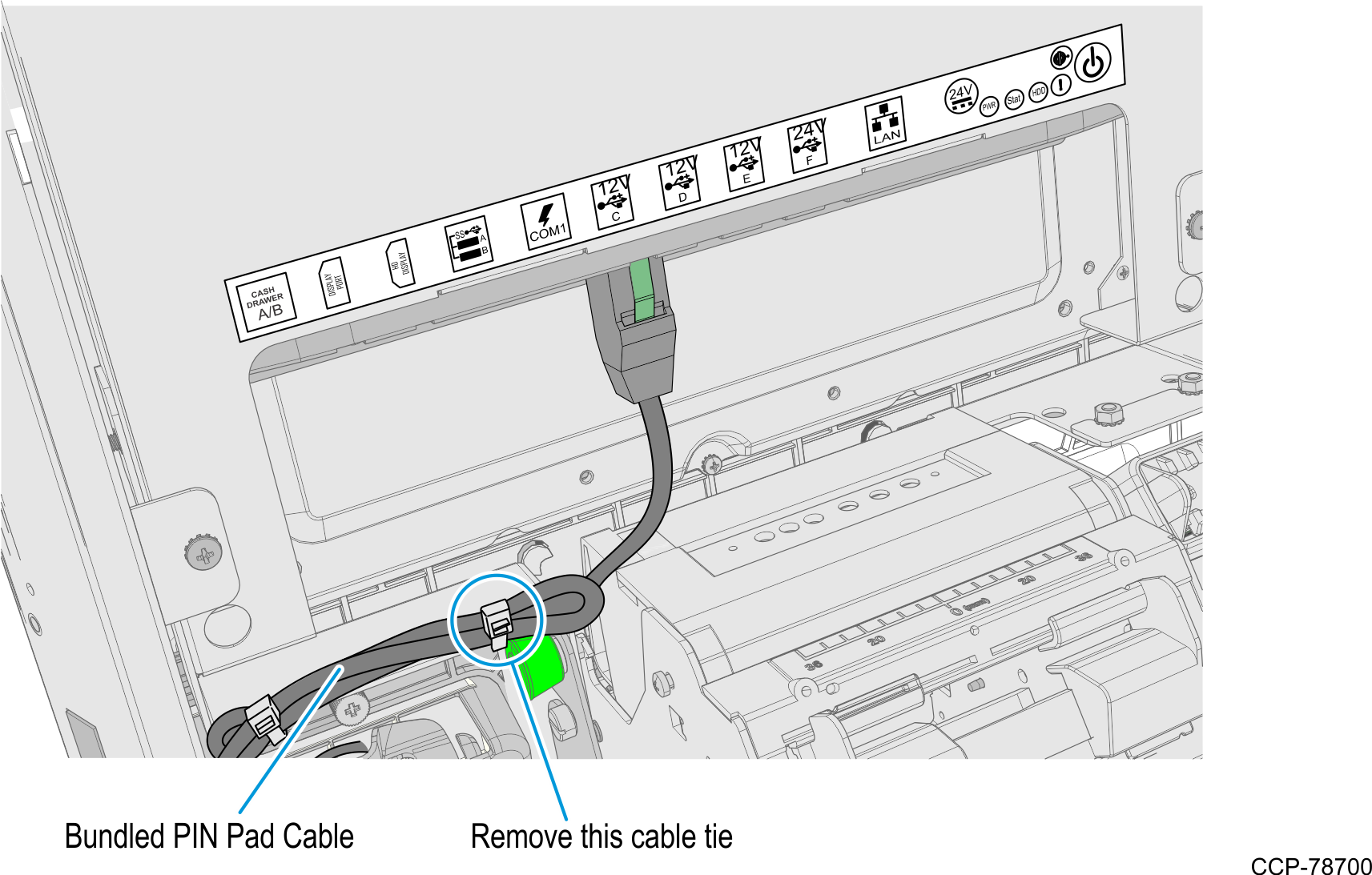

   If a PIN Pad cable is already installed, remove the cable tie that secures the PIN Pad cable to the right bracket hole.
