Installing the Verifone VX805/820 PIN Pad

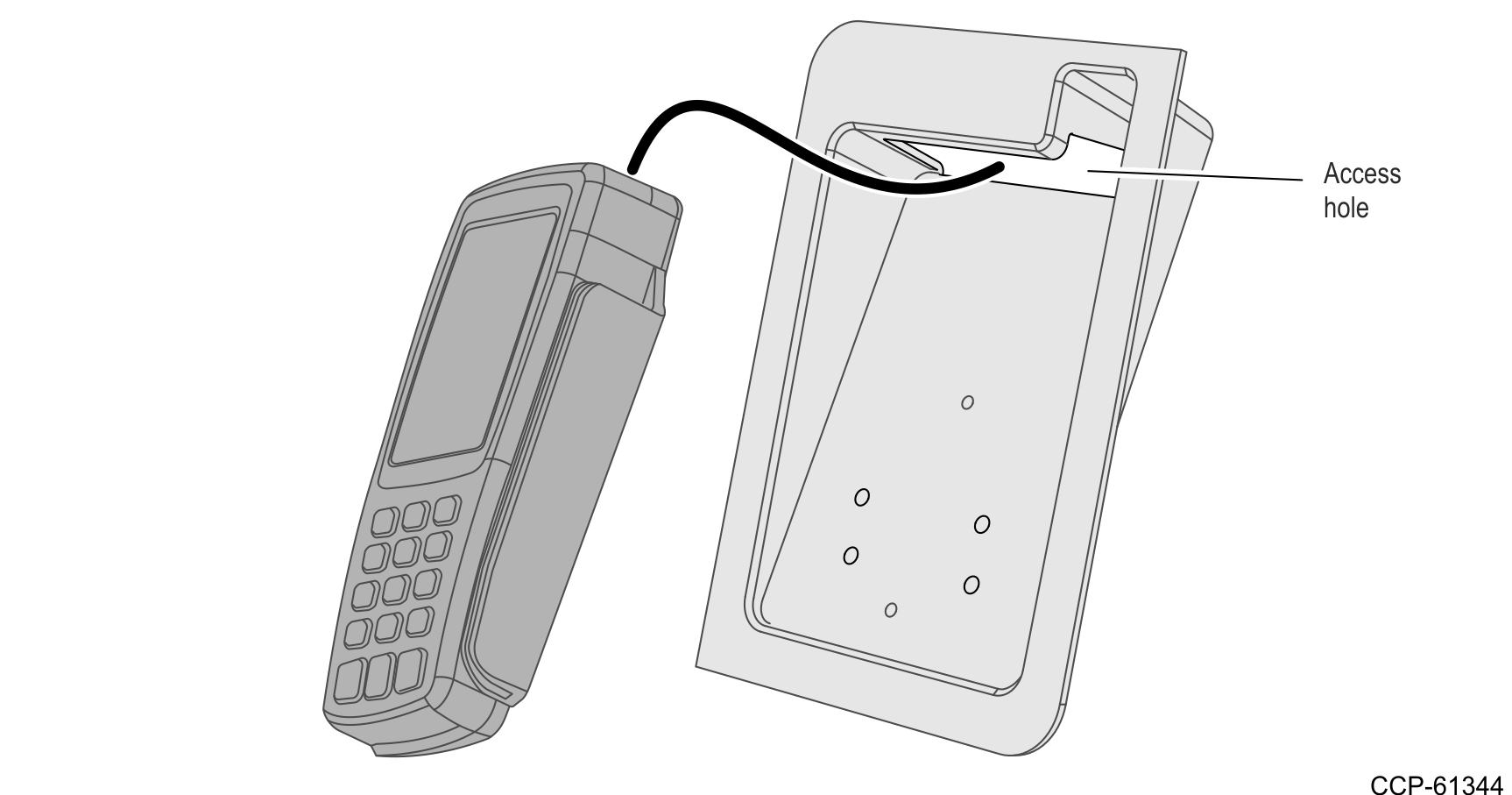

1. Connect the PIN Pad Cable to the PIN pad and route the cable through the access hole on the PIN Pad cradle.

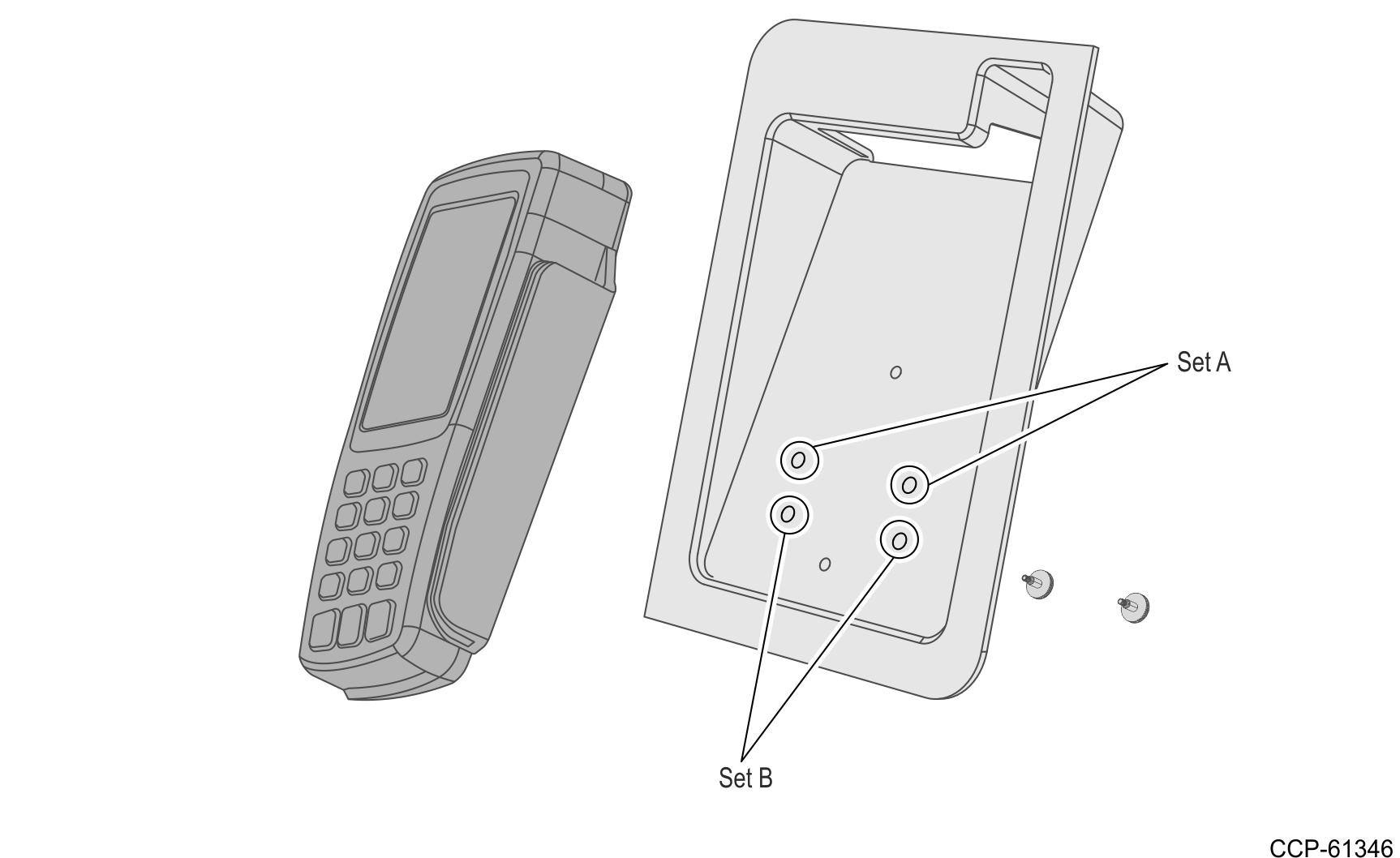

2. Align the PIN pad mounting holes to the appropriate mounting holes set on the PIN pad cradle as shown below and secure the PIN Pad with two screws.
   • Use Set A mounting holes for VX 805 PIN pad.
   • Use Set B mounting holes for VX820 PIN pad.



3. Mount the PIN Pad and Cradle Assembly on the Display head and secure with two thumbscrews.



4. Connect the PIN Pad Cable to the PIN Pad. Cable tie the extra length of the cable as shown below.
