Installing the Ingenico IPP320/350 PIN Pad

1. Position the Mounting Bracket onto the screws, and then tighten the screws.
2. Connect the PIN Pad Cable to the PIN Pad.

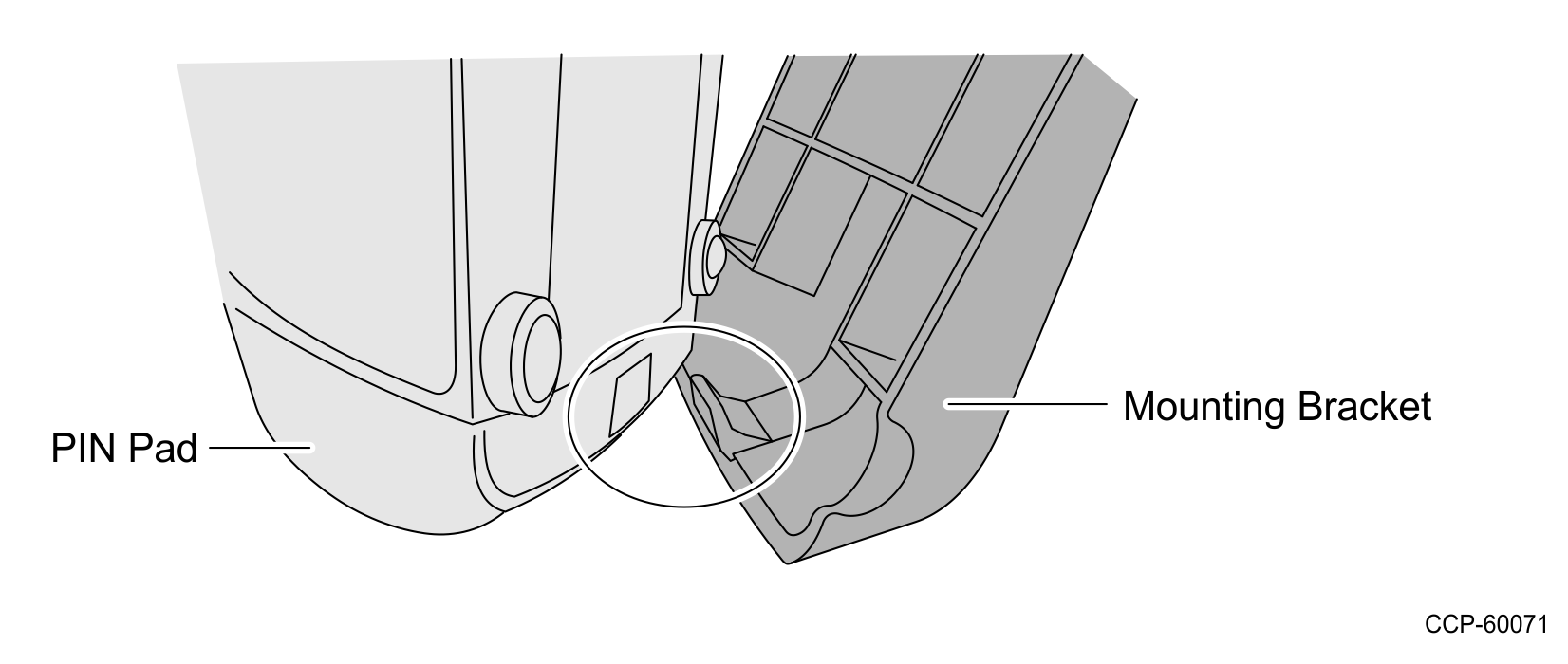

3. Mount the PIN Pad to the Mounting Bracket by aligning the slot on the lower back of the PIN Pad with the small tab on the lower portion of the Mounting Bracket.



4. Push the PIN Pad until it snaps to the upper portion of the Mounting Bracket.
