Installing the Motherboard

  1. Position the Motherboard Tray on the Display Head and secure with 15 screws.

  2. Connect the LVDS, Touch USB, and Camera cables to the Motherboard.

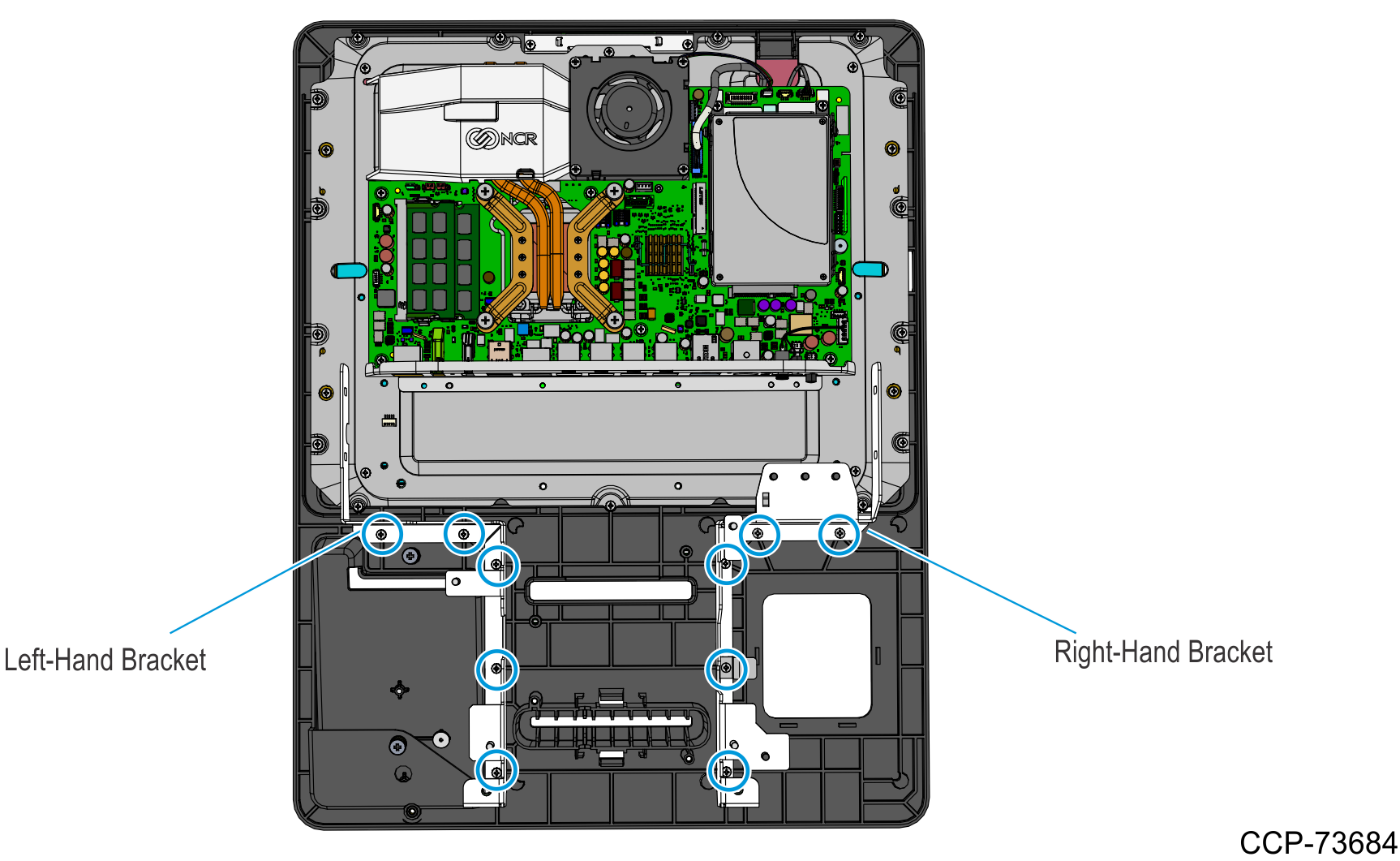

  3. Mount the two Z–shaped brackets using five screws for each bracket.

  4. Install the Motherboard Bracket.

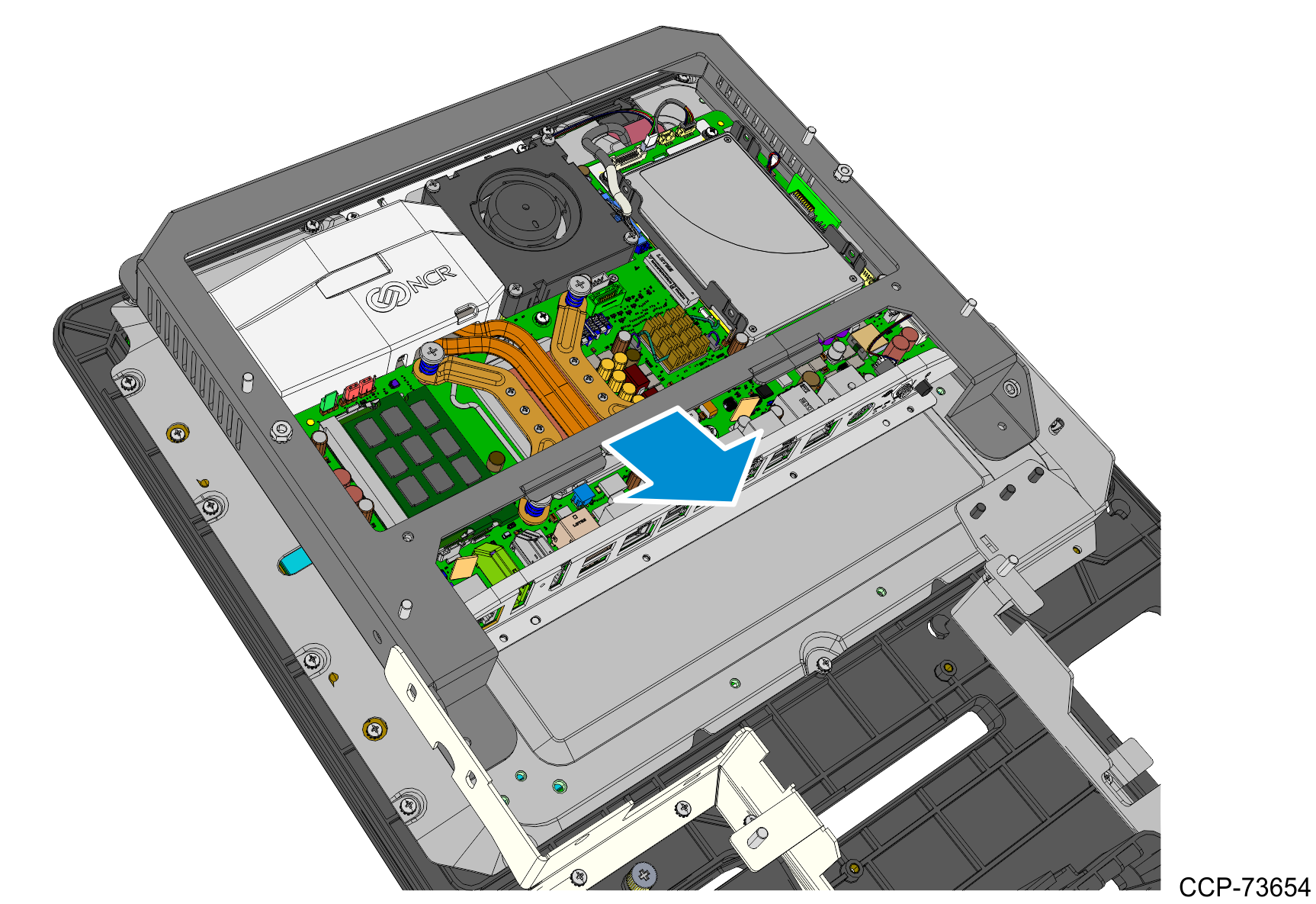

    1. Slide the Motherboard Bracket as shown.

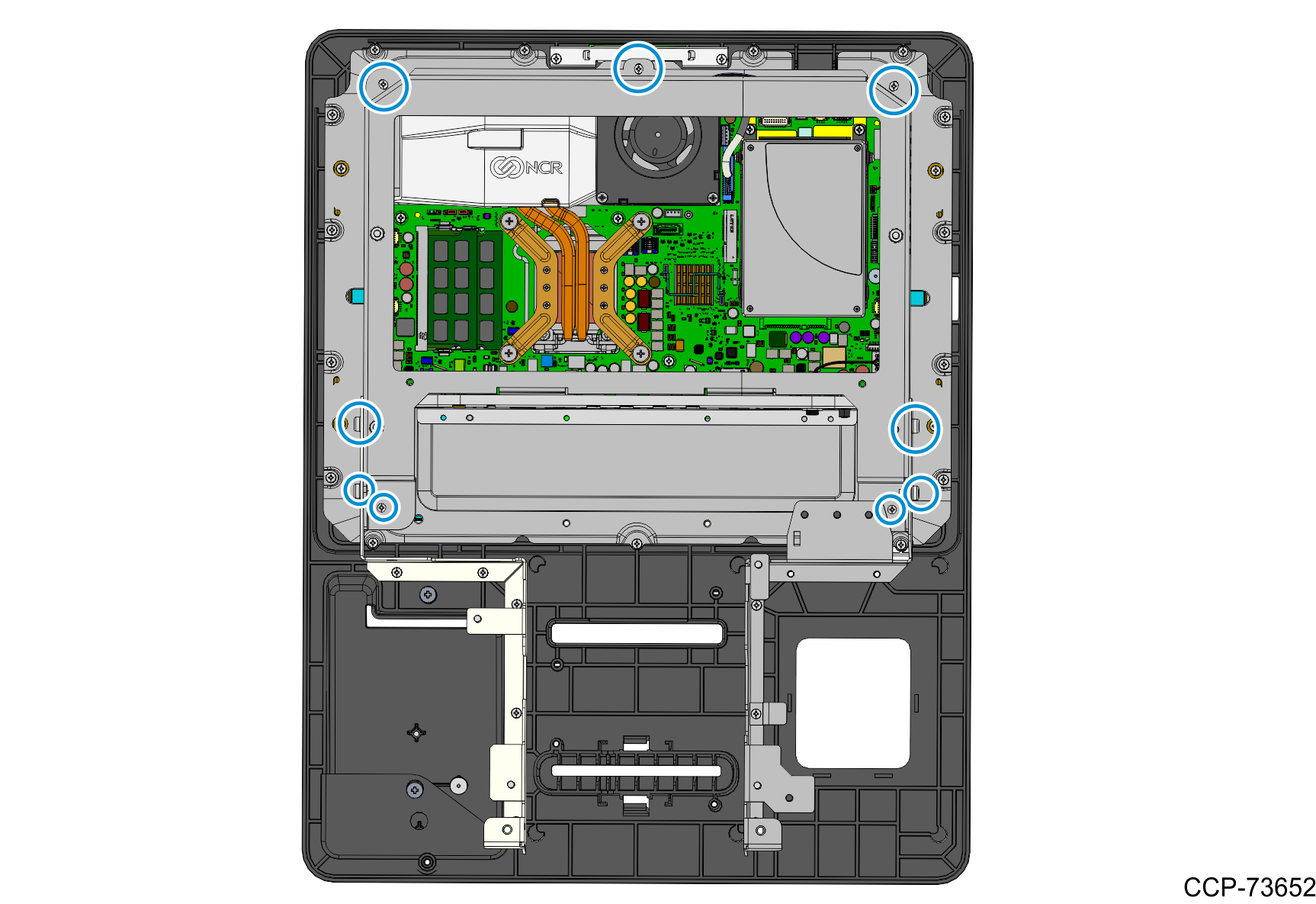

    1. Secure the Motherboard Bracket to the Display Head using the nine screws.

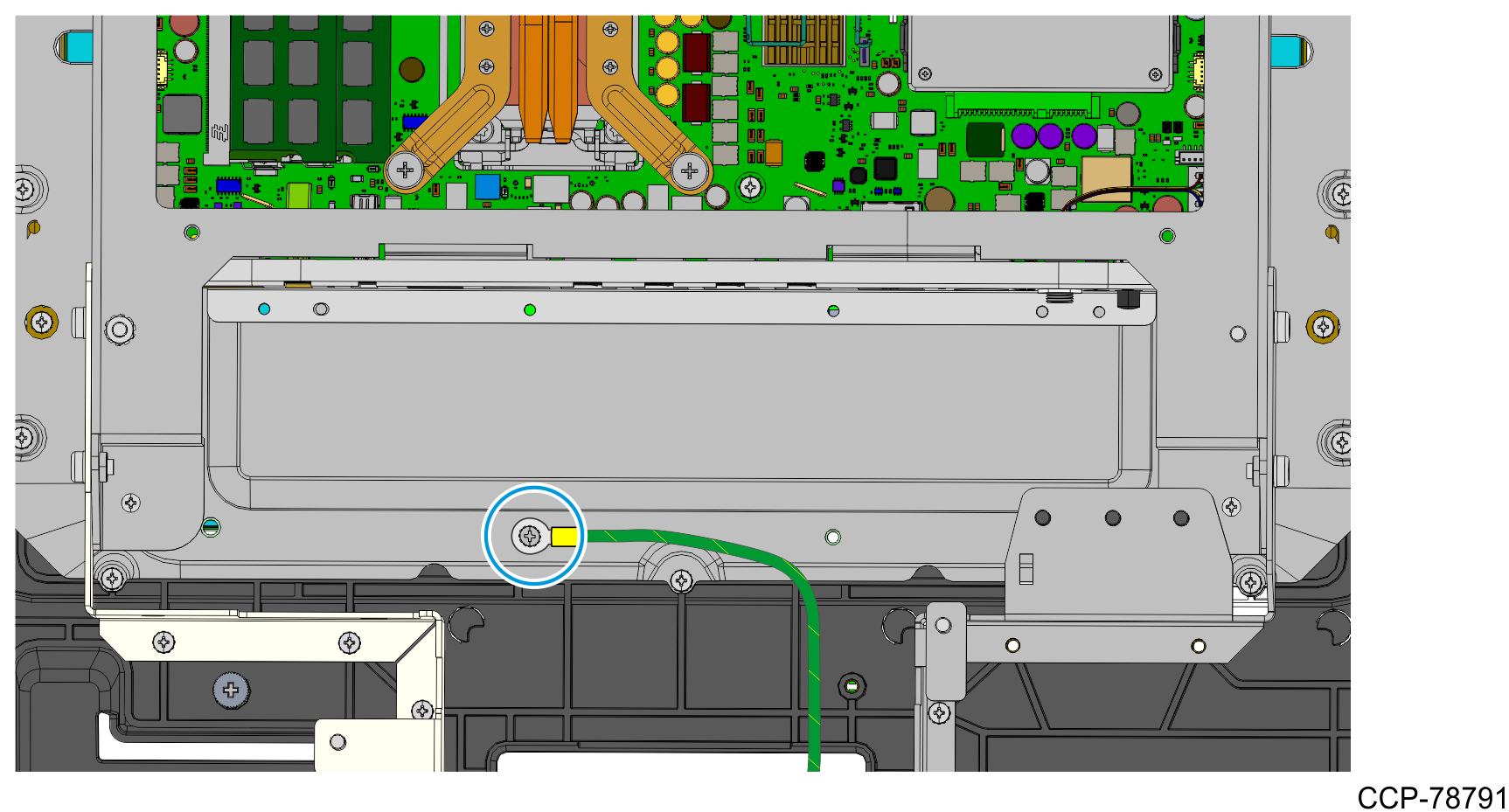

  5. Install the Grounding Cable for the Motherboard Sled using a new M3 screw, as shown in the image below.
