Removing the Imaging Scanner

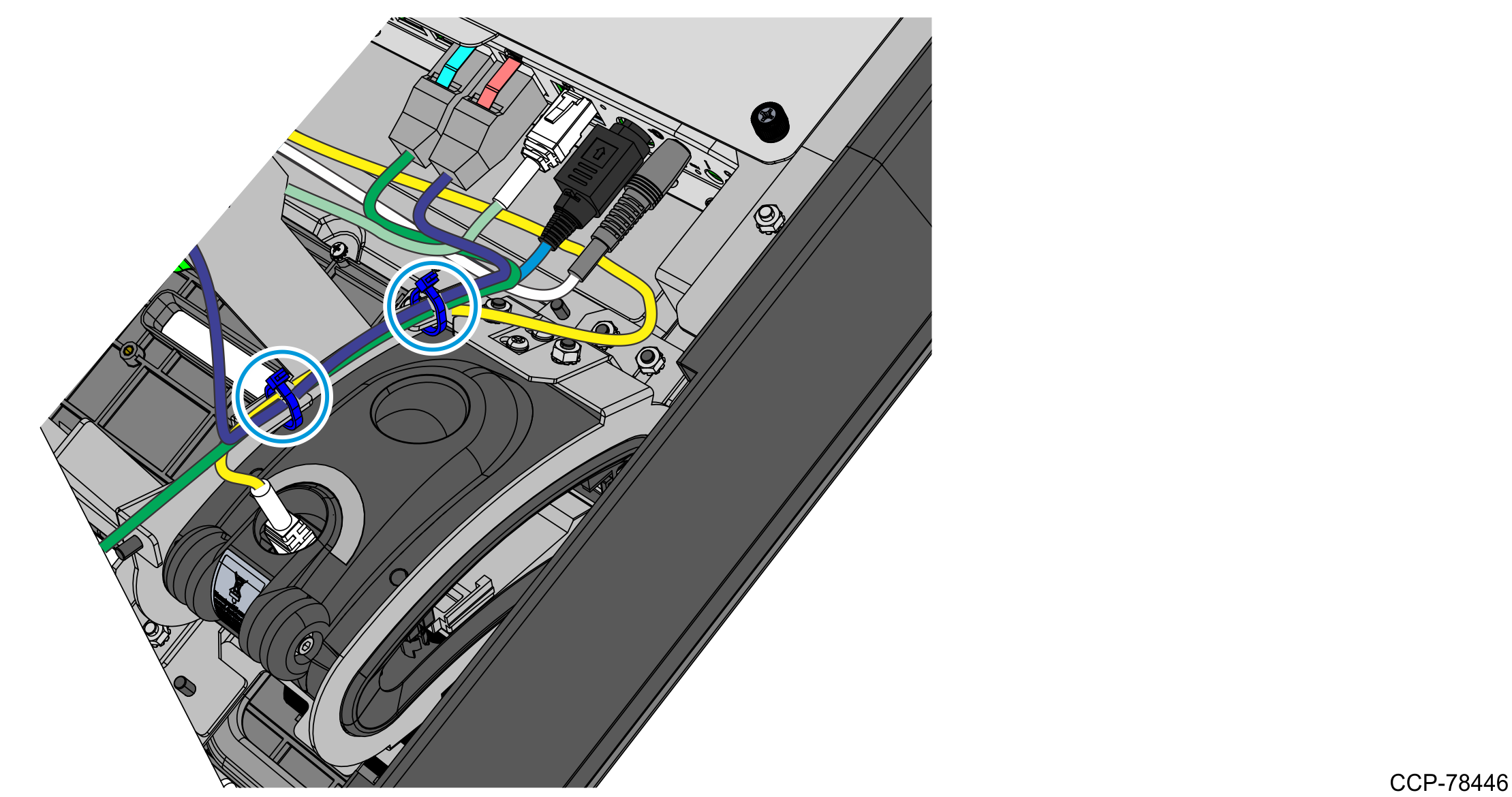

1. Disconnect the Imaging Scanner Cable from the motherboard, and cut off the cable ties securing the cables routed at the back of the scanner.

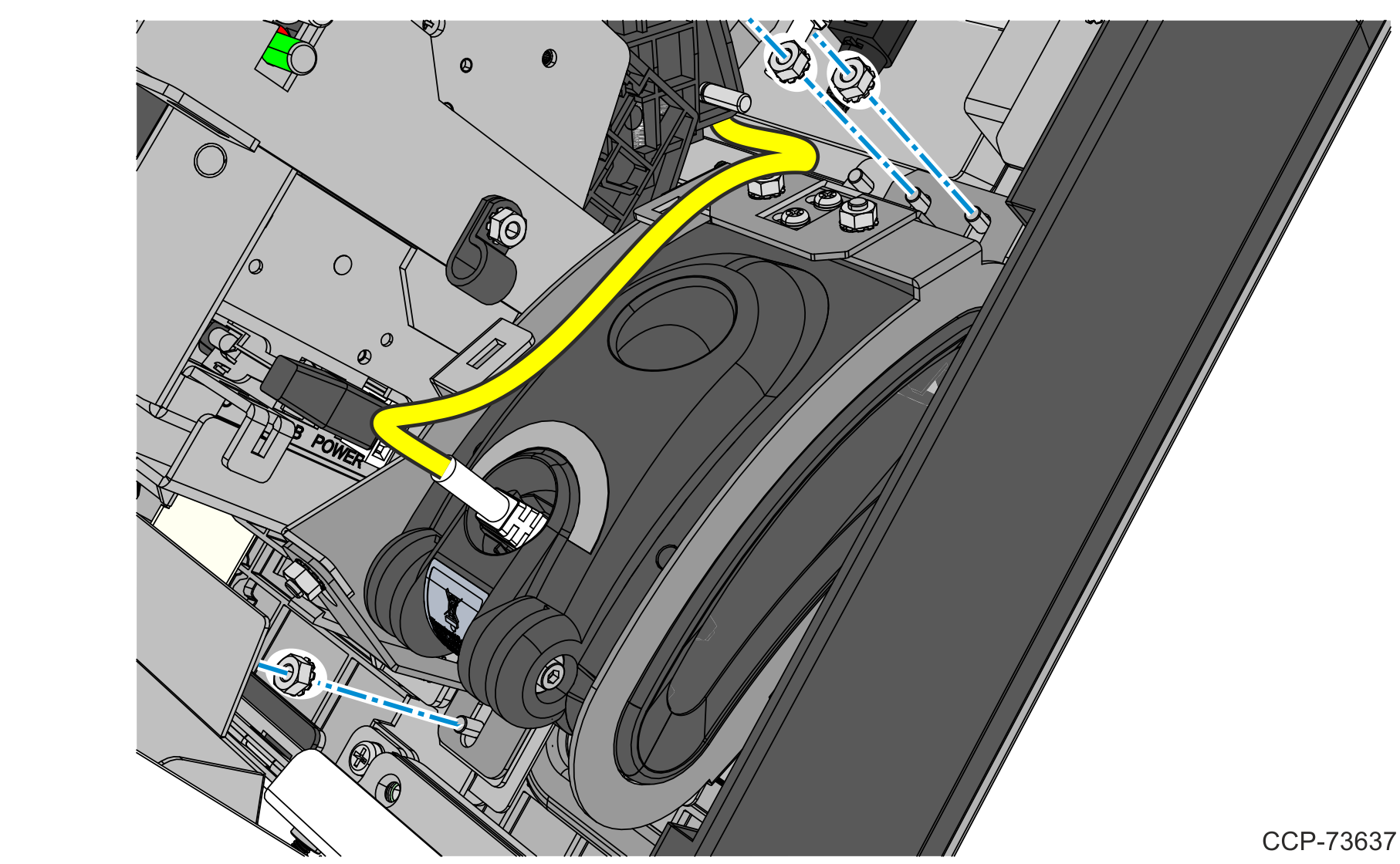

2. Remove the three nuts securing the Imager to the kiosk and then lift the imager out of its mounting area.
