Securing Grounding Cables

1. Secure the other end of the Motherboard Sled Grounding Cable.
   Note

   The Motherboard Sled Grounding Cable is attached during installation of the Motherboard.

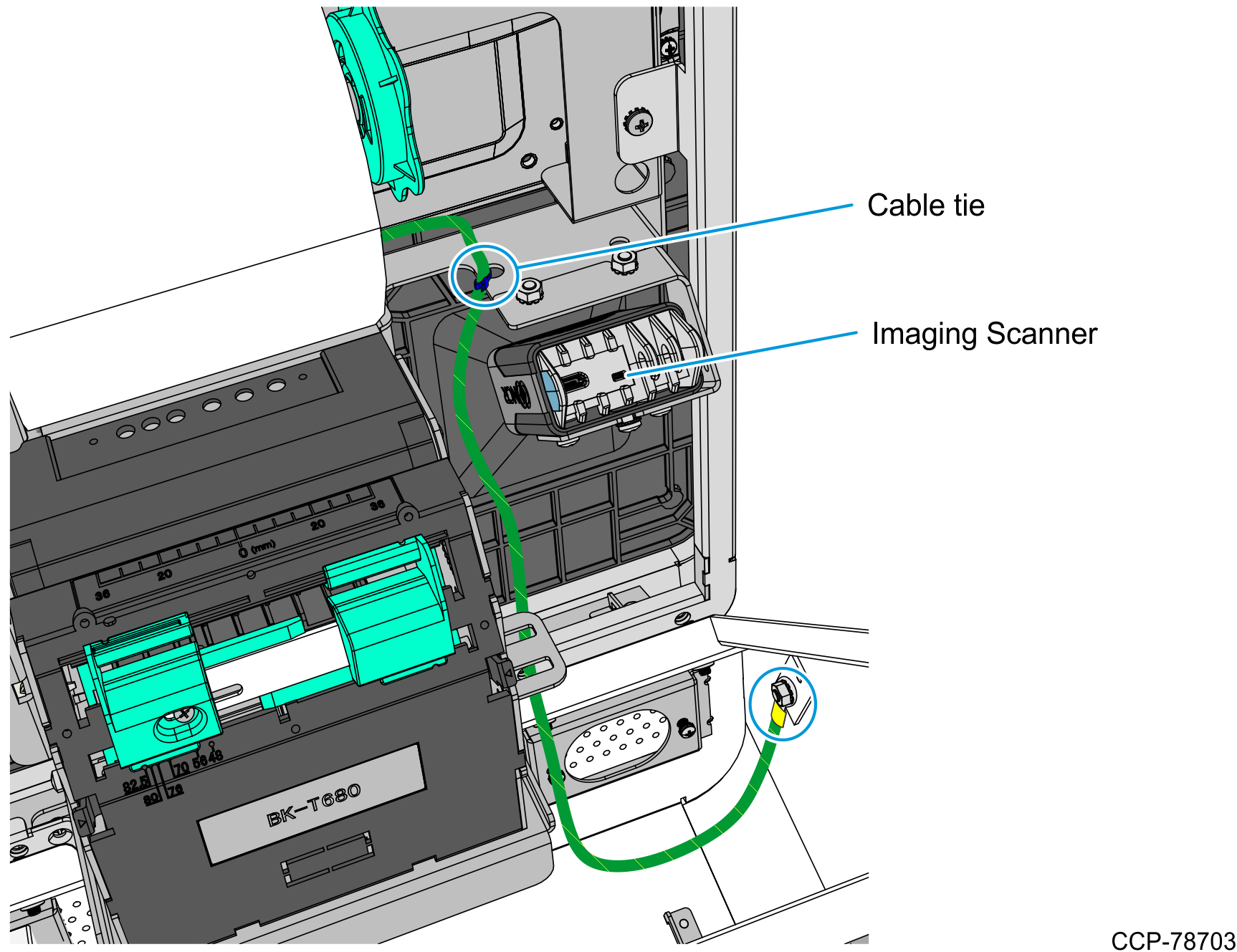

   1. Route the cable beside the Imaging Scanner.
   2. Using a new M4 nut, secure the other end of the Motherboard Grounding Cable to the metal stud on the inner left wall of the bucket.
   3. Use a cable tie to secure the Grounding Cable to the Imaging Scanner.

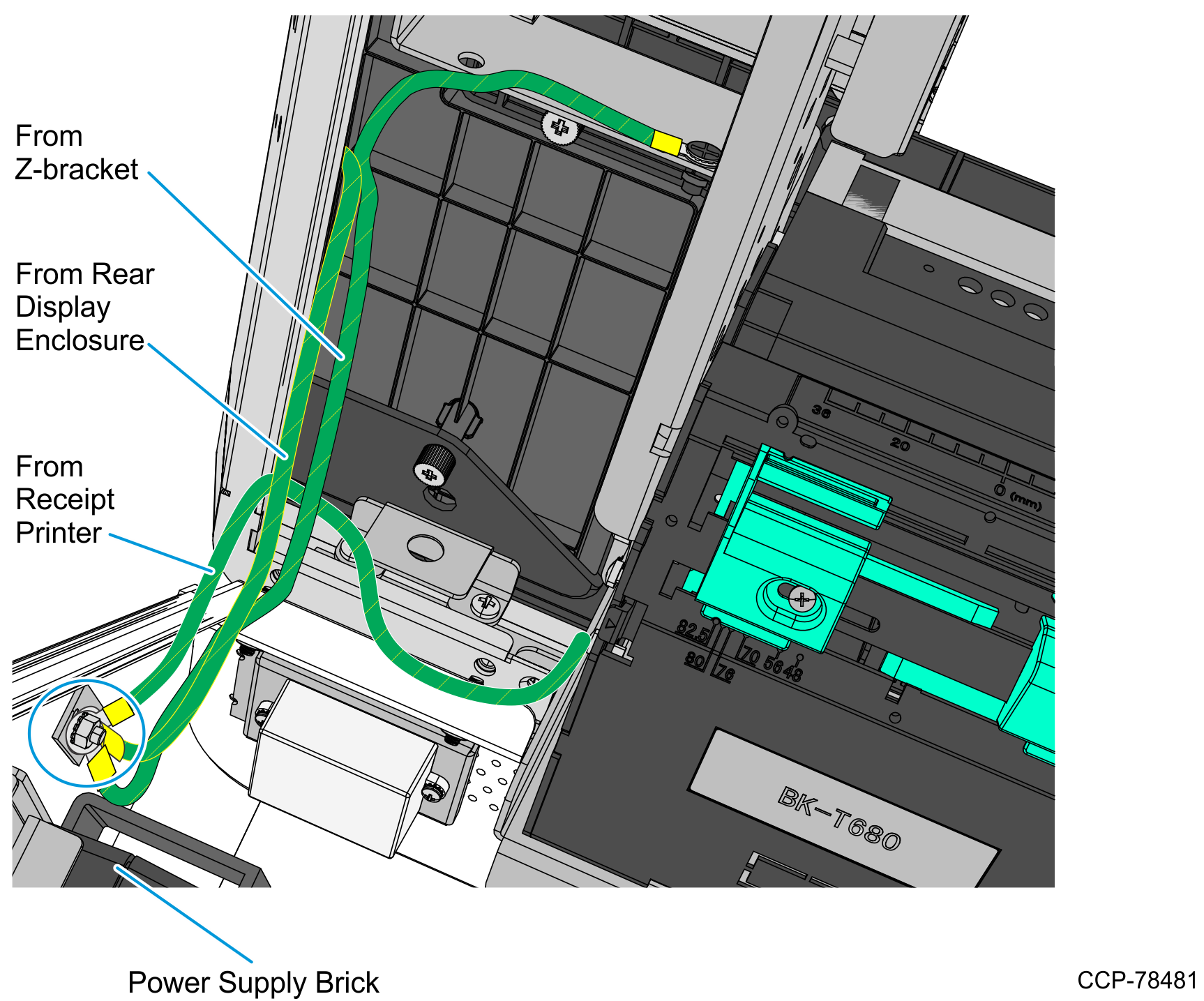

2. Connect the other end of the following grounding cables to the grounding stud on the inner right wall of the bucket, right beside the Power Supply Brick.
   • Z-bracket Grounding Cable
   • Rear Display Enclosure Grounding Cable
   • Receipt Printer Grounding Cable
