Installing the Display Head

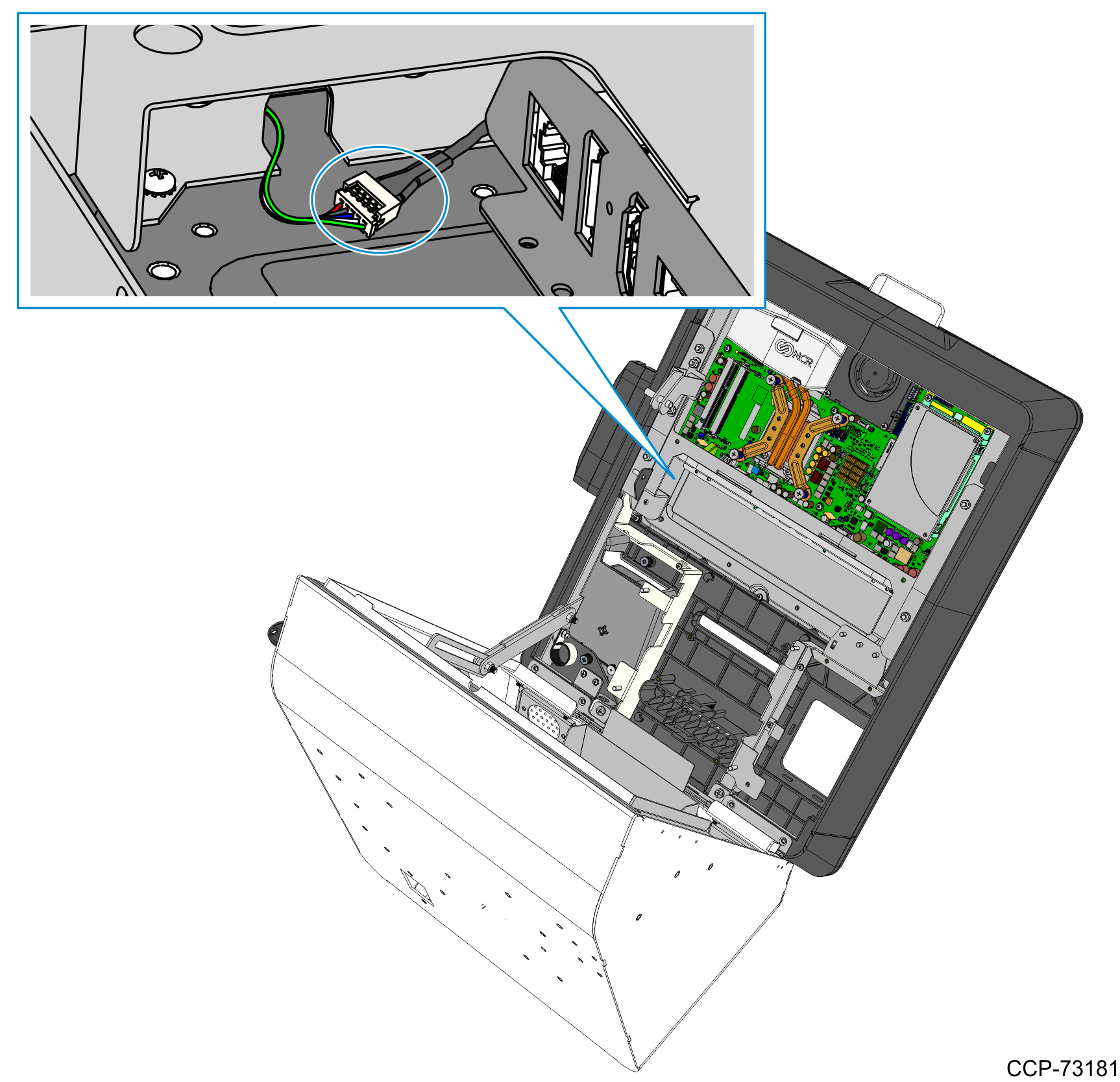

1. Position the Display Head assembly in front of the Display Rear Cover, inserting the MSR cable into the access hole of the Motherboard Bracket.

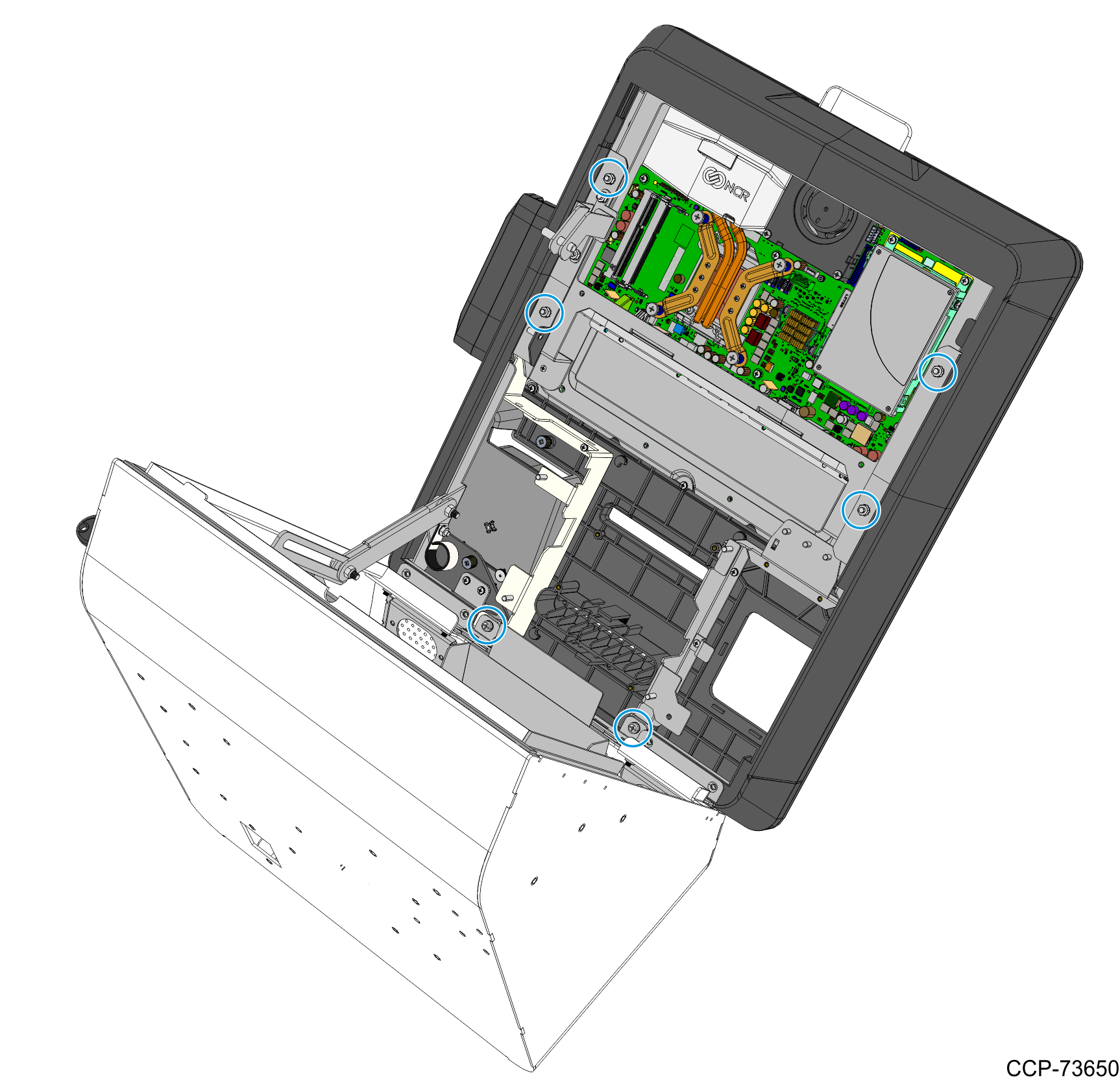

2. Secure the Display Head assembly to the cover using the following:
   • two nuts on the right-hand side bracket
   • two nuts on the left-hand side bracket
   • two screws on the bottom brackets
