Connecting Cables
The NCR SelfServ™ 90 (7709) Kiosk provides labels that show the connectors of the Motherboard and the Adapter. The tables below indicate the type of device or of cable for each connector.

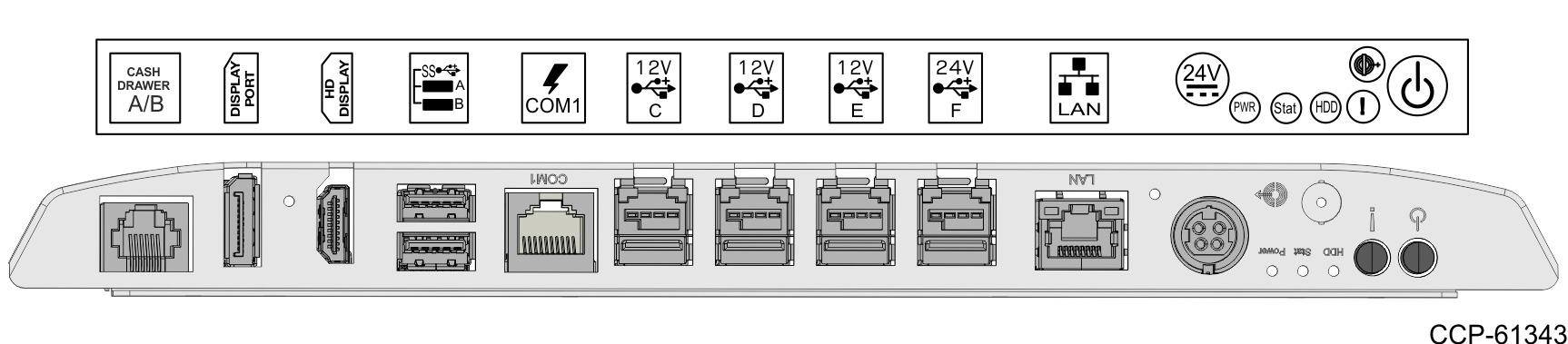

I/O Motherboard
| Connector | Device/Cable |
|---|---|
| COM 1 | Ingenico IPP350 PIN Pad |
| LAN | LAN Ethernet Cable |
| 24V | Power Supply Cable |
| Line Out | Dual Speaker |
| USB A | Sensormatic Controller |
| USB B | Imaging Scanner |
| USB C | Verifone VX805, VX820, or MX915 PIN Pad |
| USB D | Security Scale |
| USB E | I/O Adapter |
| USB F | Receipt Printer |

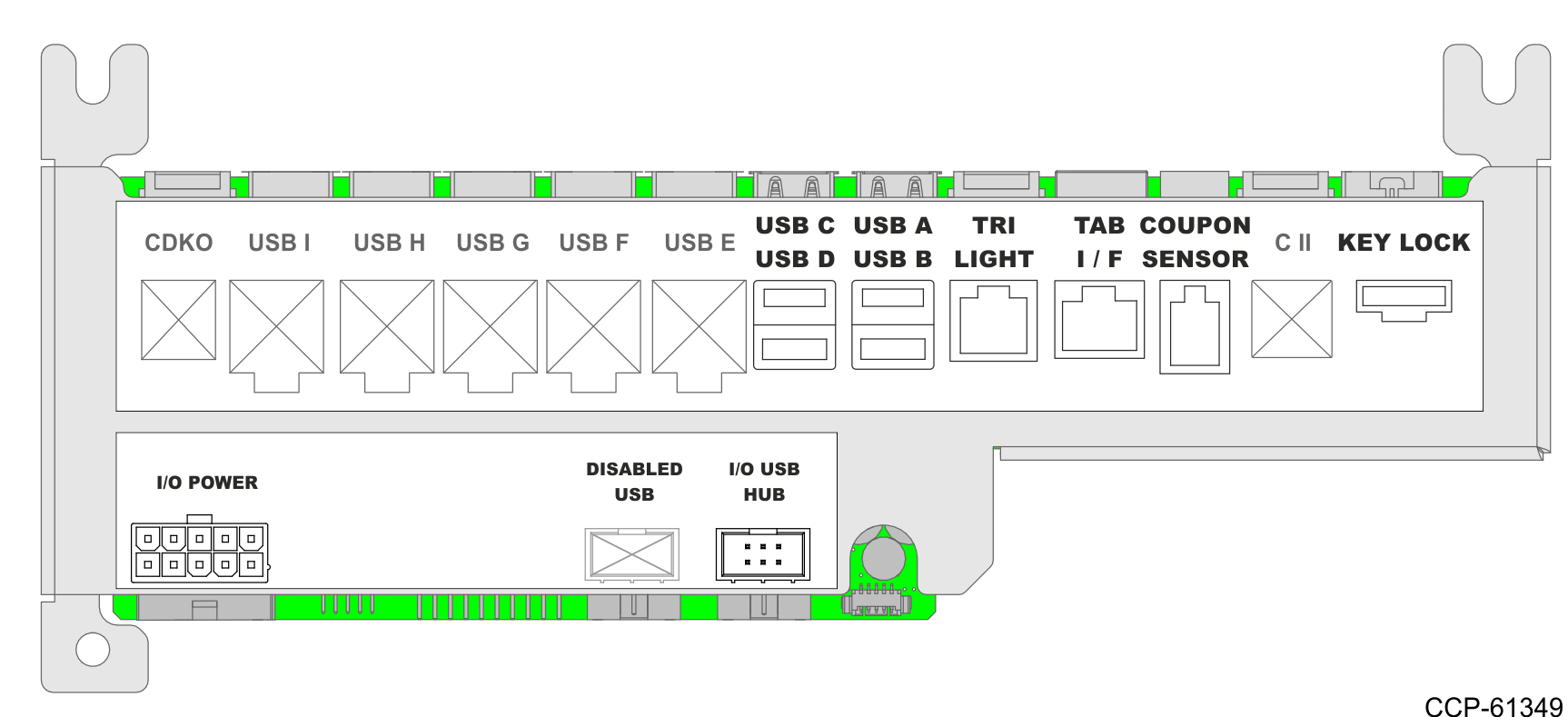

I/O Adapter
| Connector | Device/Cable |
|---|---|
| USB A | Handheld Scanner |
| Tri Light | Indicator Light |
| TAB I/F | Checkpoint Signal Cable |
| Coupon Sensor | Coupon Sensor Cable |
| I/O Power | P2 of the I/O Cable |
| I/O USB Hub | P3 of the I/O Cable |
