7895-K733 0.5 inch (1.2 cm) Bracket

The trim bracket kit (7895-K733 0.5 inch Bracket) can be used to modify the full-size NCR Voyix 7895 to fit into a counter cutout previously occupied by a 12‑inch wide NCR Voyix scanner/scale. The bracket can be mounted on either side of the NCR Voyix 7895, but it is recommended to install it on the downstream side of conveying goods. The bracket adds 0.5 in. (1.2 cm) to the width of the NCR Voyix 7895.

Kit Contents

The kit includes the following:

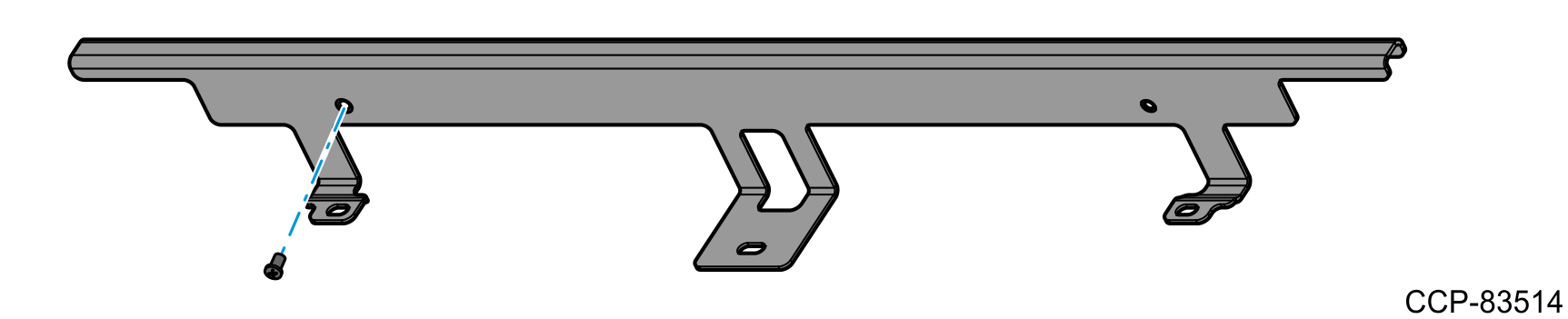

• One metal trim bracket
• One Torx screw with a colored thread lock patch, 0.28 in. (7 mm) in length
