7772-K032 Integrated Power Supply Base Conversion Kit

This kit provides a Base Cover and thumbscrews for the Front Neck Cover when an integrated power supply is installed on the NCR CX7 All-in-One POS (7772) or NCR CX5 All-in-One POS (7773).

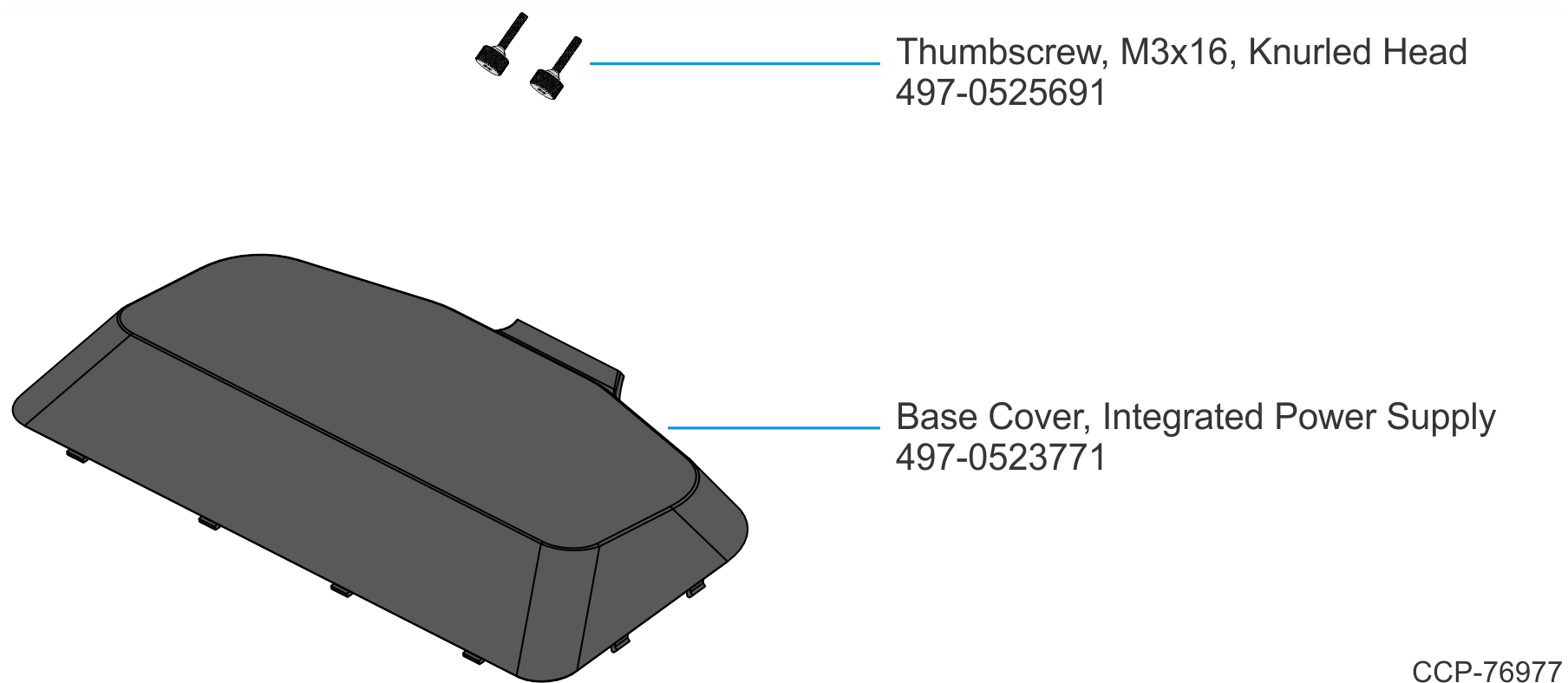

Kit Contents

Installation Procedure

Warning

Disconnect the AC power cord from the AC outlet and wait 30 seconds before servicing the terminal.

  1. Remove the two (2) flat head screws that secure the Front Neck Cover to the Neck.

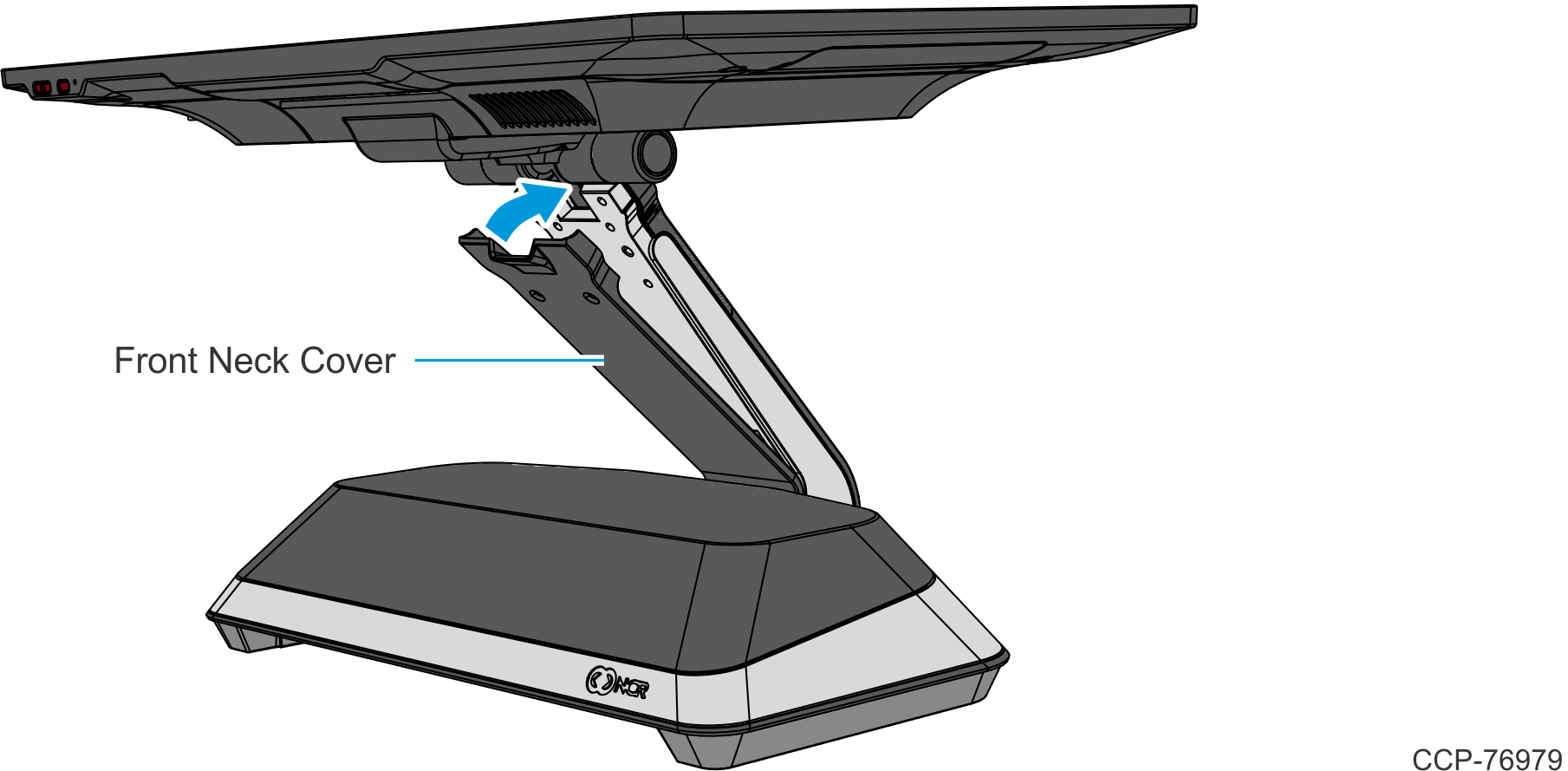

  2. Pivot the Front Neck Cover away from the Neck.

  3. Loosen the thumbscrew on the bottom of the Base.

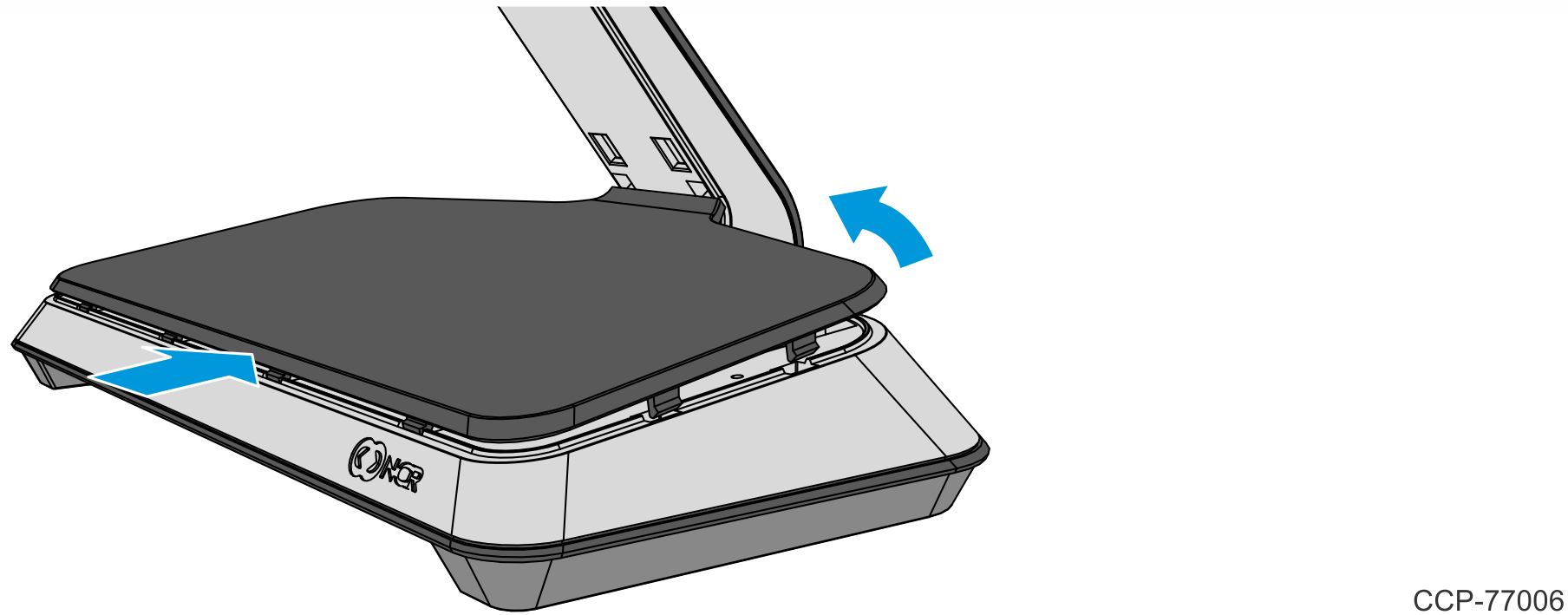

  1. Slightly push the front side of the Base Cover, then pivot the cover open.

  1. Route the AC Cord up through the opening in the Base.

  1. Position the Power Supply in the recess on the Base.

    Note

    The Power Supply Cable comes bundled as shown. Do not modify the bundled cable.

  1. Set the Ferrite Bead in the small recess on the Base and secure the Cable under the Cable Management Hook.

  1. Route the Power Supply Cable.
    1. Route the Power Supply Cable around the Power Supply with the bundled cable in front as shown.

      The Power Supply Cable should be under the AC Cord.

    2. Insert the DC Connector of the Power Supply Cable down through the Base opening.
    3. On the underside of the Base, pull the DC Connector such that the excess cable is under the Base.
  2. Connect the AC Cord to the Power Supply.

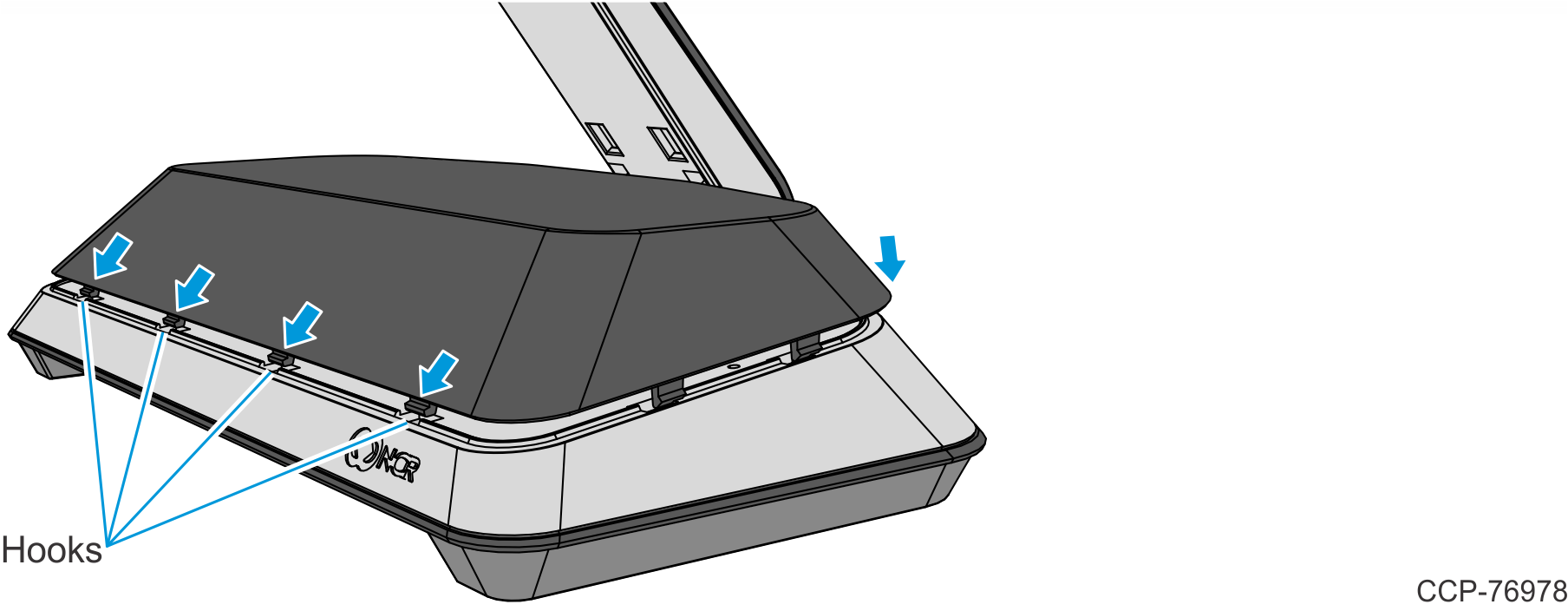

  1. Hook the Base Cover into the Stand, then snap into place.

  1. Insert the DC Connector into the Power In connector on the I/O.
  2. Tighten the thumbscrew on the bottom of the Base to secure the Base Cover.

  3. Attach the Front Neck Cover to the Neck.

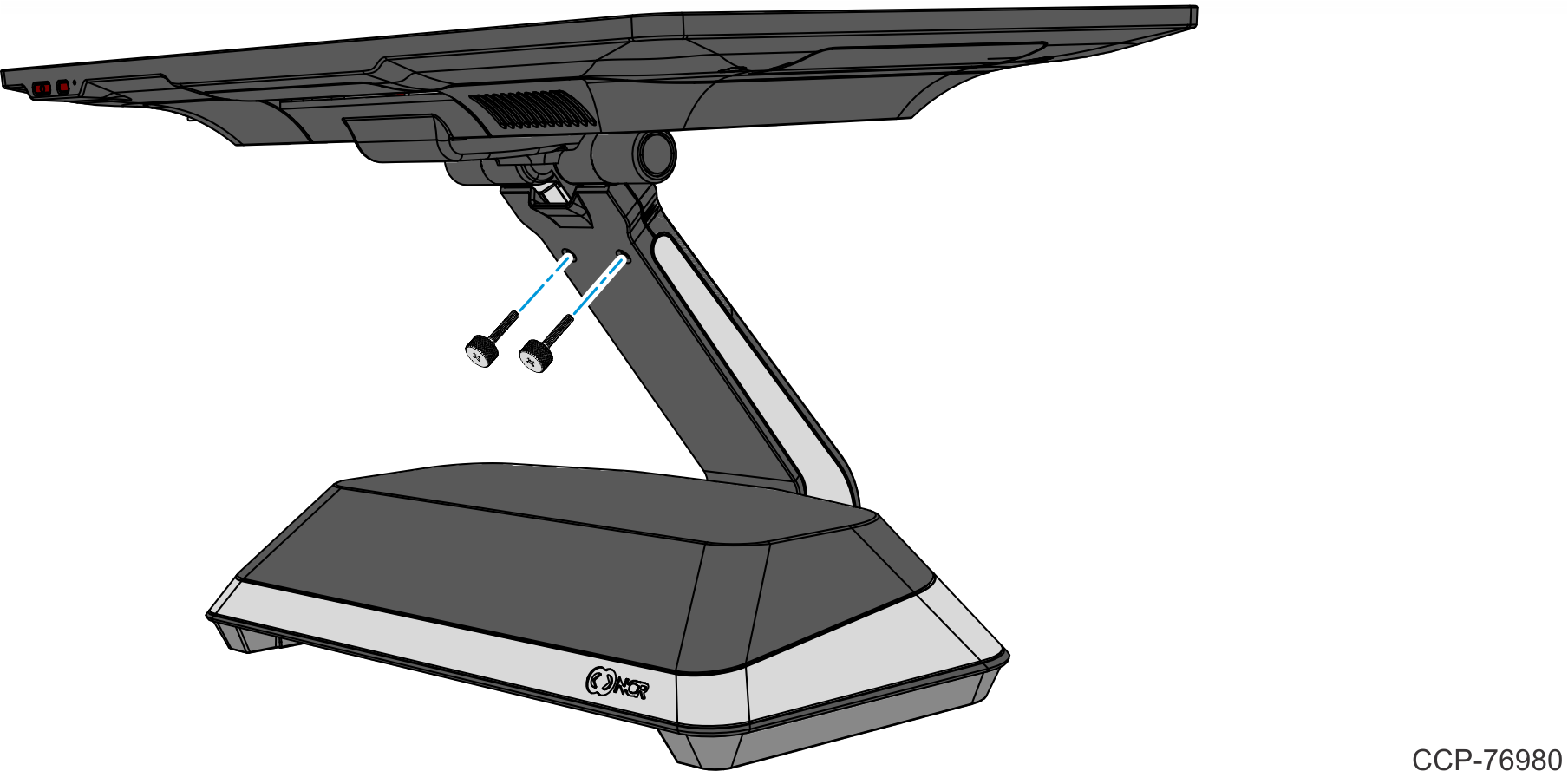

  4. Secure the Front Neck Cover with the two (2) thumbscrews included in the kit.
