7709-K562 Truly Camera, Wide Angle
This publication provides procedures for installing the 7709-K562 Truly Camera, Wide Angle to the NCR Voyix SelfServ™ 90 (7709).
This kit is compatible with 7709 release versions R2.0 and R2.1 only.

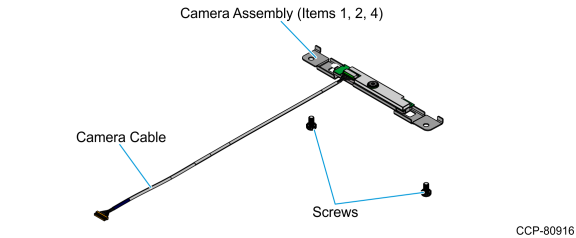

Kit Contents
ImagesKits/K562/CCP-80916
Part Number | Description | |
|---|---|---|
497-0529935 | Truly Camera, Wide Angle | |
1 | 497-0530165 | Bracket, Camera - 2 Deg Angle |
2 | 497-0528735 | Truly Camera Module Model CSE456-U2SF-E |
3 | 497-0505959 | Cable, Camera |
4 | 497-0501317 | Foam, Camera |
5 | 006-8613167 | Screw - SEMS, M3x6mm PH Phillips Machine Screw External-Tooth Washer, Zinc Plate (2 pcs) |
6* | 497‑0480073 | Cable Management Tape |
7* | 497-9999670 | Carton - 555 Series Corrugated with Convolated Foam 6x6x2 |
8* | 006-8616588 | Static Shielding Bag - 5"x10", Open End |
9* | 497-9999639 | Static/ESD Warning Label, 1 3/4 X 2 1/2 |
10* | 006-8623359 | Bag, 2x2 Zip Lock |
11* | 497-0423108 | Instructions-Kit (Reference Sheet) |
12* | 006-8615143 | Cable Tie, 142mm x 3.6mm (10 pcs) |
* Items marked with an asterisk are not called out on the image.
