7709-K534 Datalogic 1500i Scanner (R1.2 and R2.0)
This publication provides procedures for upgrading the NCR Voyix SelfServ™ 90 (7709) R1.2 and R2.0 Imaging Scanner from Honeywell 7580G to Datalogic 1500i.

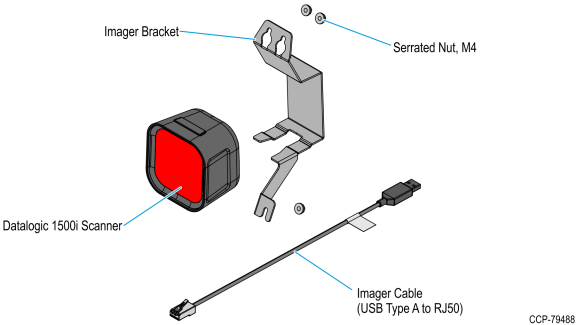

Kit Contents
Part Number | Description |
|---|---|
| 497-0528577 | 7709-K534 Datalogic 1500i Scanner (R1.2 and R2.0) |
| 497-0533445 | Scanner, Datalogic Magellan 1500I With Base Cover, Black, Fw Ver. 3 |
| 497-0528564 | Cable, USB-A To Rj-50, Magellan 1500I Imager, 410mm |
| 497-0530159 | Bracket,1500I Scanner,7709 |
| 009-0007087 | Serrated Nut - Self Locking (M4, 4.2) (3 pcs) |
| * 006-8615143 | Cable Tie, 142Mm X 3.6Mm |
| * 497-0423108 | Instructions-Kit (Reference Sheet) |
* Items marked with an asterisk are not called out on the image.
