7709-K504 Ingenico Lane 5000 PIN Pad Mount
This publication provides procedures for installing the Ingenico Lane 5000 PIN Pad Mount on an NCR Voyix SelfServ™ 90 (7709).
Note
This kit is not compatible with SS90 units that include a pedestal or bagrack arm.
Kit Contents
Part Number | Description |
|---|---|
| 497-0525095 | 7709-K504 Ingenico Lane 5000 PIN Pad Mount |
| 497-0525221 | Pinpad Mount, Spacepole, Ingenico Lane 5000, 7709 |
| * 497-0465037 | Serial Adapter Cable, Rj50 (10-Pin) To Db9, 0.65M |
| * 497-0534587 | Accessory Cables (Power And Data) And Psu, Ingenico Lane 500 |
| * 497-0423108 | Instructions-Kit (Reference Sheet) |

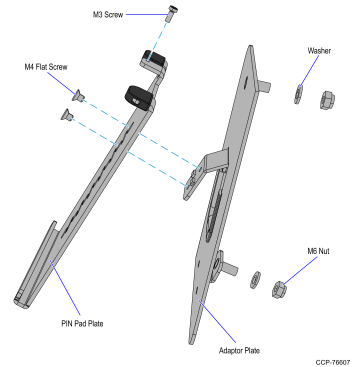

* Items marked with an asterisk are not called out on the image.
