7709-K440 Two Shelves with Left-Hand and Right-Hand Stiffener, Wide (Dark White)
This publication provides procedures for installing the 7709-K440 Two Shelves with Left-Hand and Right-Hand Stiffener, Wide (Dark White) on either of the following units:
- NCR Voyix SelfServ 90 (7709)
- NCR Voyix SelfServ XK22 (2246)

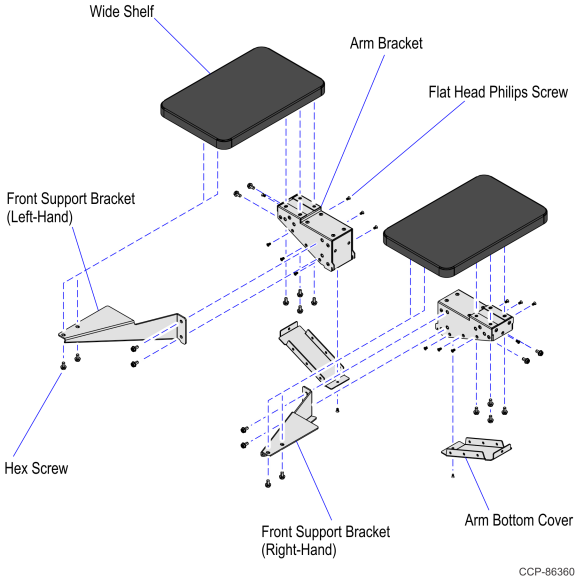

Kit Contents
Part Number | Description |
|---|---|
| 497-0539448 | 7709-K440 Two Shelves with Left-Hand and Right-Hand Stiffener, Wide (Dark White) |
| 006-8613226 | Screw - Metric Flat Head Phillips Machine Screw Zinc-Plated Stl, M4 Size, 8Mm Length, .7Mm Pitch (16 pcs) |
| 006-8628739 | Screw Hex M6 X 12 Mc Comb (20 pcs) |
| 497-0506020 | Shelf, Wide (2 pcs) |
| 795-0305201 | Bracket, Arm, Shelf (Dark White) (2 pcs) |
| 795-0305301 | Cover, Bottom, Arm (Dark White) (2 pcs) |
| 795-0305501 | Bracket, Front Support, Shelf, LH (Dark White) |
| 795-0305601 | Bracket, Front Support, Shelf, RH (Dark White) |
| * 795-0284101 | SS90 Hole Cover Label - Dark White |
* Items marked with an asterisk are not called out on the image.
