7709-K430 Pedestal (Dark White Color & Impact Mid Silver)
This kit provides components to add a pedestal kit to the NCR Voyix SelfServ™ 90 (7709).
The pedestal must be fastened to the floor to prevent it from being moved or knocked over.

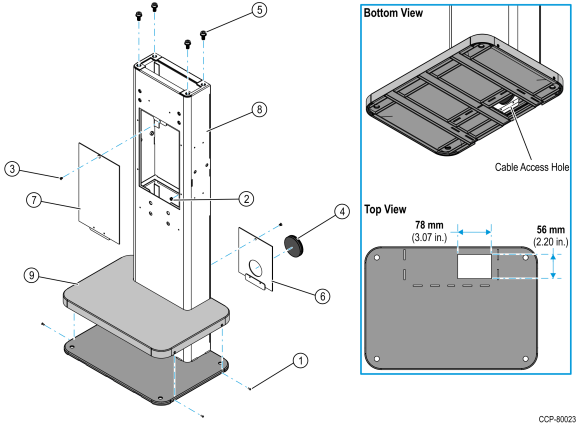

The floor construction determines the type of anchors to use. The anchors are not shipped with the kiosk and must be obtained locally. There are four Anchor Holes in the Pedestal Base with dimensions shown in the illustration below.
The anchors must not extend up above the top of the Pedestal Base more than 12.7 mm (0.5 in.).
For more information on preparing the installation site of the Kiosk, see the NCR SelfServ 90 (7709) Site Preparation Guide.
Kit Contents
Part Number | Description | |
|---|---|---|
497‑0529971 | Kit - Pedestal (Dark White Color & Impact Mid Silver) | |
1 | 006‑8604919 | Screw - M3 X 0.5, 8mm, Phillips Flat Zinc Plated (4 pcs) |
2 | 006-8611753 | Nut, Kep, M4 |
3 | 006-8622588 | M4 X 6mm Length, Flat Head, Zinc Plated (2 pcs) |
4 | 006-8624070 | Grommet, 50mm Cut Dia, 41mm Inner Dia |
5 | 006-8624161 | Screw - M8 X 16, Socket Cap, Flanged, Serrated (4 pcs) |
6 | 795-0215301 | Door, Back, Pedestal (Dark White) |
7 | 795-0215101 | Door, Front, Pedestal (Dark White) |
8 | 795-0290301 | Weldment, Column, Pedestal, (Dark White) |
9 | 795-0215002 | Cover, Base, Pedestal (Impact Mid Silver) |
10* | 795-0284101 | SS90 Hole Cover Label - Dark White |
11* | 497-0505842 | Paint Spec - Dark White Color |
12* | 497-0508034 | Paint Specifications For Powder Coat Mid-Silver |
13* | 497-0505844 | Self Serv 90 London Kiosk Paint Color Cross Reference Document |
14* | 497-0423108 | Instructions-Kit (Reference Sheet) |
15* | 497-0510631 | Instruction Sheet To Install 795-0231600/1699 - SS90 Hole Cover |
* Items marked with an asterisk are not called out on the image.
