7707-K906 E-Money Terminal Mount (Ingenico)
This publication provides procedures for installing an E-Money Terminal Mount for an Ingenico E-Money Terminal on an NCR SelfServ™ Checkout (7707) unit.
Note
The Ingenico E-Money Terminal is supplied by the customer and the 7360-K426 Ingenico PIN pad Mount is ordered separately.

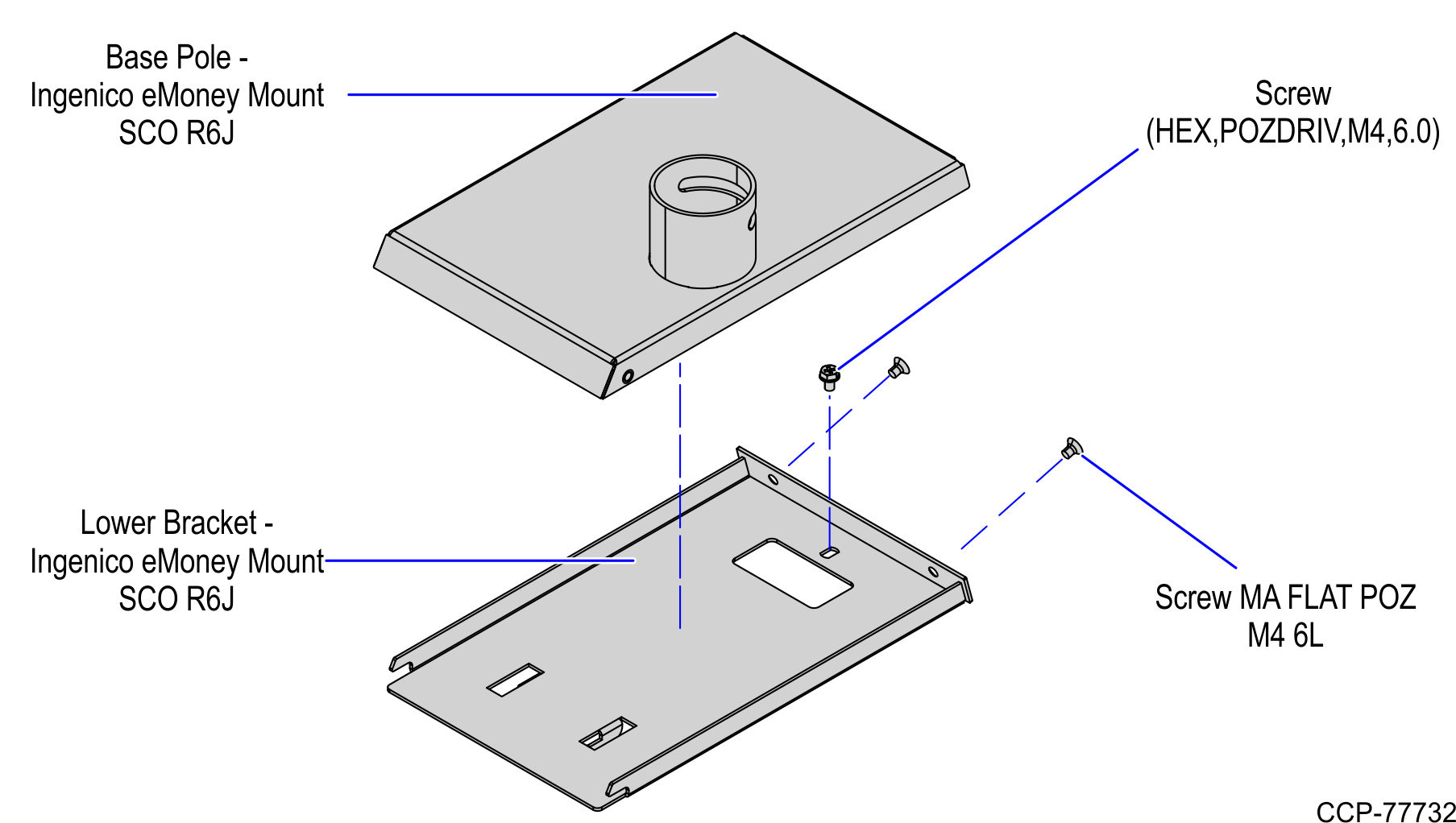

Kit Contents
Part Number | Description | |
---|---|---|
497-0526372 | KIT - Ingenico eMoney Mount, SCO R6J | |
497-0526373 | Base Pole - Ingenico eMoney Mount, SCO R6J | |
497-0526374 | Lower Bracket - Ingenico eMoney Mount, SCO R6J | |
007-7022120 | Screw MA FLAT POZ M4 6L (2 pcs) | |
009-0006592 | Screws (HEX,POZDRIV,M4,6.0) |
* Items marked with an asterisk are not called out on the image.
