Installing Japan Goods Holder on Japan Bag Rack

To install the Japan Goods Holder on the Japan Bag Rack, follow these steps:

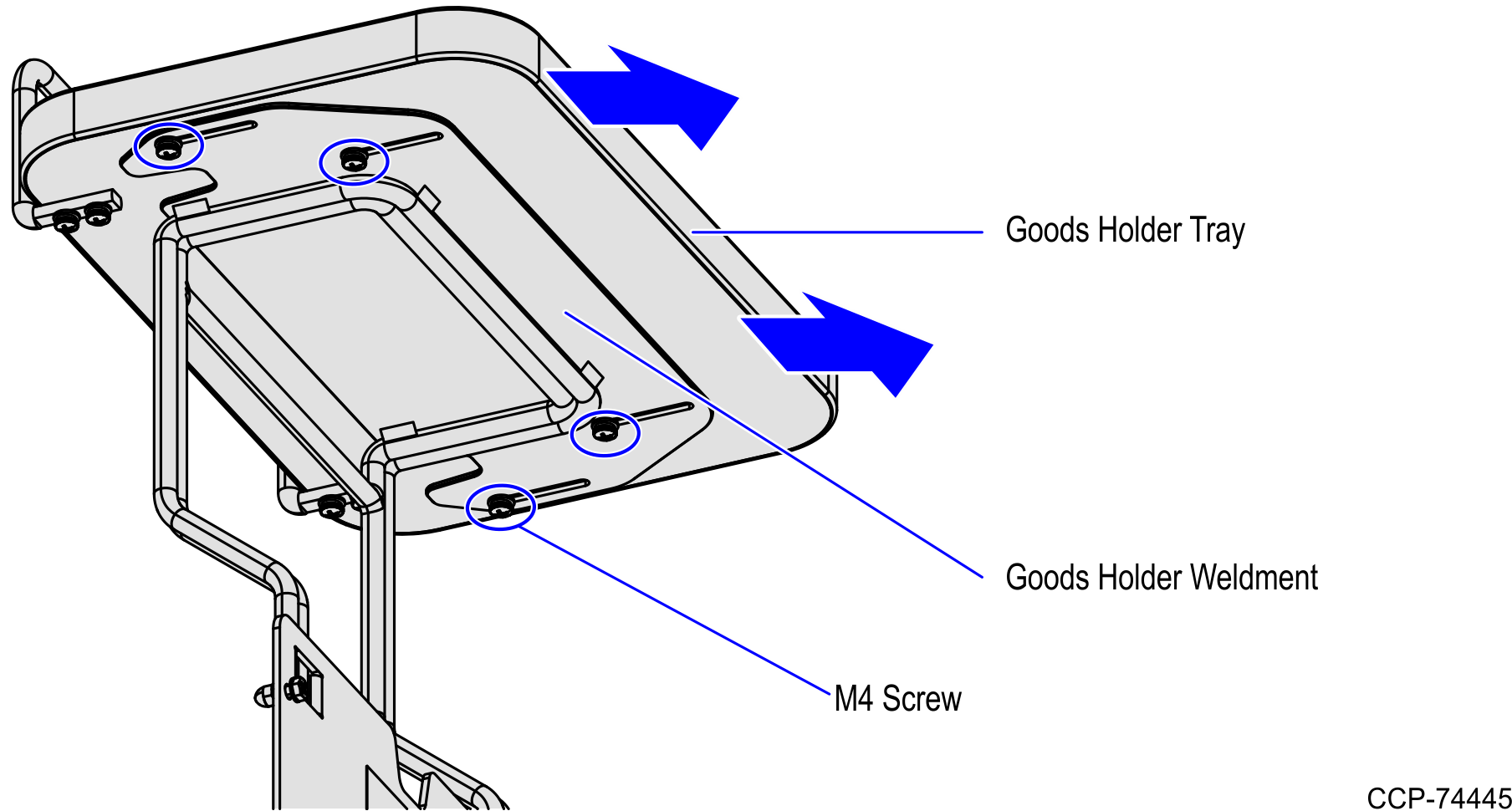

1. Loosen four M4 screws, and then pull the Goods Holder Tray forward.

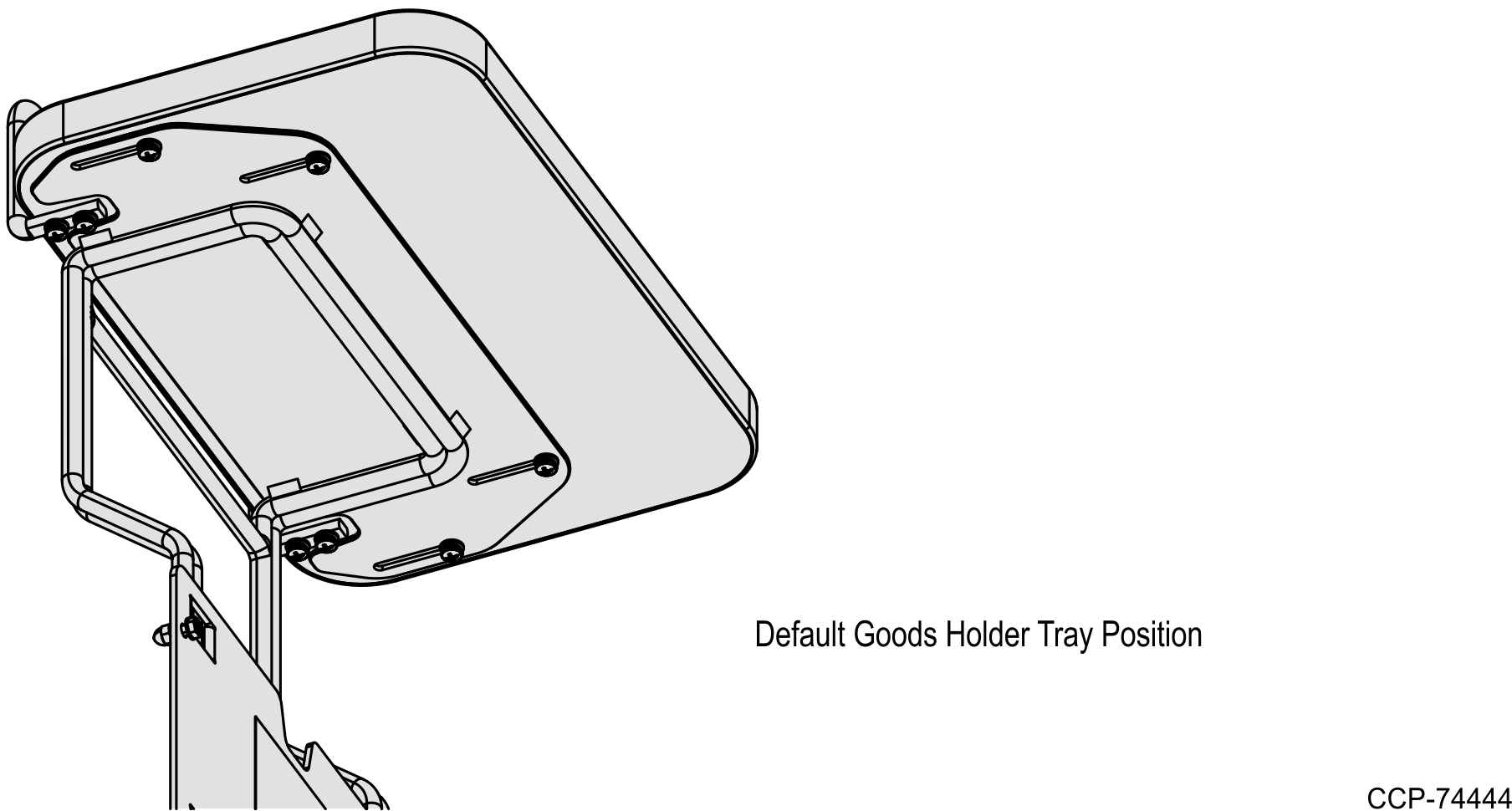

2. The default Goods Holder Tray configuration should be fully extended forward as shown in the image below.



3. Tighten all four screws to secure the Goods Holder Tray to the Goods Holder Weldment.

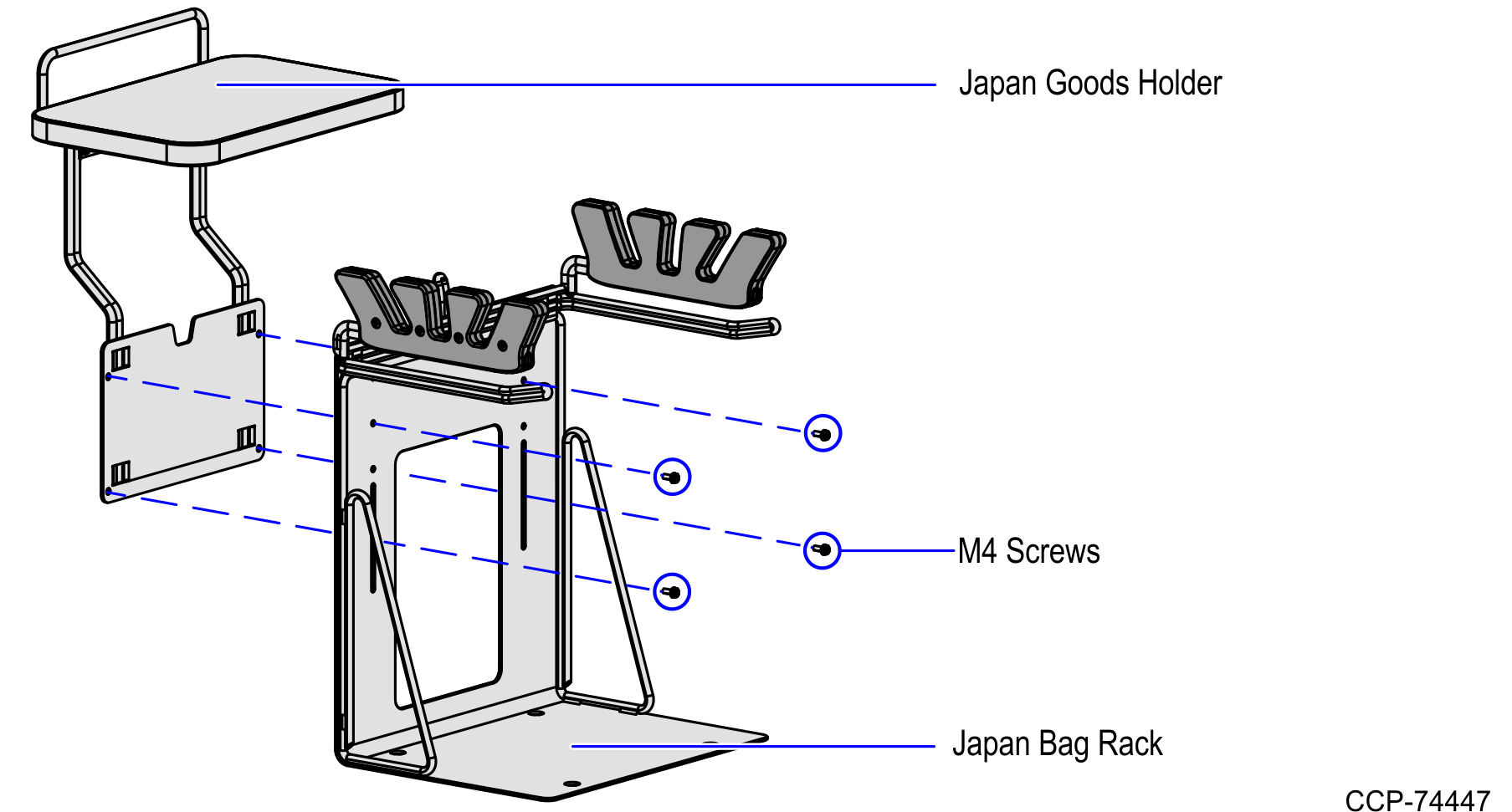

4. Attach the Goods Holder to the Japan Bag Rack using four M4 screws.



   Note

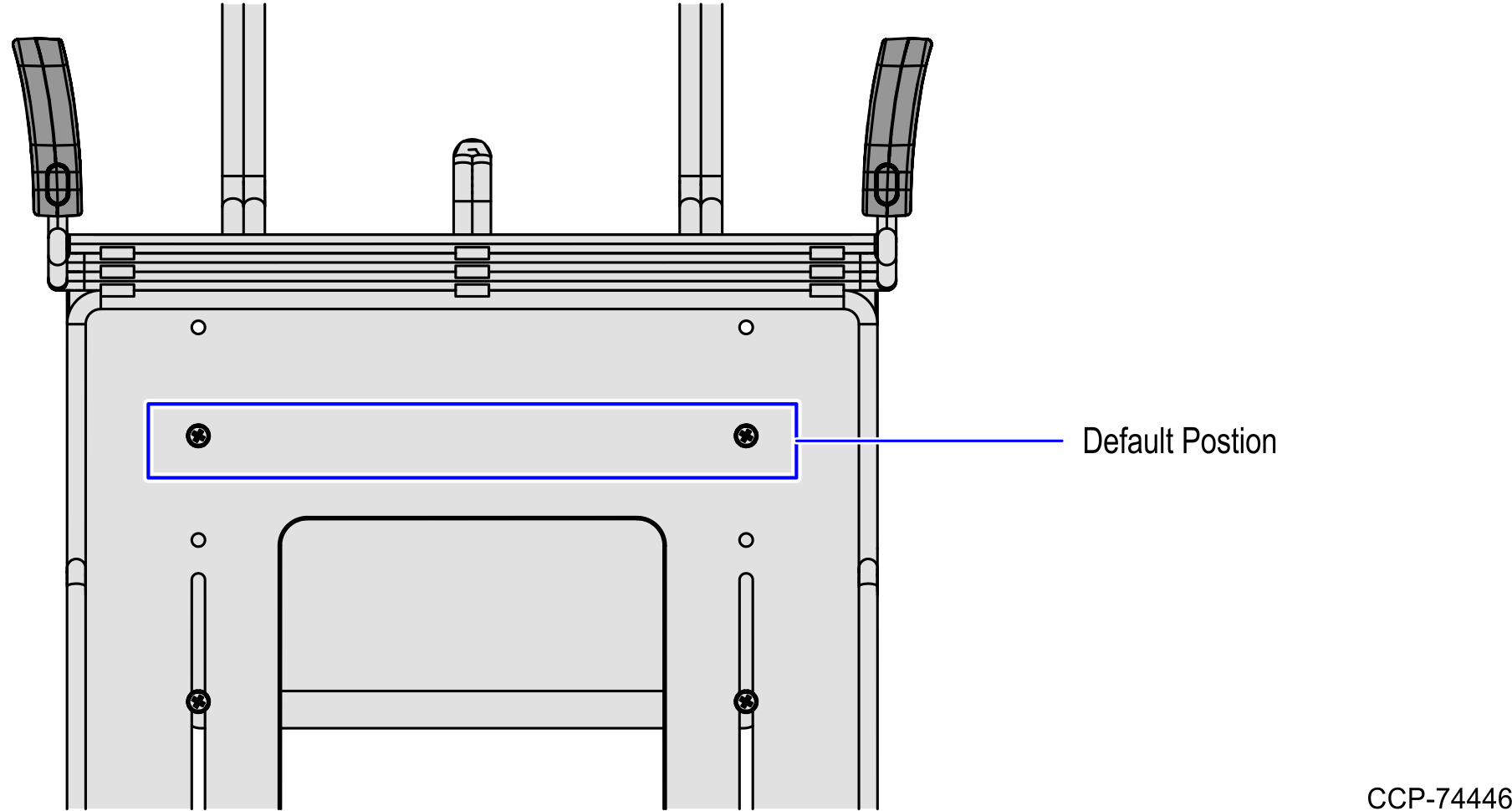

   The Goods Holder height can be adjusted in three positions, the default position should be set at the middle as shown in the image below.

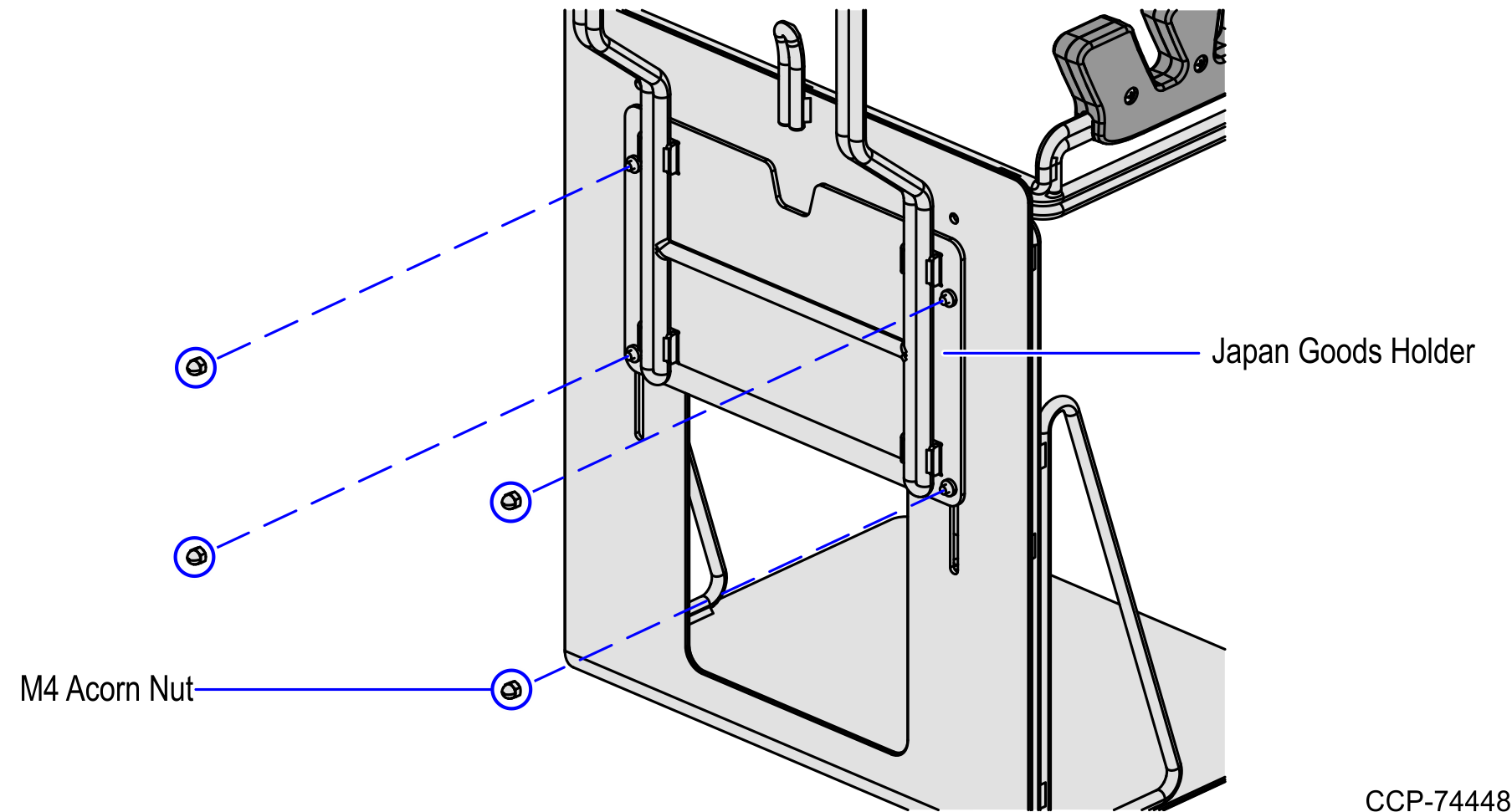

5. Secure the Goods Holder to the Bag Rack using four M4 acorn nuts as shown in the image below.



6. If the Japan Bag Rack is not yet installed on the Scale Tray, install the Bag Rack assembly on the Scale Tray. For more information, refer to Installing Japan Bag Rack Assembly.
