7707-K261 Handheld Scanner Holster
The Handheld Scanner Holster holds the Handheld Scanner. It is attached to a bracket, which can be installed on either side of the Terminal Display depending on the orientation of the NCR SelfServ™ Checkout (7707) unit. This publication provides procedures for installing a Handheld Scanner Holster on an NCR SelfServ™ Checkout (7707) unit.

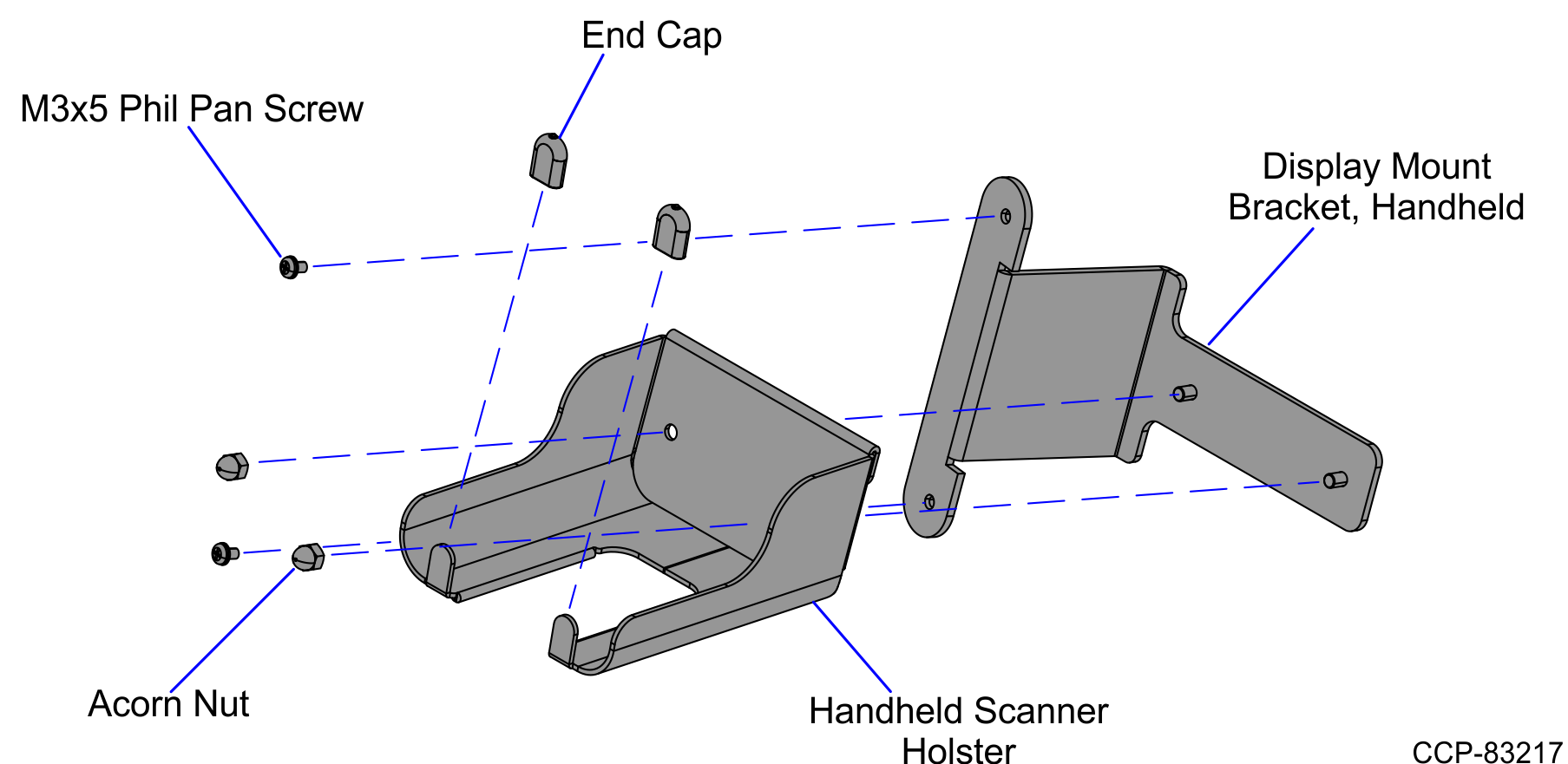

Kit Contents
| Part Number | Description | |
|---|---|---|
| 497-0532993 | 7707-K261 Handheld Scanner Holster Kit | |
| 006-8611658 | Screw,M3 x 5, SEMS, PHIL, PAN, STL, Z (2 pcs) | |
| 006-8624472 | Acorn Nut – M4 x 0.7 mm, 7 mm Width, 8 mm Height - Black Oxide Finish (2 pcs) | |
| 006-8628477 | End Cap - Handheld Holster (2 pcs) | |
| 497-0520400 | Bracket - Handheld, Display Mount | |
| 497-0531681 | Holster, Scanner, Handheld | |
* Items marked with an asterisk are not called out on the image.
