7707-K201 R6-Japan Camera
The R6-Japan Camera is used to capture customers and the notes they enter into the Note Recycler — in one view. This publication provides procedures for installing a Camera to the Tri–Light/Lane Light Pole of an NCR SelfServ™ Checkout (7707) unit.

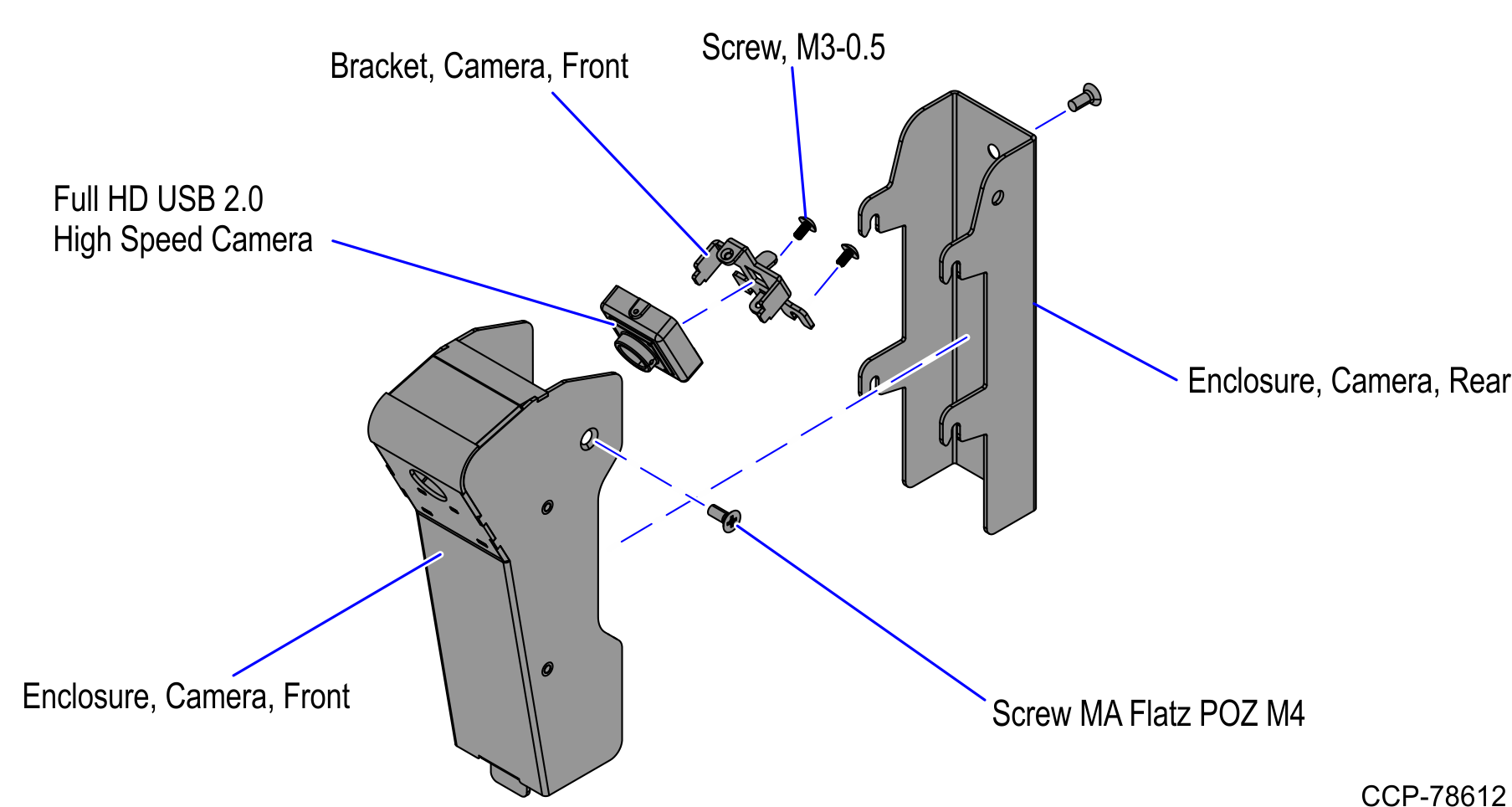

Kit Contents
| Part Number | Description | |
|---|---|---|
| 497-0527875 | 7707-K201 Camera Kit, D-Vitec | |
| 497-0521398 | Bracket, Camera, Front, 7707 | |
| 795-0267702 | Enclosure, Camera, Front, 7707 (Mid Silver) | |
| 795-0261302 | Enclosure, Camera, Rear, 7707 (Mid Silver) | |
| 497-0520372 | Full HD USB 2.0 High Speed Camera | |
| 007-7022122 | Screw MA Flat POZ M4 10L (2 pcs) | |
| 006-8624619 | Screw, M3-0.5 Pitch x 6 mm, Truss Head, Phillips, Zinc, Nylock Patch (2 pcs) | |
* Items marked with an asterisk are not called out on the image.
