7707-K063 No Camera Tri-Light/Lane Light Assembly
The Tri-Light/Lane Light includes two lighting devices — a Tri-Light and a Lane light. The Tri-Light provides a tri-color LED (Red/Amber/Green) to signal or request store personnel intervention. The Lane Light indicates whether the lane is open or close. This publication provides procedures for installing a No Camera Tri-Light/Lane Light Assembly to an NCR SelfServ™ Checkout (7707).

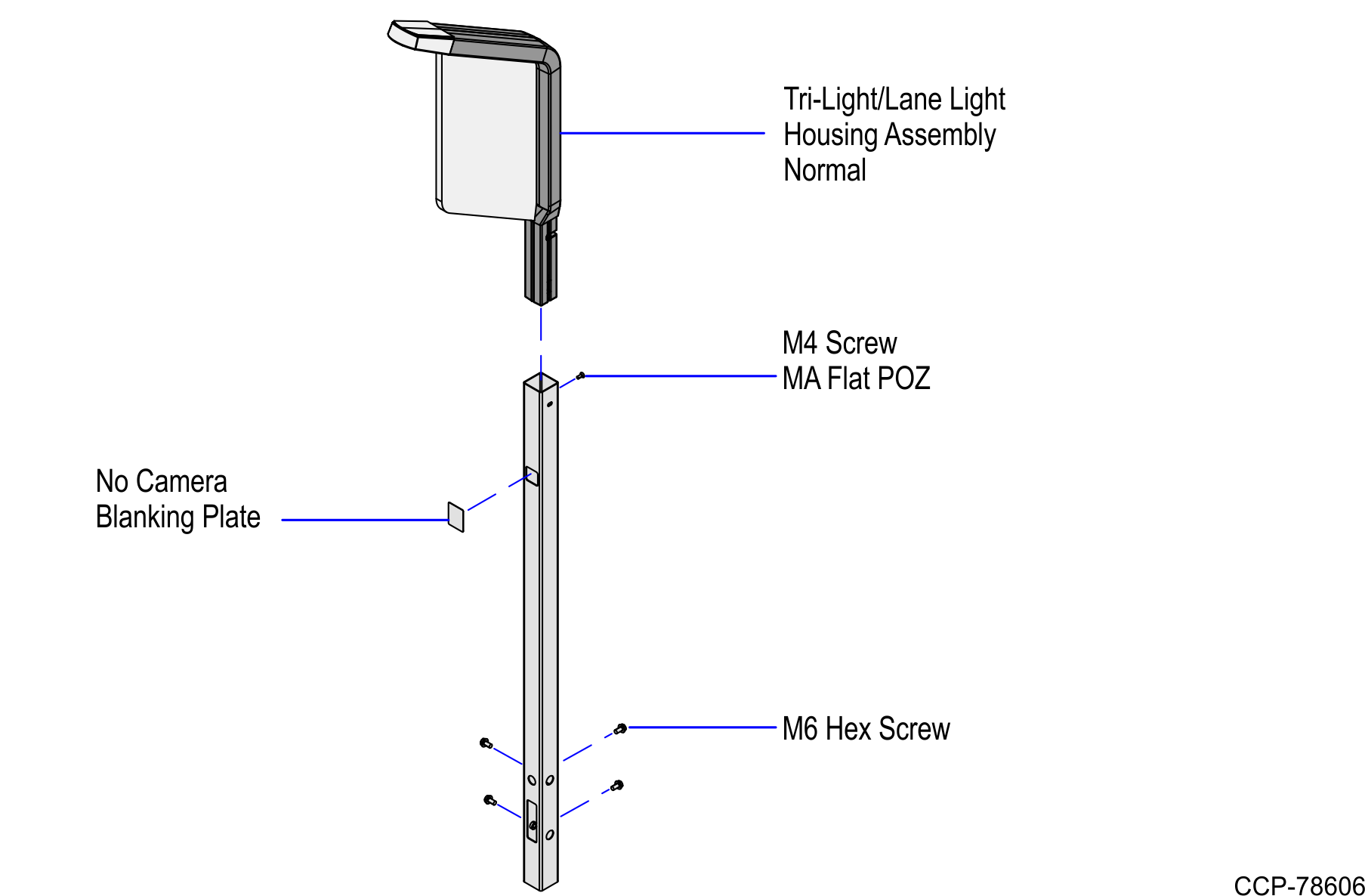

Kit Contents
| Part Number | Description | |
|---|---|---|
| 497-0527873 | 7707-K063 R6-Japan Tri-Light/Lane Light Assembly Kit | |
| 497-0525777 | Assembly - Tri-Light/Lane Light Housing, Normal | |
| * 497-0521822 | Cable - R6 Tri-Light Adapter With Inline Resistor | |
| * 497-0510795 | Cable - Tri-Light/Lane Light Extender, Long Pole, 140 in | |
| 497-0522836 | No Camera Blanking Plate | |
| 009-0006599 | Screw Hex M6 x 12 MC Comb (4 pcs) | |
| 007-7022122 | Screw MA Flat POZ M4 10L (2 pcs) | |
| 795-0253202 | Weldment - Pole, Tri-Light (Impact Mid Silver) | |
* Items marked with an asterisk are not called out on the image.
