Installing the Wireless Antenna Module

To install the Wireless Antenna Module, follow these steps:

Note

For more information about the wireless card and antenna, refer to the RealPOS XR7 (7702) POS User Documentation.

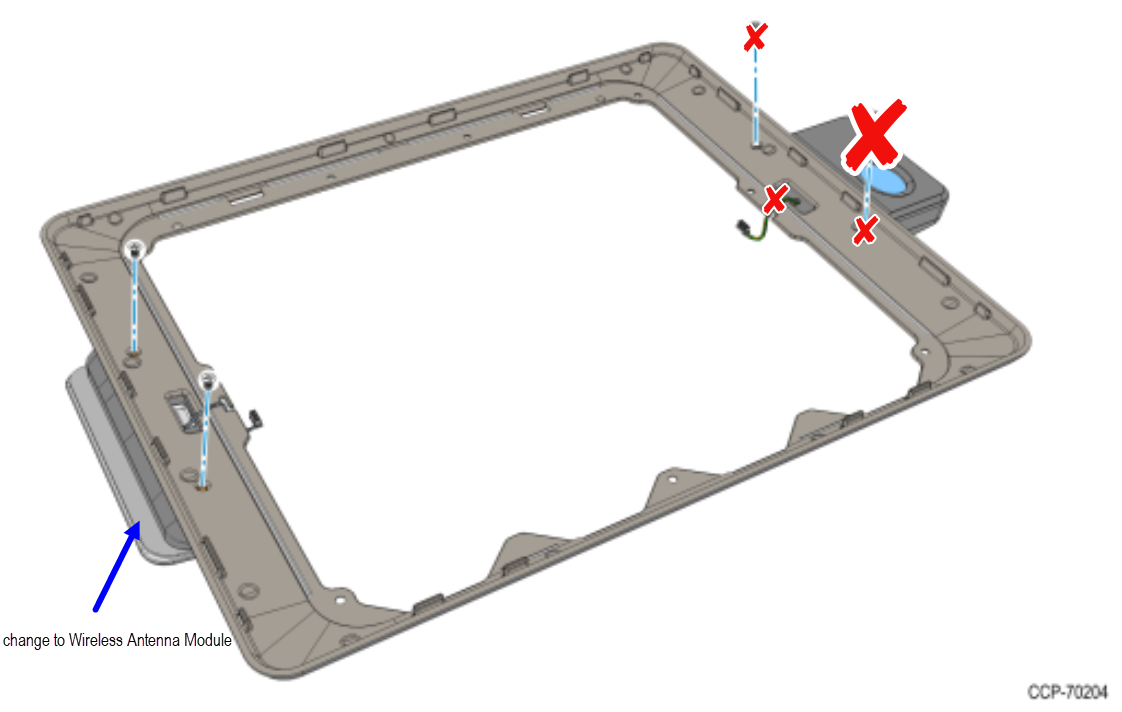

  1. Secure the Wireless Antenna Module to the Display Collar using two (2) screws, as shown in the image below.

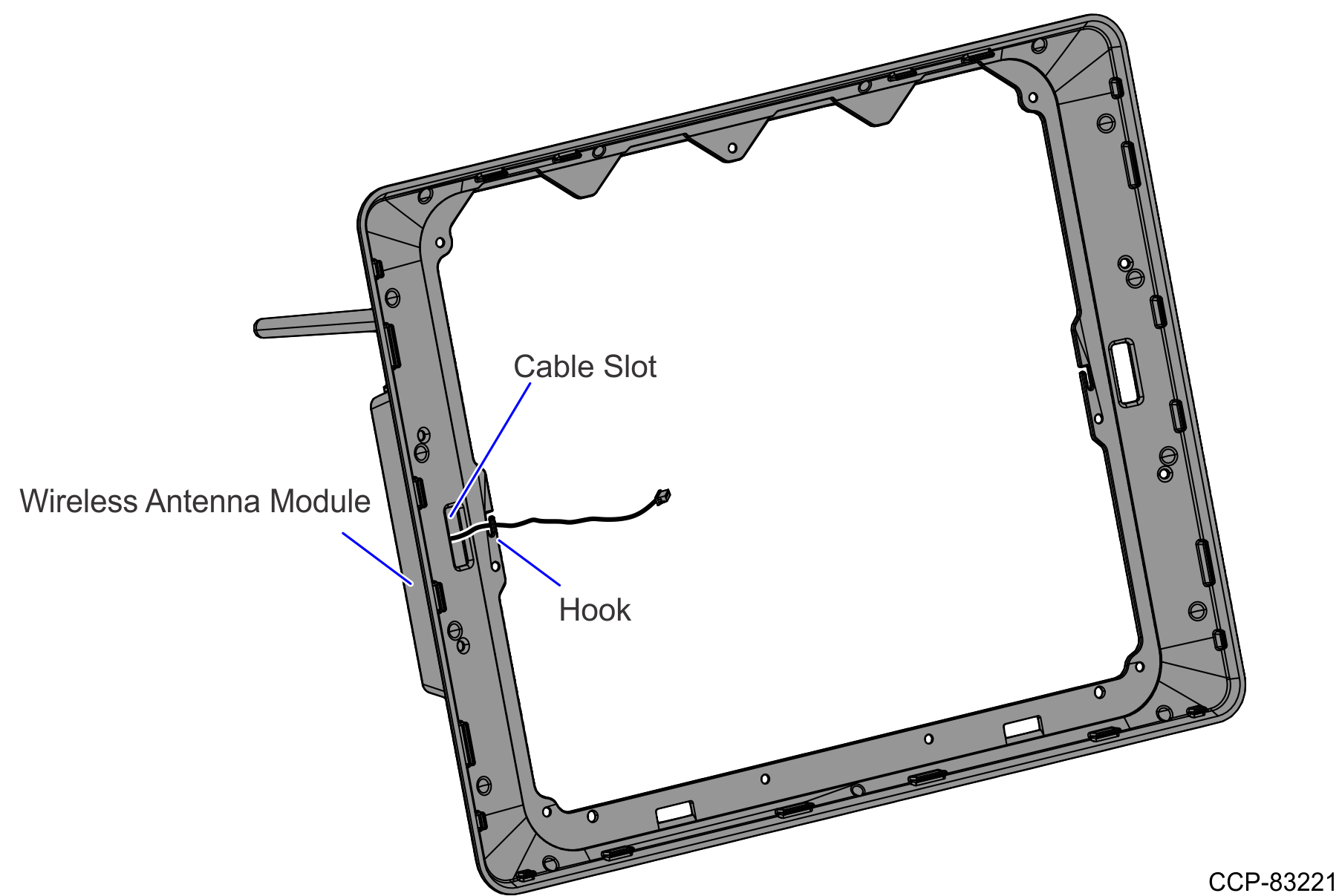

  2. Route the cables through the cable management feature on the Display Collar, as shown in the image below.

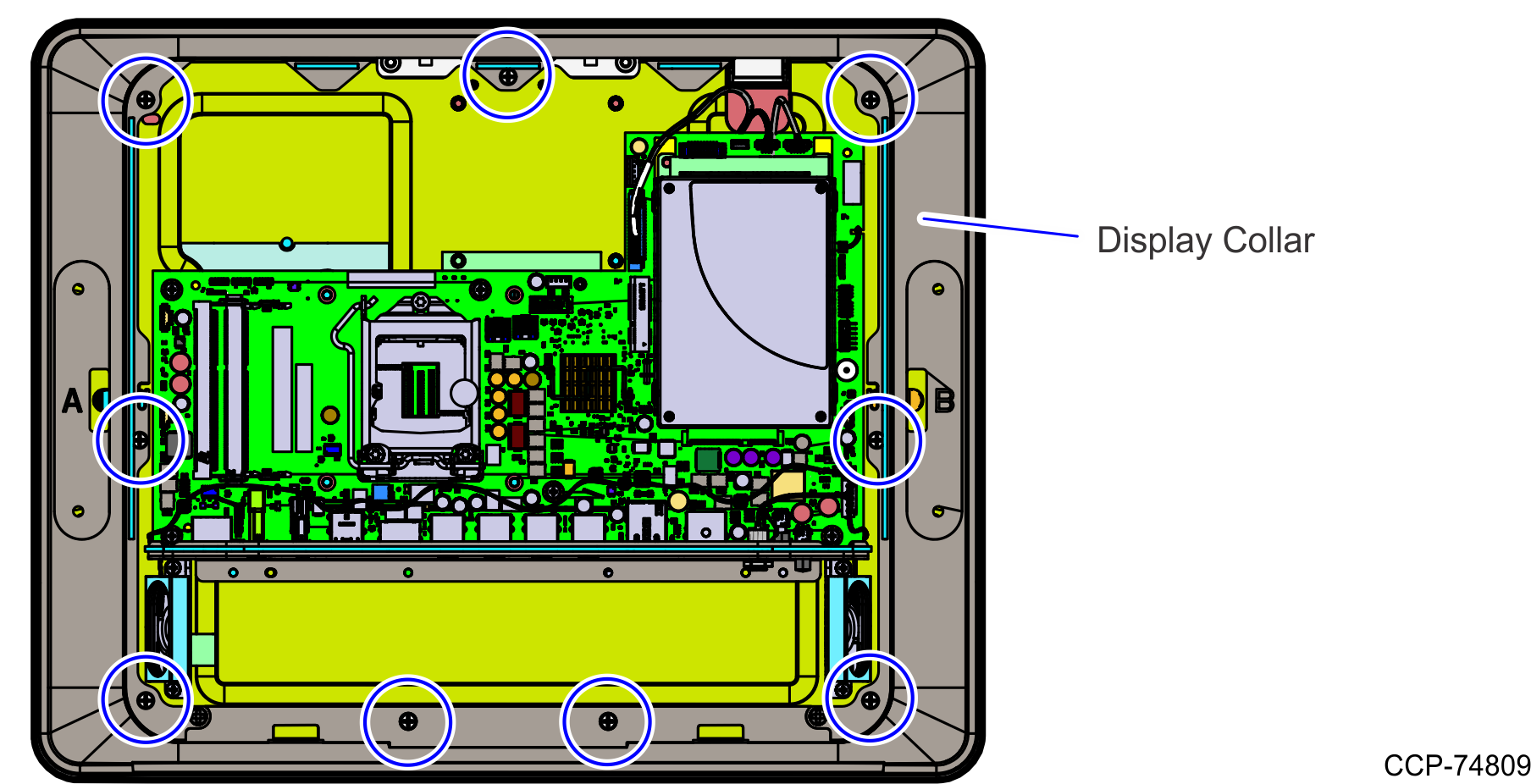

  3. Secure the Display Collar on the Terminal Display using nine (9) screws, as shown in the image below.

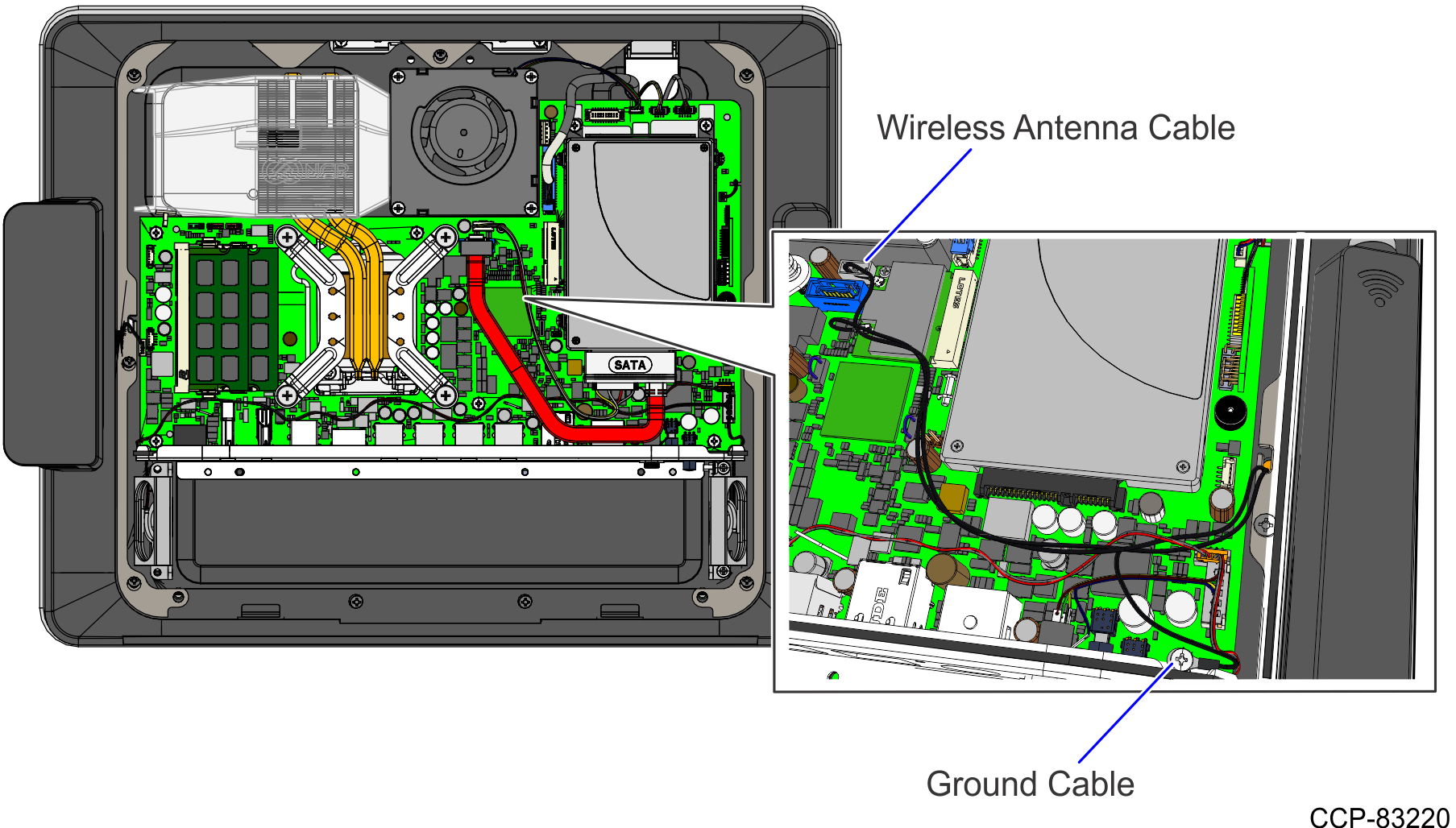

  4. Connect the Ground and Wireless Antenna cables to the board, as shown in the image below.

  5. Install the Terminal Display Rear Cover, if necessary. For more information, refer to Installing the Terminal Display Rear Cover.
