Removing the Note Recycler (Glory RAD-375)

To remove the Note Recycler (Glory RAD-375), follow these steps:

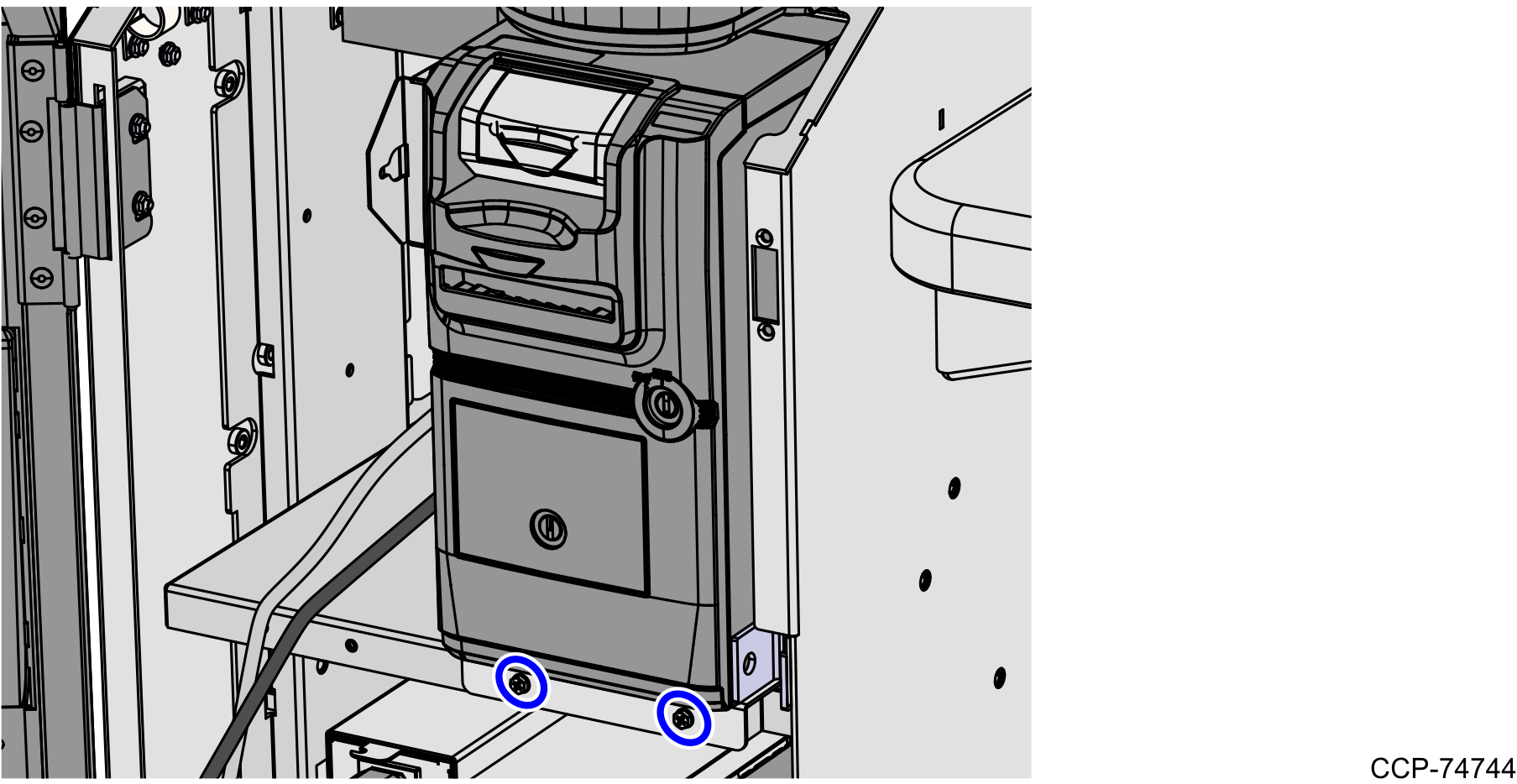

1. Remove two screws securing the Note Recycler (Glory RAD-375) to the Note Recycler bracket as shown in the image below.



2. Rack out the Note Recycler from the cabinet as shown in the image below.
3. Use a flat surface with an approximate height of 40 cm and place it up to 13 cm from the edge of the Cabinet.
   Caution

   For safety reasons, NCR recommends placing the Note Recycler on a flat surface to hold the weight. The Note Recycler (Glory RAD-375) weighs approximately 20 kgs.
